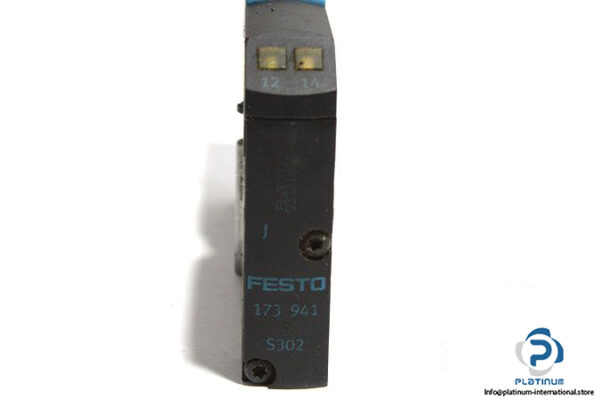

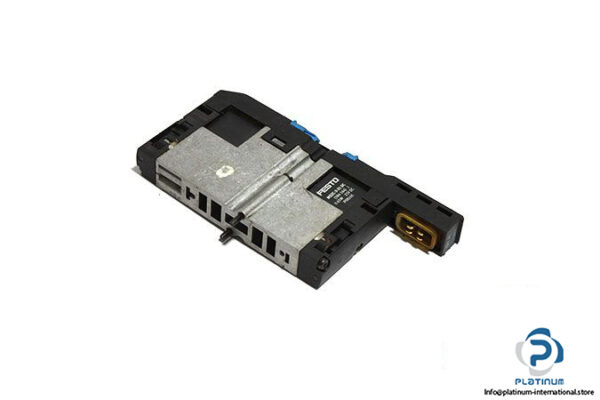

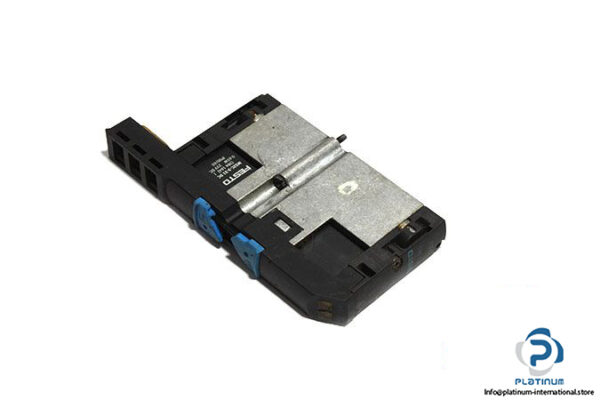

FESTO CPA14-M1H-5JS AIR SOLENOID VALVE WITH COIL & CURRENT BRIDGE
The FESTO CPA14-M1H-5JS is a robust 5/2 bistable air solenoid valve engineered for precise and stable pneumatic control. Constructed from durable die-cast aluminium, it features high flow rates and sub-base connections, making it ideal for demanding automation environments. Supplied with FESTO solenoid coil MSZC-3-21 and current bridge CPA14-EB2-HR.
Manufacturer: FESTO
Type: Air Solenoid Valve
Model: CPA14-M1H-5JS
Part No.: 173941
Technical Information
- Fluid: Air
- Function: 5/2 bistable
- Type of Actuation: Electrically
- Operating Pressure: -0.9 to 10 bar
- Pilot Pressure: 2 to 8 bar
- Nominal Flow Rate: 600 l/min
- Pneumatic Connection: Sub-base
- Material: Die-cast aluminium
- Ambient Temperature: -5 to 50 °C

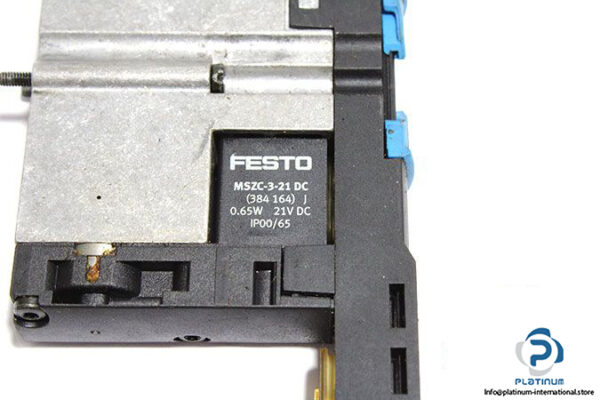

Attachment: FESTO 384164 SOLENOID COIL
Manufacturer: FESTO
Type: Solenoid Coil
Model: MSZC-3-21
Part No.: 384164
- Supply Voltage: 21 V DC
- Power Consumption: 0.65 W
- Protection Class: IP00 / IP65

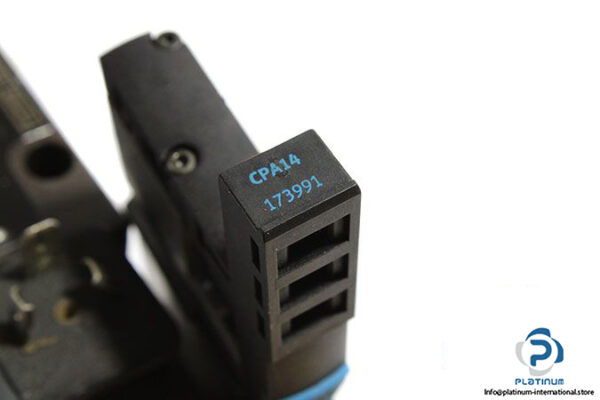

Attachment: FESTO 173991 CURRENT BRIDGE
Manufacturer: FESTO
Type: Current Bridge
Model: CPA14-EB2-HR
Part No.: 173991
