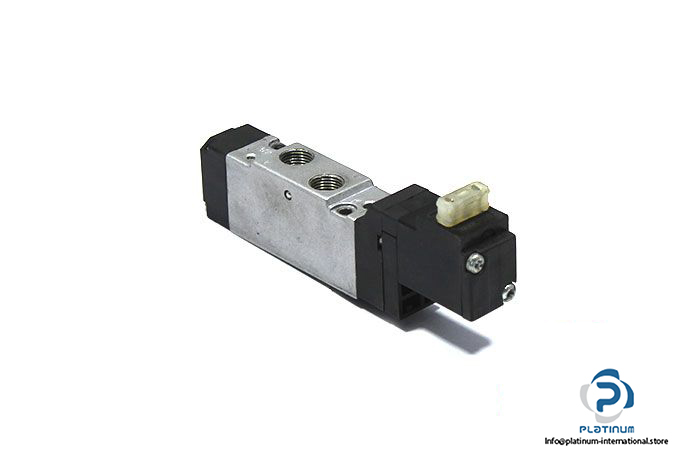

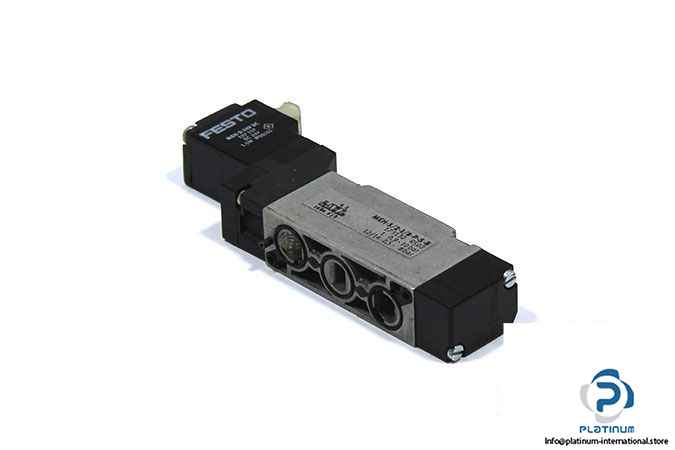

FESTO MEH-5/2-1/8-P-S-B SINGLE SOLENOID VALVE WITH SOLENOID COIL

The FESTO MEH-5/2-1/8-P-S-B is a high-performance single solenoid valve designed for precision pneumatic control. With a 5/2 monostable function and sub-based G1/8 connection, it delivers efficient and reliable performance in demanding automation environments. This valve includes the FESTO MEH-3-0.9 solenoid coil, ensuring stable electrical actuation.

Manufacturer: FESTO
Type: Single Solenoid Valve

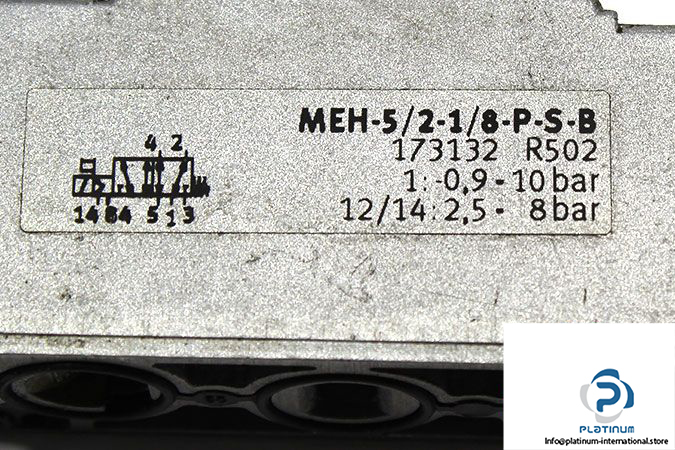

Model: MEH-5/2-1/8-P-S-B
Part No.: 173132

Technical Information

• Fluid: Air
• Design: Piston slide
• Function: 5/2 monostable
• Type of Actuation: Electrically
• Operating Pressure: -0.9 … 10 bar
• Pilot Pressure: 2.5 … 8 bar
• Nominal Flow Rate: 600 l/min
• Pneumatic Connection: Sub-Based / G1/8
• Material: Die-cast aluminum
• Ambient Temperature: -5 / 50 °C

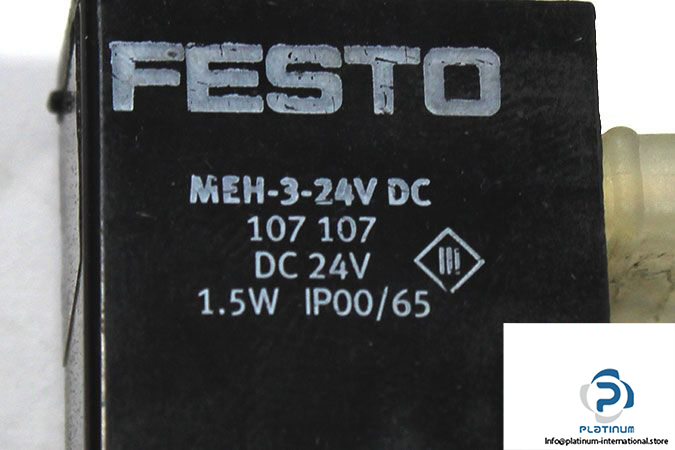

Solenoid Coil Attachment: FESTO MEH-3-0.9

Manufacturer: FESTO
Type: Solenoid Coil
Model: MEH-3-0.9
Part No.: 107107

Coil Technical Information

• Supply Voltage: 24 V DC
• Power Consumption: 1.5 W
• Protection Class: IP00 / IP65
