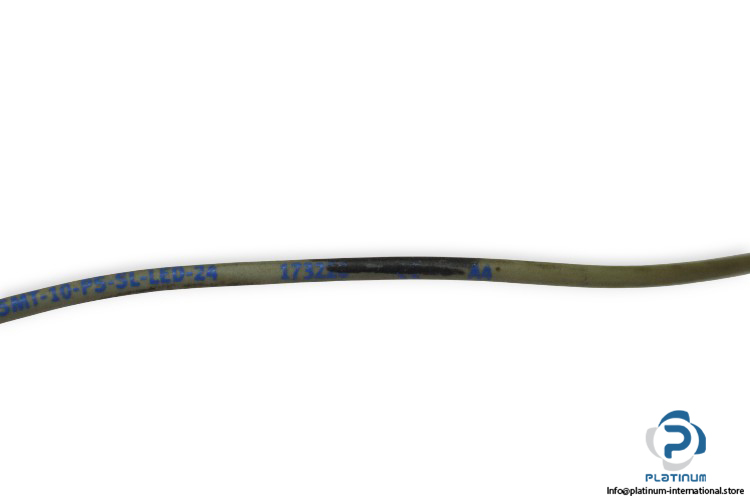

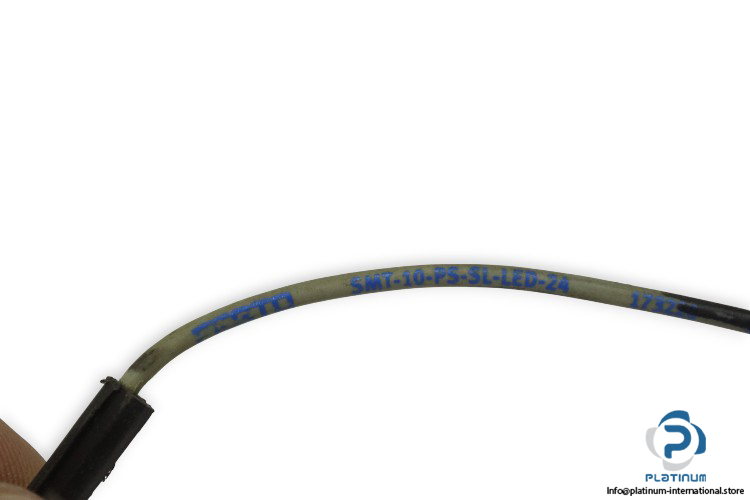

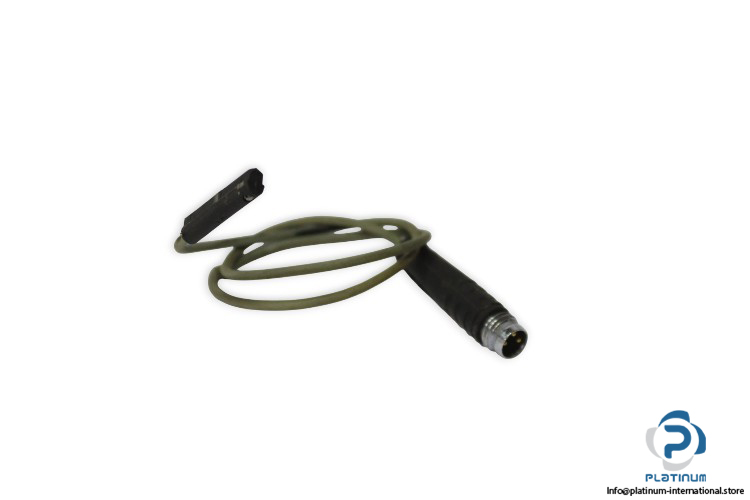

Festo SMT-10-PS-SL-LED-24 Magnetoresistive Proximity Sensor

The Festo SMT-10-PS-SL-LED-24 Magnetoresistive Proximity Sensor is a high-precision sensing device designed for reliable position detection in pneumatic and automation systems. With a robust housing and LED indication, it ensures accurate and consistent performance in industrial environments.

Manufacturer: Festo
Type: Magnetoresistive Proximity Sensor
Model: SMT-10-PS-SL-LED-24
Part No.: 173220

Technical Information

• Slot Type: Round Slot
• Rated Operating Voltage: 10 / 30 V DC
• Contact: PNP Normally Open (NO)
• Output Current Max.: 200 mA

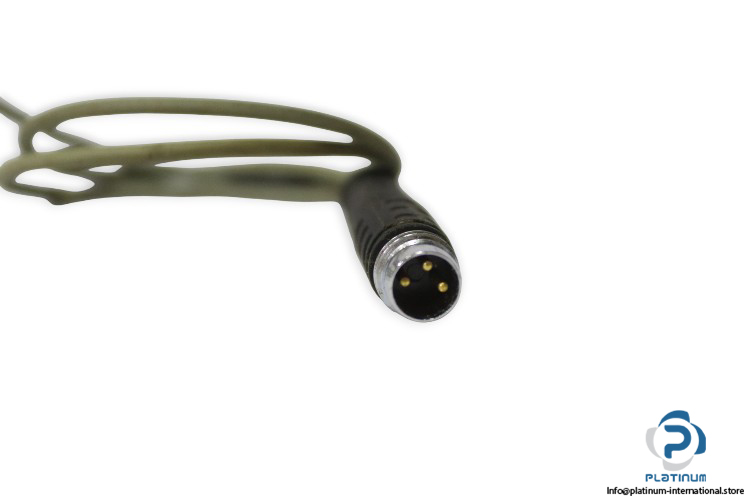

• Connection: PUR, 0.3 m Cable, M8x1-Male Connector 3-Pin
• Housing Material: LCP
• Protection Class: IP67 / IP65
• Ambient Temperature: -5 … 60 °C
• Dimensions: 29 x 6.2 x 4.4 mm
