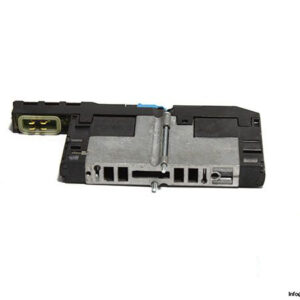

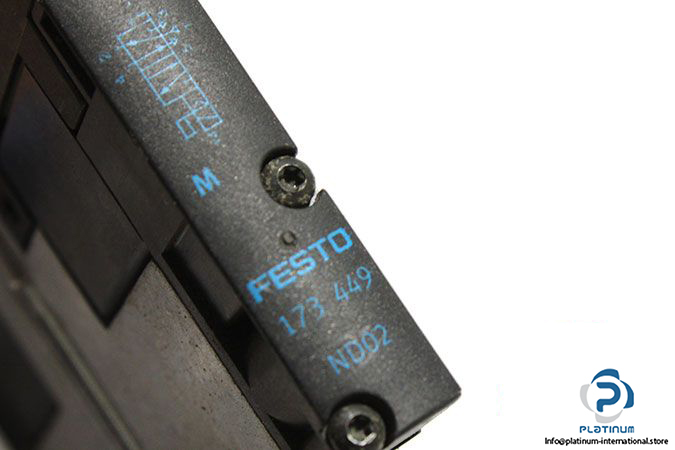

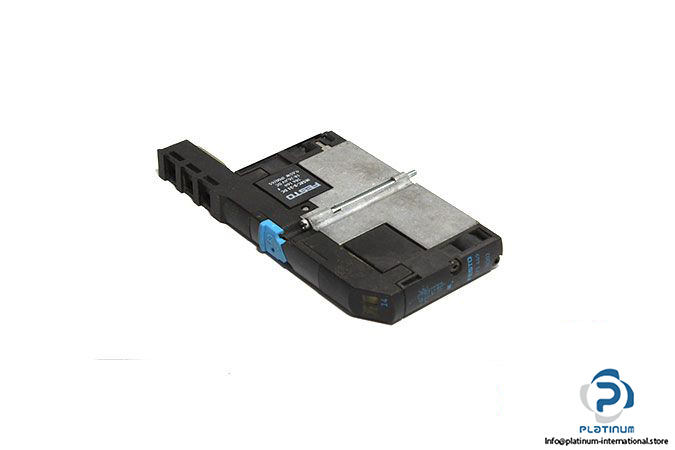

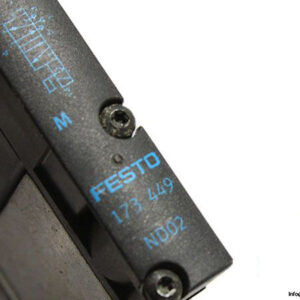

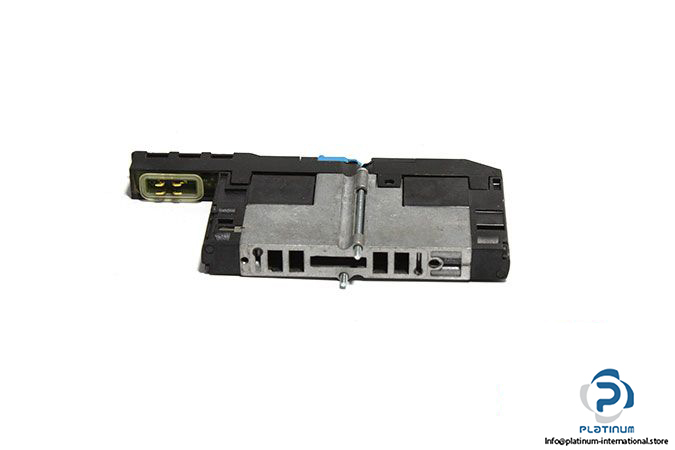

FESTO CPA10-M1H-5LS SINGLE SOLENOID VALVE WITH MSZC-3-21 DC COIL

The FESTO CPA10-M1H-5LS is a high-performance single solenoid valve engineered for precise pneumatic control. With a monostable 5/2-way function and subbase connection, it is suitable for compact and reliable automation systems. Comes complete with the FESTO MSZC-3-21 DC solenoid coil for efficient low-power operation.

Manufacturer: FESTO
Type: Single Solenoid Valve
Model: CPA10-M1H-5LS
Part No.: 173449

Technical Information

• Fluid: Air
• Design: Piston slide
• Function: 5/2-way monostable
• Type of Actuation: Electrically
• Operating Pressure: -0.9 to 10 bar
• Pilot Pressure: 3 to 8 bar
• Nominal Flow Rate: 280 l/min
• Pneumatic Connection: Subbase
• Material: Aluminum die cast
• Ambient Temperature: -5 to 50 °C

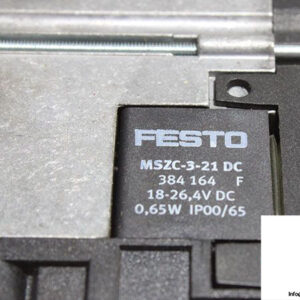

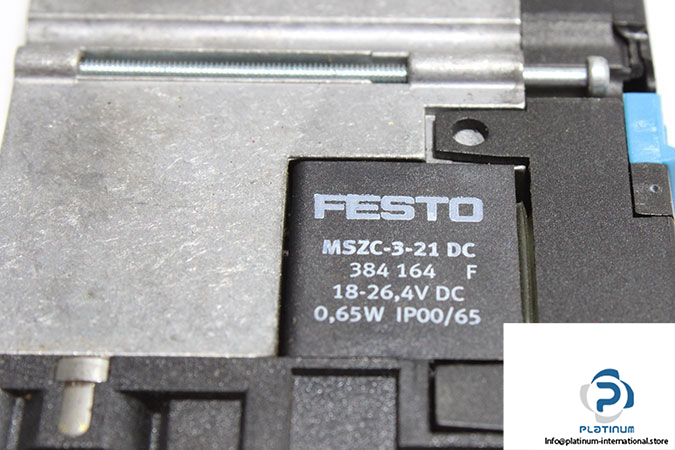

Solenoid Coil: FESTO MSZC-3-21 DC

Manufacturer: FESTO
Type: Solenoid Coil
Model: MSZC-3-21 DC
Part No.: 384164

• Supply Voltage: 18 to 26.4 V DC
• Power Consumption: 0.65 W
• Protection Class: IP65
