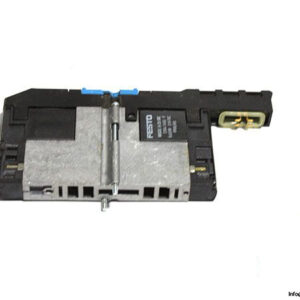

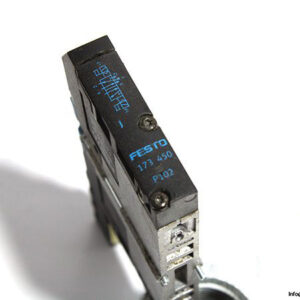

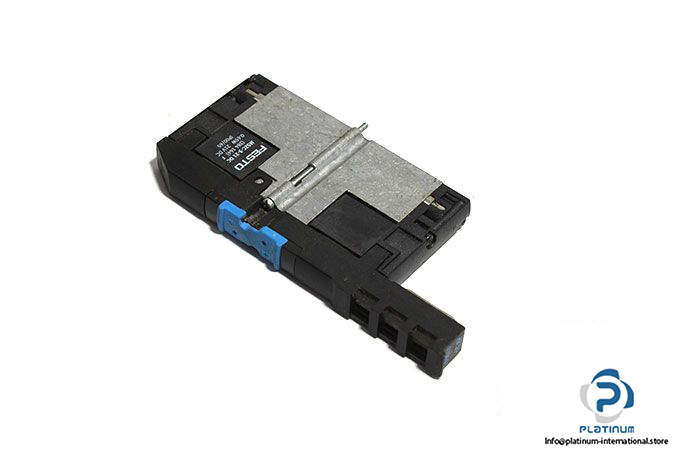

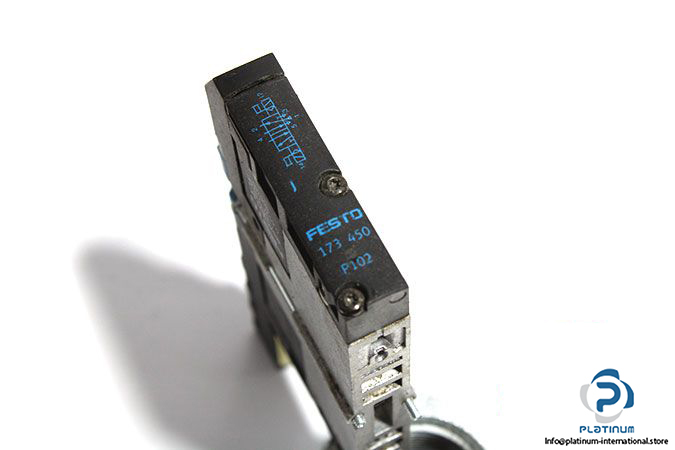

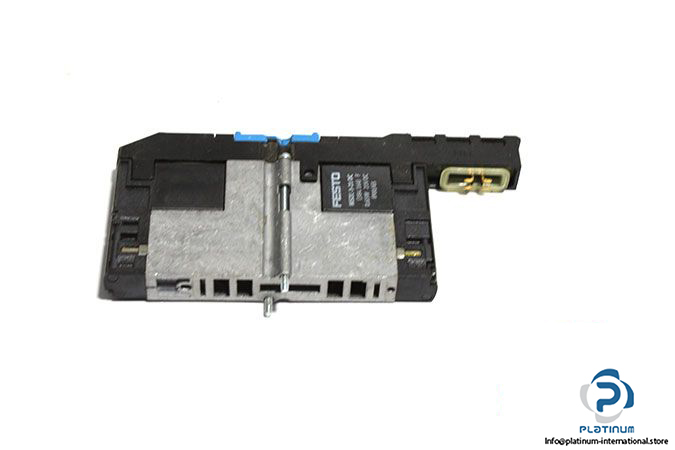

FESTO CPA10-M1H-5JS DOUBLE SOLENOID VALVE WITH SOLENOID COIL

The FESTO CPA10-M1H-5JS is a high-performance 5/2-way double solenoid valve designed for precise pneumatic control in industrial automation. Featuring a piston slide design and robust aluminum die-cast housing, it operates efficiently under a wide pressure range. Paired with the FESTO MSZC-3-21 DC solenoid coil, this system ensures reliable and safe actuation under demanding conditions.

Manufacturer: FESTO
Type: Double Solenoid Valve
Model: CPA10-M1H-5JS
Part No.: 173450

Valve Technical Specifications

• Fluid: Air
• Design: Piston slide
• Function: 5/2-way valve, double solenoid
• Type of Actuation: Electrically
• Operating Pressure: -0.9 to 10 bar
• Pneumatic Connection: Subbase
• Material: Aluminum die cast
• Ambient Temperature: -5 to 50 °C

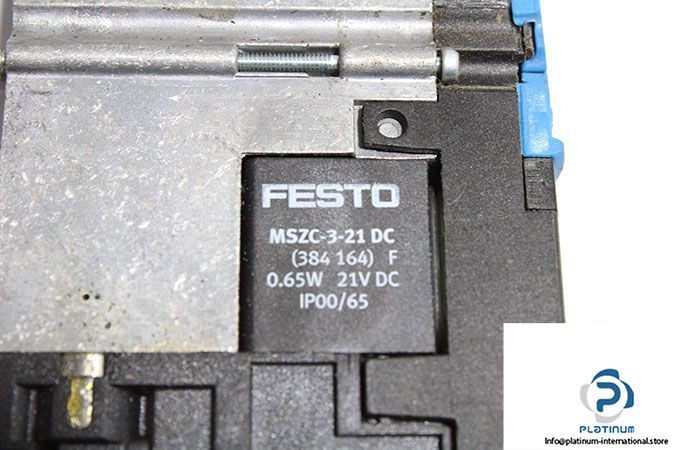

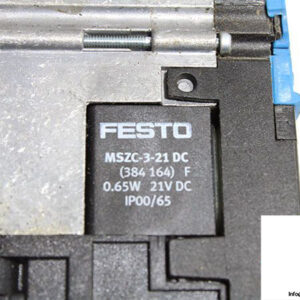

Solenoid Coil Attachment: FESTO MSZC-3-21 DC

Manufacturer: FESTO
Type: Solenoid Coil
Model: MSZC-3-21 DC
Part No.: 384164

Solenoid Coil Specifications

• Supply Voltage: 21 V DC
• Power Consumption: 0.65 W
• Protection Class: IP65
