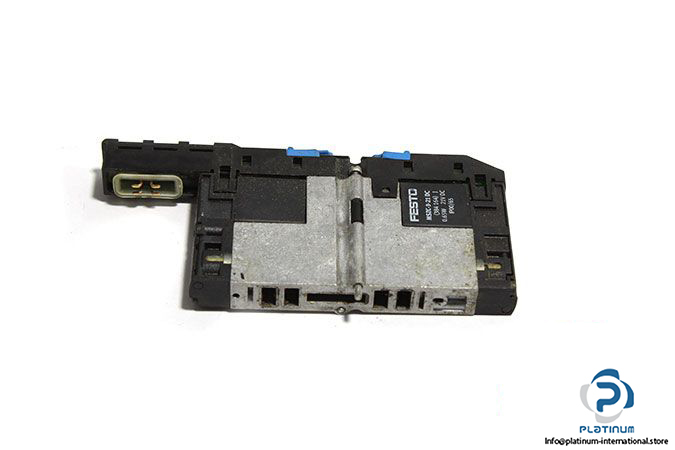

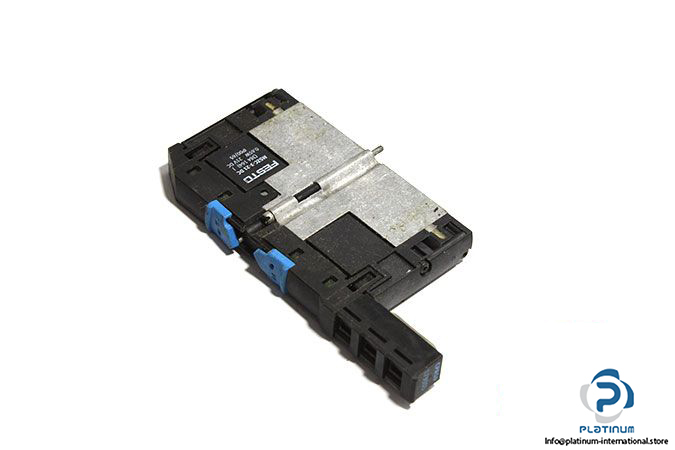

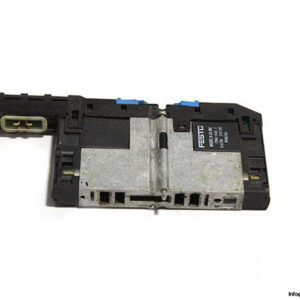

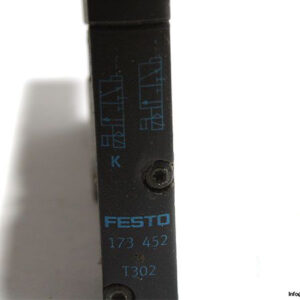

FESTO CPA10-M1H-2X3-GLS AIR SOLENOID VALVE WITH COIL AND CURRENT BRIDGE

The FESTO CPA10-M1H-2X3-GLS is a high-performance air solenoid valve featuring a monostable 2×3/2 closed function. Designed with a piston slide mechanism and constructed from durable aluminum die cast, this valve ensures optimal operation in automated pneumatic systems.

Manufacturer: FESTO
Type: Air Solenoid Valve

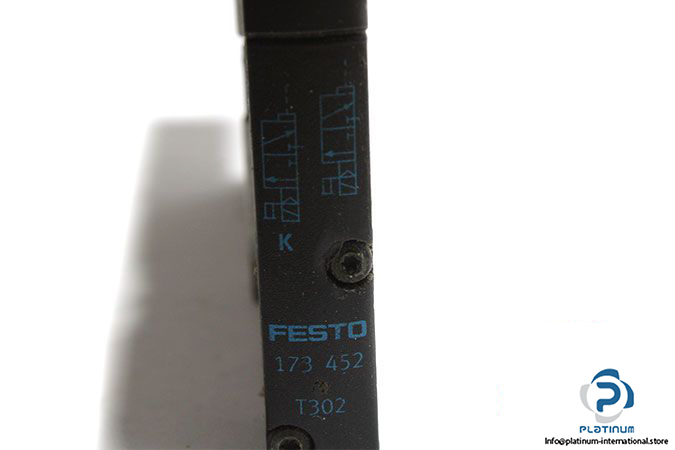

Model: CPA10-M1H-2X3-GLS
Part No.: 173452

Technical Information

• Fluid: Air
• Design: Piston slide
• Function: 2×3/2 closed, monostable
• Type of Actuation: Electrically
• Operating Pressure: 3 … 10 bar
• Pilot Pressure: 3 … 8 bar
• Nominal Flow Rate: 220 l/min
• Pneumatic Connection: Subbase
• Material: Aluminum die cast
• Ambient Temperature: -5 / 50 °C

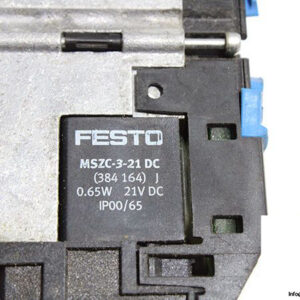

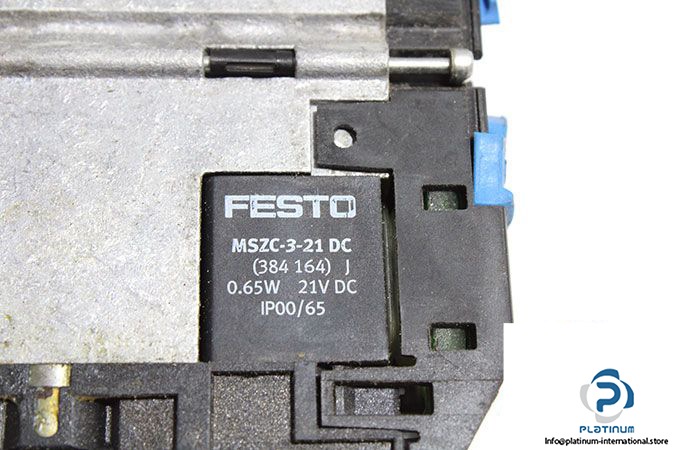

Attachment: FESTO SOLENOID COIL

Model: MSZC-3-21 DC
Part No.: 384164

• Supply Voltage: 21 V DC
• Power Consumption: 0.65 W
• Protection Class: IP65

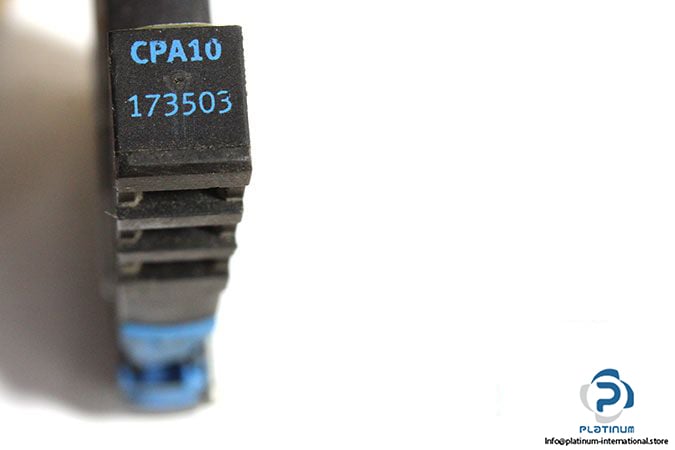

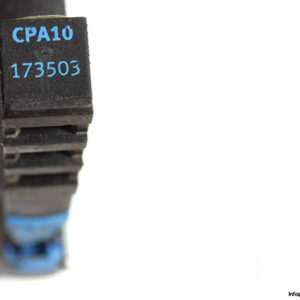

Attachment: FESTO CURRENT BRIDGE

Model: CPA10-EB2-HR
Part No.: 173503
