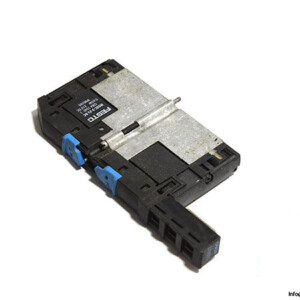

FESTO CPA10-M1H-2X3-GLS AIR SOLENOID VALVE WITH SOLENOID COIL

The FESTO CPA10M1H2X3GLS is a high-performance air solenoid valve designed for compact and efficient pneumatic systems. It features a piston slide design, electrically actuated 2×3/2 closed monostable function, and sub-base connection for easy integration. Ideal for precision industrial automation requiring reliable air flow control.

Manufacturer: FESTO
Type: Air Solenoid Valve

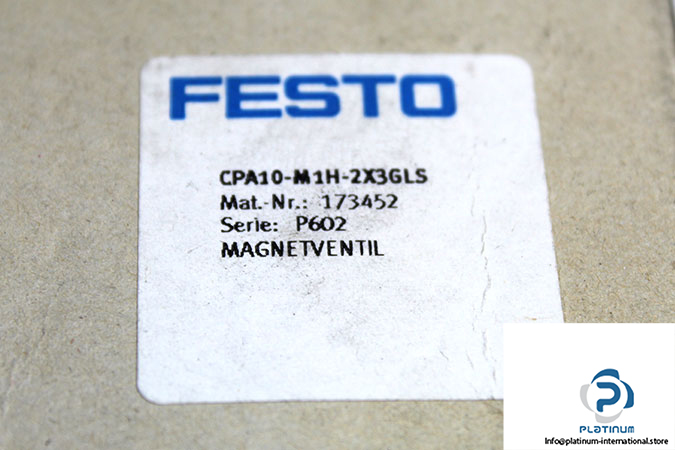

Model: CPA10-M1H-2X3-GLS
Part No.: 173452

Technical Information

• Fluid: Air
• Design: Piston slide
• Function: 2×3/2 closed, monostable
• Type of Actuation: Electrically
• Operating Pressure: 3 … 10 bar
• Nominal Flow Rate: 220 l/min
• Pneumatic Connection: Sub-base
• Material: Die-cast aluminium
• Ambient Temperature: -5 / 50 °C

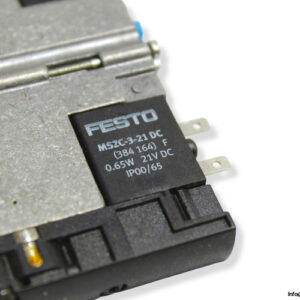

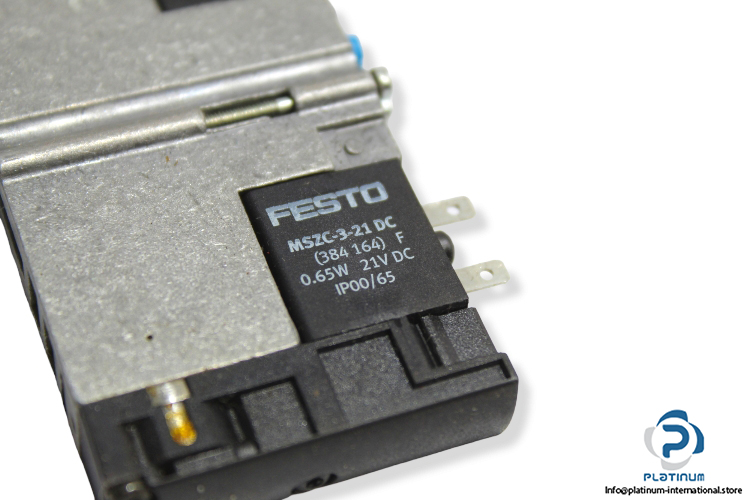

Attachment: FESTO MSZC-3-21 DC SOLENOID COIL

Manufacturer: FESTO
Type: Solenoid Coil
Model: MSZC-3-21 DC
Part No.: 384164

• Supply Voltage: 21 V DC
• Power Consumption: 0.65 W
• Protection Class: IP00 / IP65
