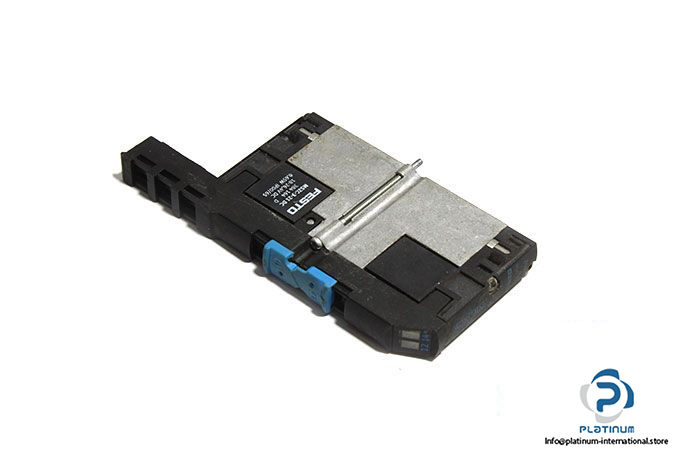

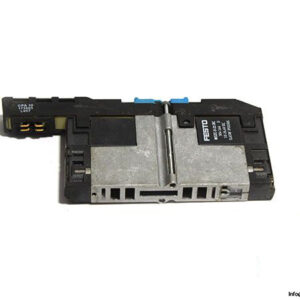

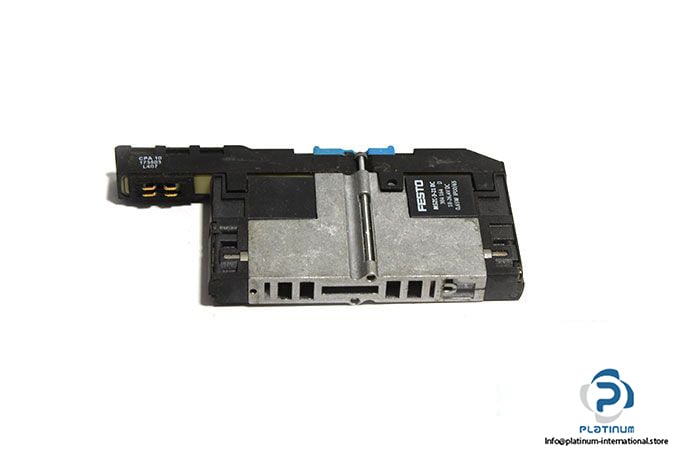

FESTO CPA10-M1H-5/3-GS AIR SOLENOID VALVE WITH COIL AND CURRENT BRIDGE

The FESTO CPA10-M1H-5/3-GS is a high-performance air solenoid valve with a closed-center 5/3 function, engineered for reliable pneumatic control. Designed with a piston slide mechanism and made from robust aluminum die cast, it™s ideal for precise air regulation in automation systems. Supplied with FESTO MSZC-3-21 DC solenoid coil and CPA10-EB2-HR current bridge for complete functionality.

Manufacturer: FESTO
Type: Air Solenoid Valve

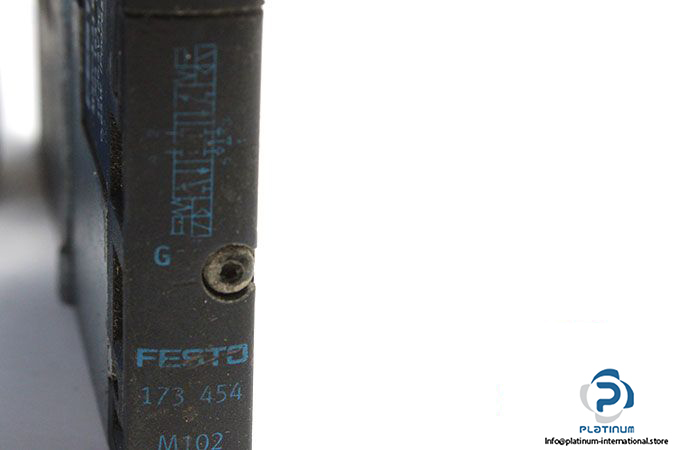

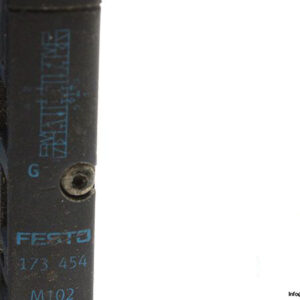

Model: CPA10-M1H-5/3-GS
Part No.: 173454

Technical Information

• Fluid: Air
• Design: Piston slide
• Function: 5/3 closed
• Type of Actuation: Electrically
• Operating Pressure: -0.9 … 10 bar
• Pilot Pressure: 3 … 8 bar
• Nominal Flow Rate: 330 l/min
• Pneumatic Connection: Subbase
• Material: Aluminum die cast
• Ambient Temperature: -5 / 50 °C

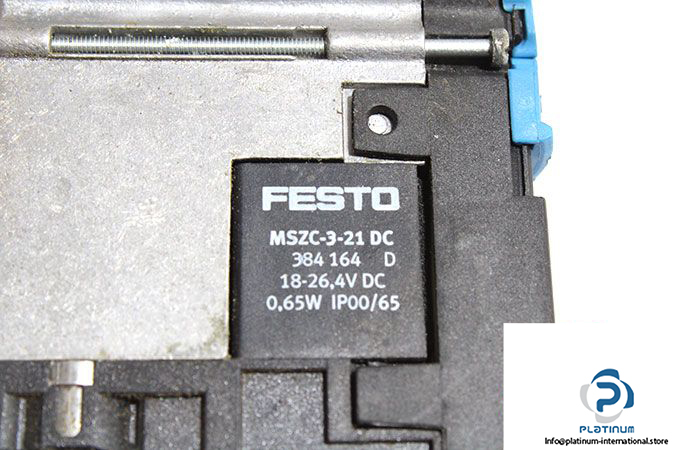

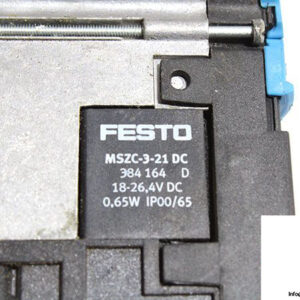

Attachment: FESTO 384164 SOLENOID COIL

• Model: MSZC-3-21 DC
• Part No.: 384164
• Supply Voltage: 18 … 26.4 V DC
• Power Consumption: 0.65 W
• Protection Class: IP65

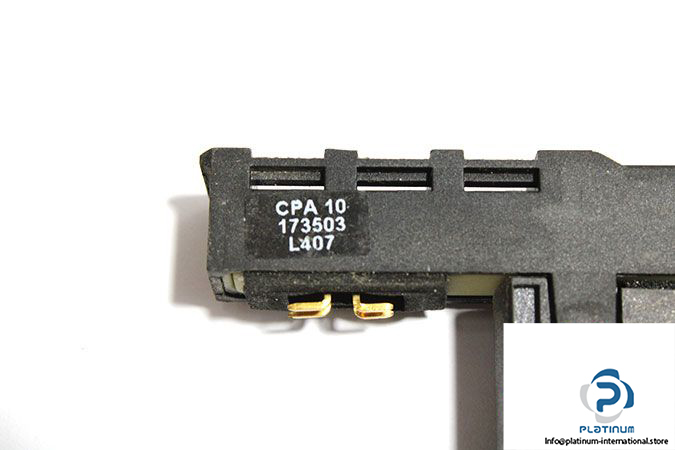

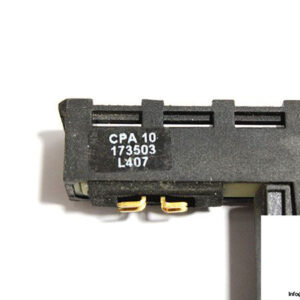

Attachment: FESTO 173503 CURRENT BRIDGE

• Model: CPA10-EB2-HR
• Part No.: 173503
