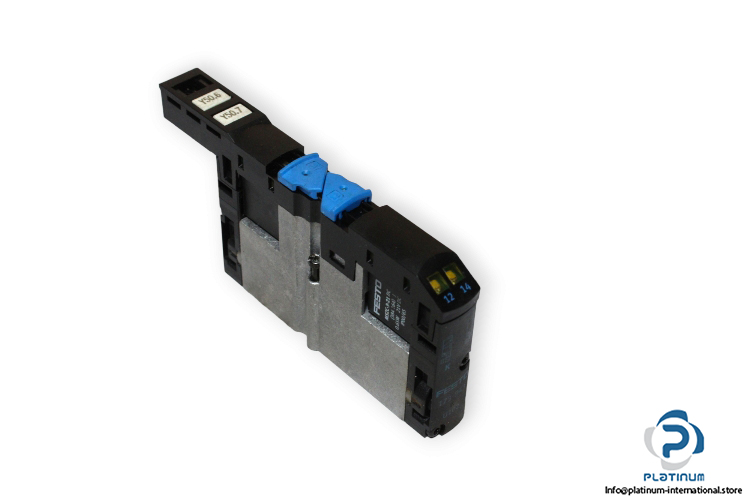

FESTO CPA14-M1H-2X3-GLS AIR SOLENOID VALVE WITH MSZC-3-21 DC COIL

The FESTO CPA14-M1H-2X3-GLS is a high-performance air solenoid valve engineered for precise pneumatic control in industrial applications. Featuring an aluminum die-cast body, piston slide design, and monostable 2×3/2 valve function, this unit is optimized for both reliability and speed. It comes equipped with the FESTO MSZC-3-21 DC solenoid coil to ensure efficient electrical actuation and minimal energy consumption.

Manufacturer: FESTO
Type: Air Solenoid Valve
Model: CPA14-M1H-2X3-GLS

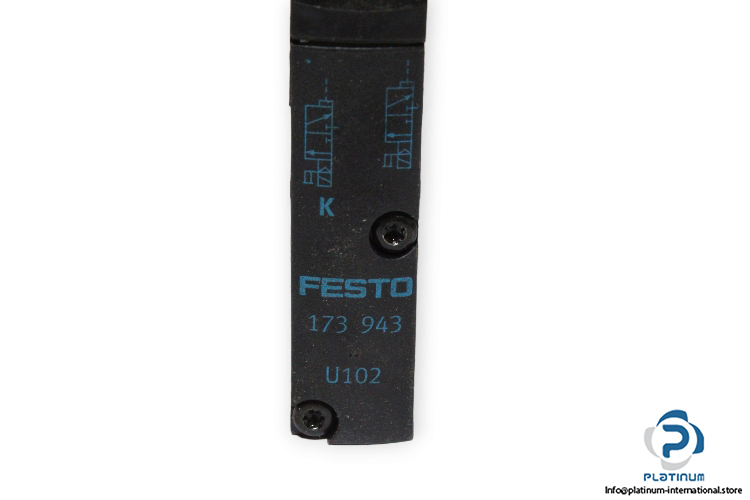

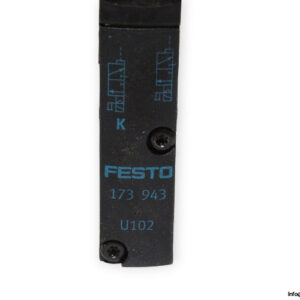

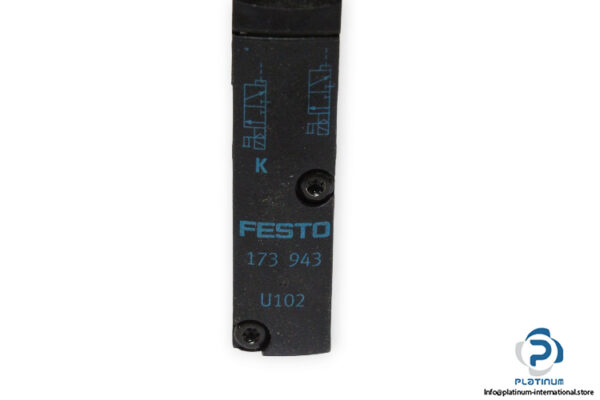

Part No.: 173943

Technical Information

• Fluid: Air
• Design: Piston slide
• Valve Function: 2×3/2 closed, monostable
• Type of Actuation: Electrically
• Operating Pressure: 3 … 8 bar
• Nominal Flow Rate: 550 l/min
• Pneumatic Connection: Sub-base
• Material: Aluminum die cast
• Ambient Temperature: -5 / 50 °C

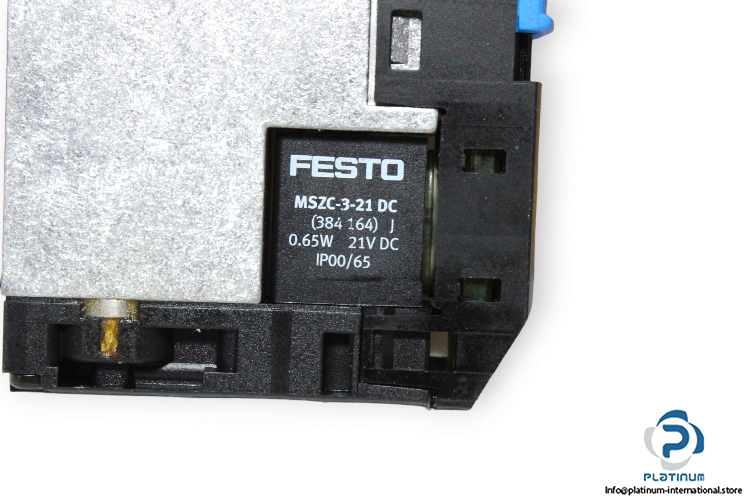

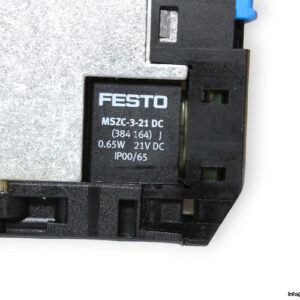

Attachment: FESTO MSZC-3-21 DC SOLENOID COIL

Manufacturer: FESTO
Type: Solenoid Coil
Model: MSZC-3-21 DC
Part No.: 384614

Coil Technical Information

• Supply Voltage: 21 V DC
• Power Consumption: 0.65 W
• Protection Class: IP00 / IP65
