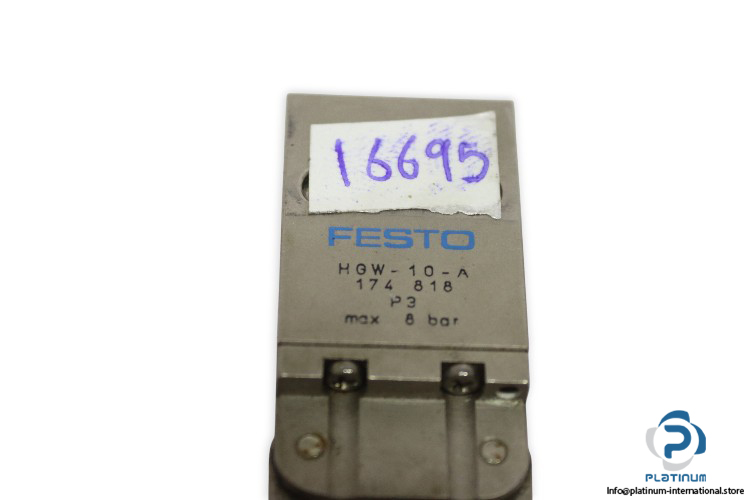

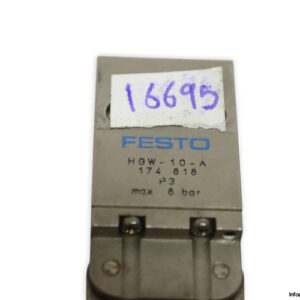

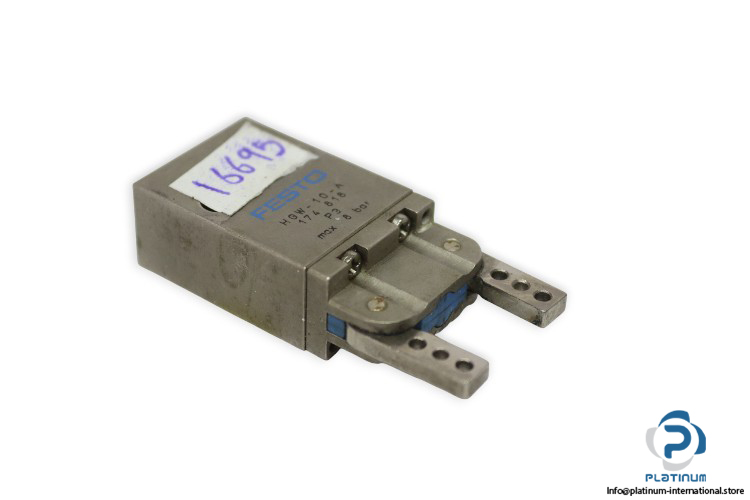

FESTO HGW-10-A Angle Gripper
The FESTO HGW-10-A Angle Gripper is a high-precision pneumatic component designed for reliable gripping and positioning in automated handling systems. With double-acting operation and compact construction, it offers excellent accuracy and repeatability for industrial automation applications.
Manufacturer: FESTO
Type: Angle Gripper
Model: HGW-10-A
MRN: 174 818
Technical Information
- Size: 10
- Maximum Replacement Accuracy: 0.2 millimeters
- Maximum Opening Angle: 40 degrees
- Repetition Accuracy (Gripper): less than or equal to 0.04 millimeters
- Number of Gripper Fingers: 2
- Mode of Operation: Double acting
- Gripper Function: Angle
- Design Structure: Lever
- Position Detection: For proximity sensor
- Operating Pressure: 2 to 8 bar
- Maximum Operating Frequency of Gripper: 4 hertz
- Minimum Opening Time at 6 bar: 5 milliseconds
- Minimum Closing Time at 6 bar: 5 milliseconds
- Operating Medium: Filtered compressed air
- Corrosion Resistance Classification (CRC): 2
- Ambient Temperature: 5 to 60 degree Celsius
- Total Gripping Torque at 6 bar (Opening): 25 newton centimeters
- Total Gripping Torque at 6 bar (Closing): 22 newton centimeters
- Maximum Force on Gripper Jaw (Fz static): 16 newton
- Maximum Torque at Gripper (Mx static): 0.3 newton meter
- Maximum Torque at Gripper (My static): 0.1 newton meter
- Material (Housing): Aluminum nickel plated
- Pneumatic Connection: M3
