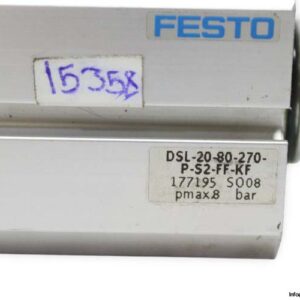

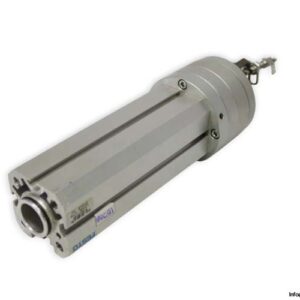

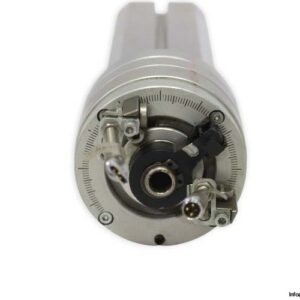

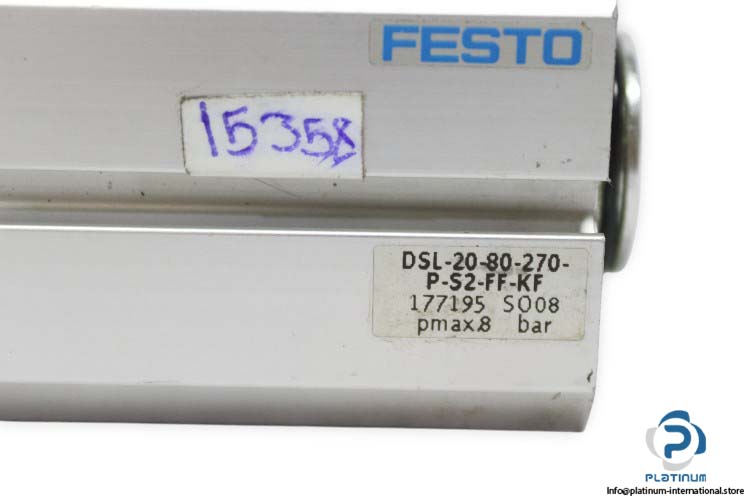

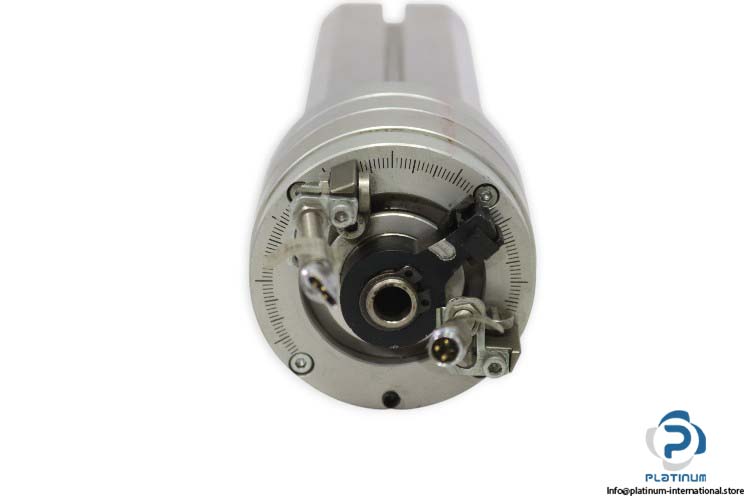

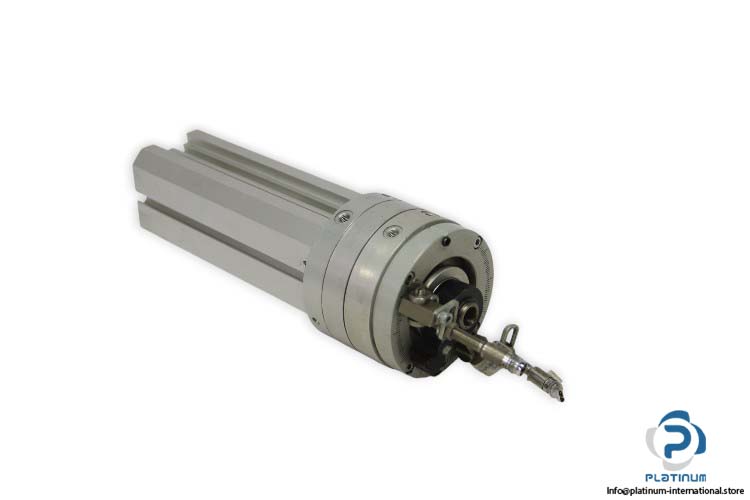

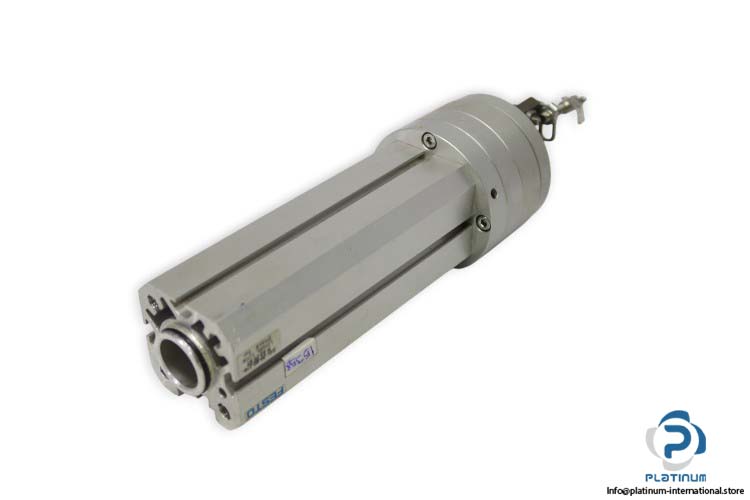

FESTO DSL-20-80-270-P-S2-FF-KF SWIVEL/LINEAR UNIT

The Festo DSL-20-80-270-P-S2-FF-KF is a precision-engineered swivel/linear unit designed for demanding pneumatic automation tasks. With its dual-function stroke and swivel movement, this component offers high versatility in space-constrained mechanical systems. Manufacturer: Festo
Type: Swivel/linear unit
Model: DSL-20-80-270-P-S2-FF-KF
Part No.: 177195
Ref. Code: SO08

Technical Information

Stroke Length: 80 mm
Piston Diameter: 20 mm
Operating Medium: Dried compressed air
Rotation Angle Adjustment Range: 270°
Swivel Angle: 272°
Cushioning P: Flexible cushioning rings/plates at both ends
Max. Operating Pressure: 8 bar
Mode of Operation: Double acting
Ambient Temperature Range: -10 to 60 °C
Pneumatic Connection: M5
Materials (Cover): Wrought Aluminum alloy, Anodized
Materials (Seals): TPE-U(PU)
