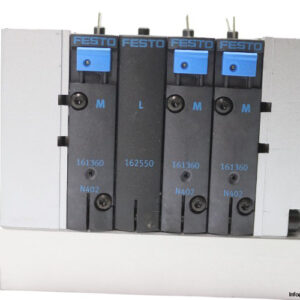

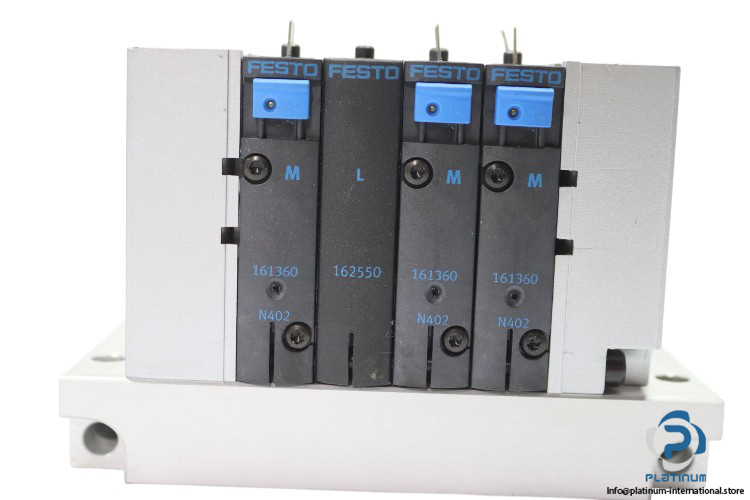

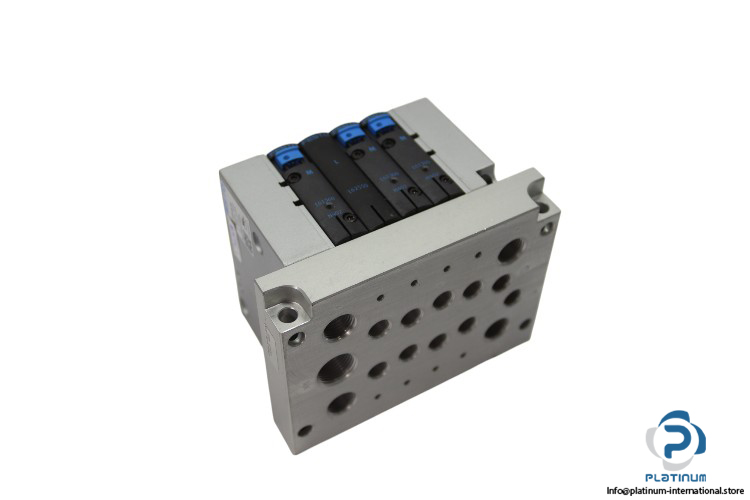

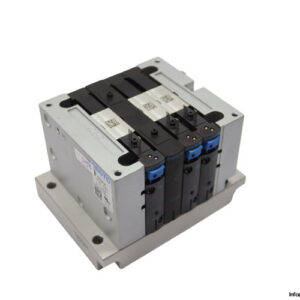

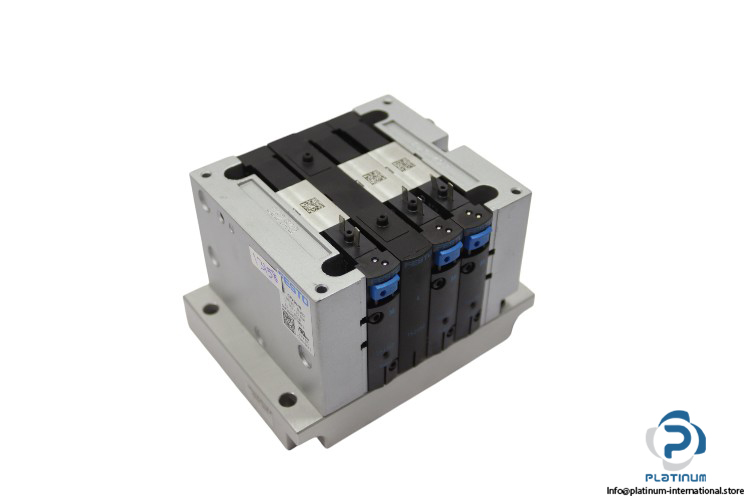

Festo CPV-10-VI Valve Terminals with 4 Valves

The **Festo CPV-10-VI** Valve Terminal is an advanced industrial valve solution designed to manage and control pneumatic systems efficiently. With electromagnetically actuated piston spool valves, it offers high performance in demanding environments. Featuring a combination of solenoid valves and versatile pneumatic connections, this valve terminal supports a wide range of automation applications.

Manufacturer: FESTO

Type: Valve Terminals with 4 Valves

Model: CPV-10-VI

Part No.: 18200

Technical Data:

• Design: Electromagnetically Actuated Piston Spool Valve
• Valve Functions:
  • 3x Air solenoid valve (FESTO 161360)
  • 1x Air solenoid valve (FESTO 162550)
• Width: 10 mm
• Nominal Flow Rate without Fitting: 400 l/m
• Pneumatic Connections:
  • Supply ports (1/11): G1/8
  • Exhaust ports (3/5): G3/8
  • Working ports (2/4): M7
  • Pilot air supply ports (12/14): M5
  • Pilot Exhaust Air Ports (82/84): M5
• Operating Pressure:
  • Port (1): -0.9 / . 10 bar
  • Port (2): 3 / . 8 bar
• Ambient Temperature: -5 / . +50 °C
• Operating Voltage: 24 VDC
• Attachment: FESTO 152425 MULTI-PIN
