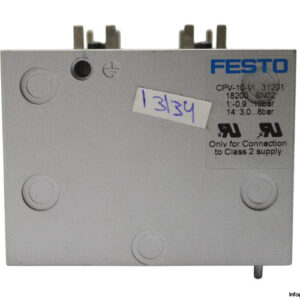

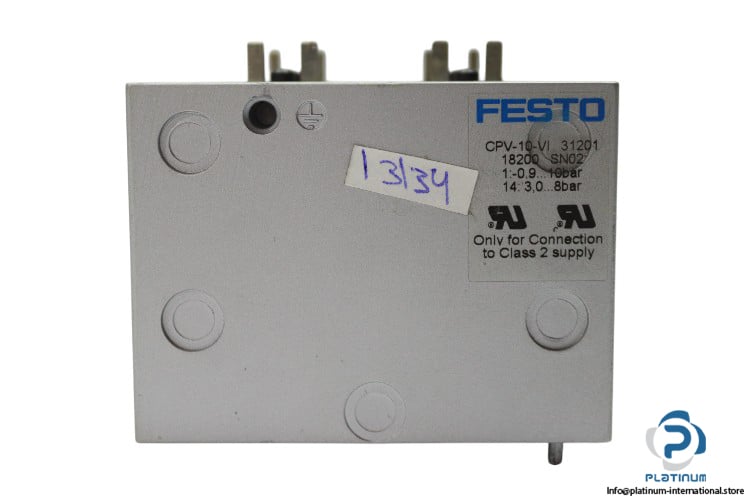

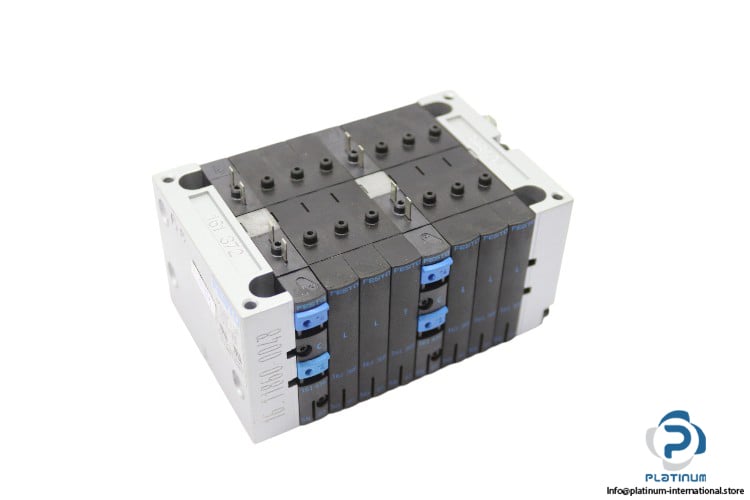

Festo CPV-10-VI Valve Terminals With 8 Valves

The Festo CPV-10-VI is a high-performance valve terminal featuring 8 valves, designed to control pneumatic systems with precision. Equipped with electromagnetically actuated piston spool valves, it supports various solenoid valve configurations for versatile industrial applications. With a nominal flow rate of 400 l/m, this valve terminal ensures efficient and reliable operation in demanding environments.

Manufacturer: FESTO

Type: Valve Terminals With 8 Valves

Model: CPV-10-VI

Part No.: 18200

Technical Data:

• Design: Electromagnetically Actuated Piston Spool Valve

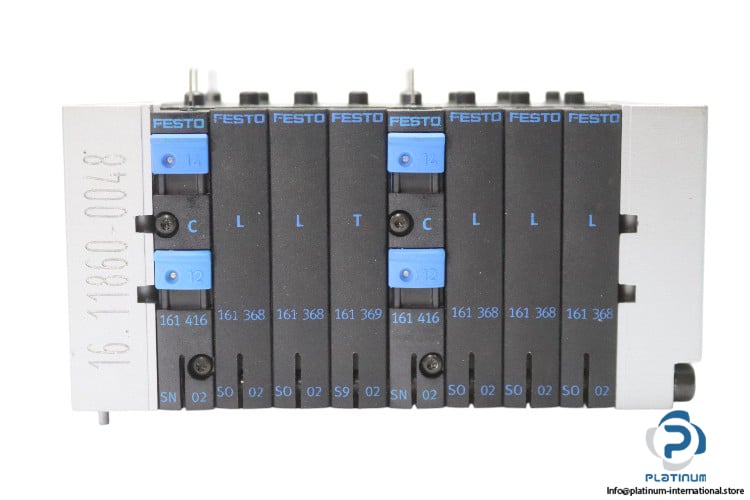

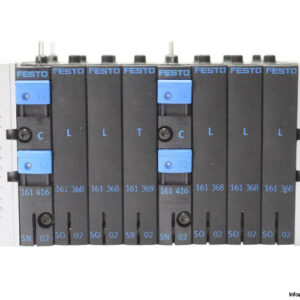

• Valve Functions:
  • 5x Air solenoid valve (FESTO 161368)
  • 1x Air solenoid valve (FESTO 161369)
  • 2x Air solenoid valve (FESTO 161416)
• Width: 10 mm
• Nominal Flow Rate without Fitting: 400 l/m
• Pneumatic Connections:
  • Supply ports (1/11): G1/8
  • Exhaust ports (3/5): G3/8
  • Working ports (2/4): M7
  • Pilot air supply ports (12/14): M5
  • Pilot Exhaust Air Ports (82/84): M5
• Operating Pressure:
  • Port (1): -0.9 / . 10 bar
  • Port (2): 3 / . 8 bar
• Ambient Temperature: -5 / . +50 °C
• Operating Voltage: 24 VDC
