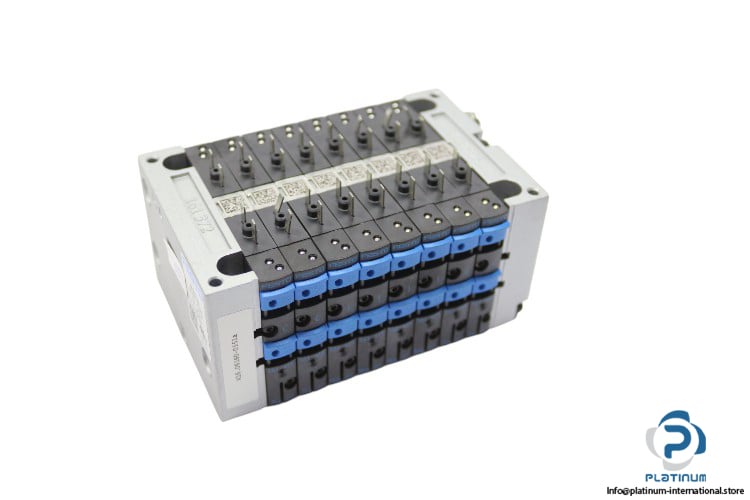

Festo CPV-10-VI Valve Terminals with 8 Valves

The Festo CPV-10-VI is a high-performance valve terminal with 8 valves, designed for precise control and optimal performance in pneumatic systems. Featuring electromagnetically actuated piston spool valves, it offers reliable operation with multiple valve functions, making it ideal for industrial automation and fluid control applications.

Manufacturer: FESTO

Type: Valve Terminals With 8 Valves

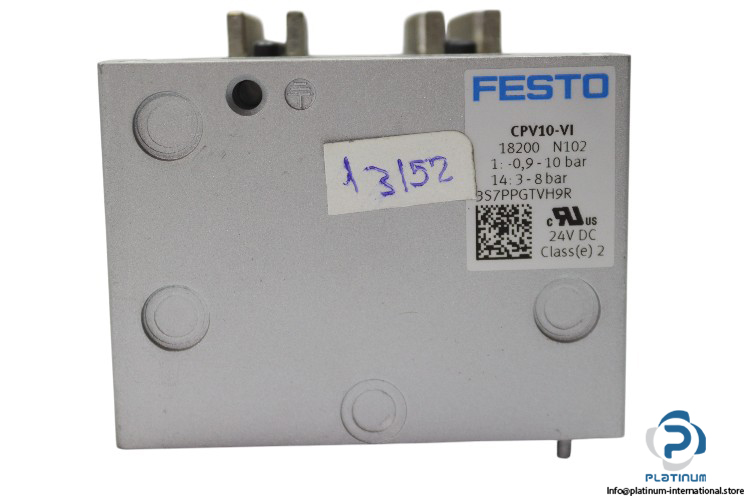

Model: CPV-10-VI

Part No.: 18200

Technical Data:

• Design: Electromagnetically Actuated Piston Spool Valve

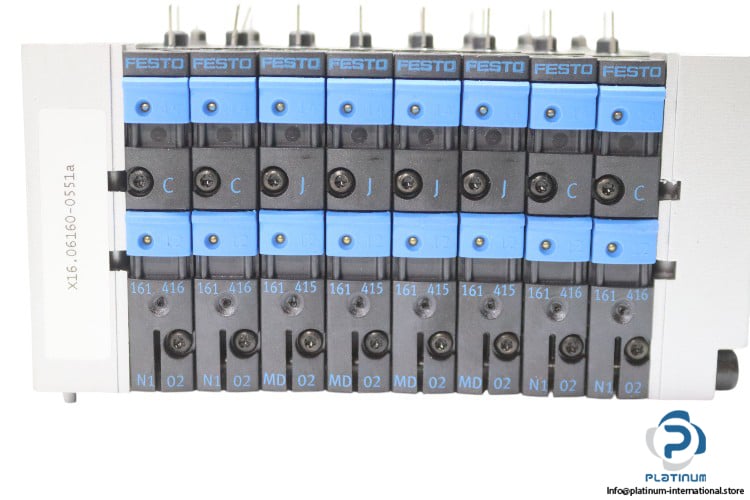

• Valve Functions:
  • 4x Air solenoid valve (FESTO 161416)
  • 4x Air solenoid valve (FESTO 161415)
• Width: 10 mm
• Nominal Flow Rate without Fitting: 400 l/m
• Pneumatic Connections:
  • Supply ports (1/11): G1/8
  • Exhaust ports (3/5): G3/8
  • Working ports (2/4): M7
  • Pilot air supply ports (12/14): M5
  • Pilot Exhaust Air Ports (82/84): M5
• Operating Pressure:
  • Port (1): -0.9 to 10 bar
  • Port (2): 3 to 8 bar
• Ambient Temperature: -5 to +50 °C
• Operating Voltage: 24 VDC
