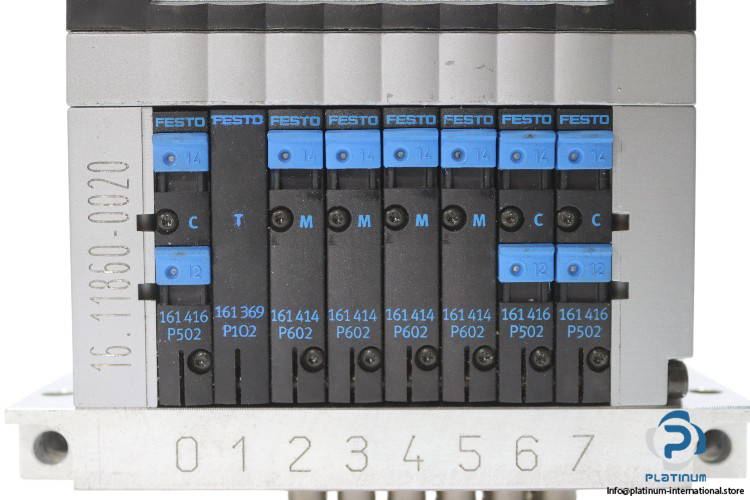

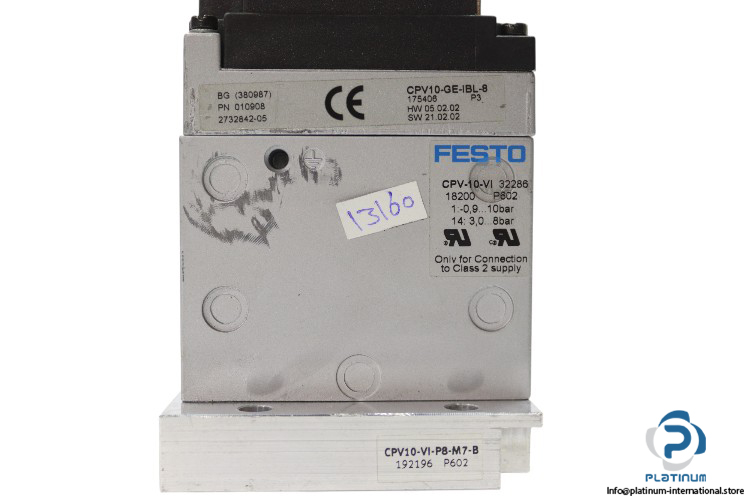

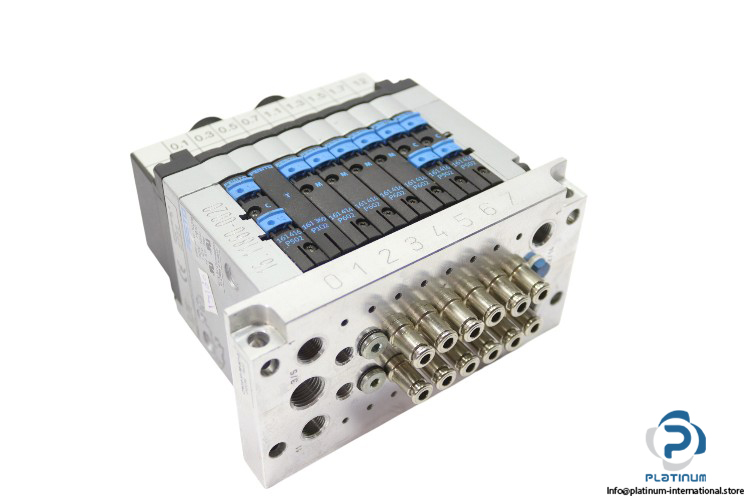

Festo CPV-10-VI Valve Terminals with 8 Valves

The Festo CPV-10-VI Valve Terminals with 8 valves are designed for industrial automation applications, providing reliable control for pneumatic systems. With electromagnetically actuated piston spool valves and multiple air solenoid valve functions, this unit offers flexible and efficient solutions for controlling air flow in various systems.

Manufacturer: FESTO

Type: Valve Terminals with 8 Valves

Model: CPV-10-VI

Part No.: 18200

Technical Data:

• Design: Electromagnetically Actuated Piston Spool Valve
• Valve Functions:
  • 3x Air solenoid valve (FESTO 161416)
  • 4x Air solenoid valve (FESTO 161414)
  • 1x Air solenoid valve (FESTO 161369)
• Width: 10 mm
• Nominal Flow Rate without Fitting: 400 l/m
• Pneumatic Connections:
  • Supply ports (1/11): G1/8
  • Exhaust ports (3/5): G3/8
  • Working ports (2/4): M7
  • Pilot air supply ports (12/14): M5
  • Pilot Exhaust Air Ports (82/84): M5
• Operating Pressure:
  • Port (1): -0.9 to 10 bar
  • Port (2): 3 to 8 bar
• Ambient Temperature: -5 to +50 °C
• Operating Voltage: 24 VDC

Included:

Multi-Pin Model: FESTO 192196 Multi-pin

Manufacturer: FESTO

Type: Multi-pin

Model: CPV10-VI -P8-M7-B

Part No.: 192196
