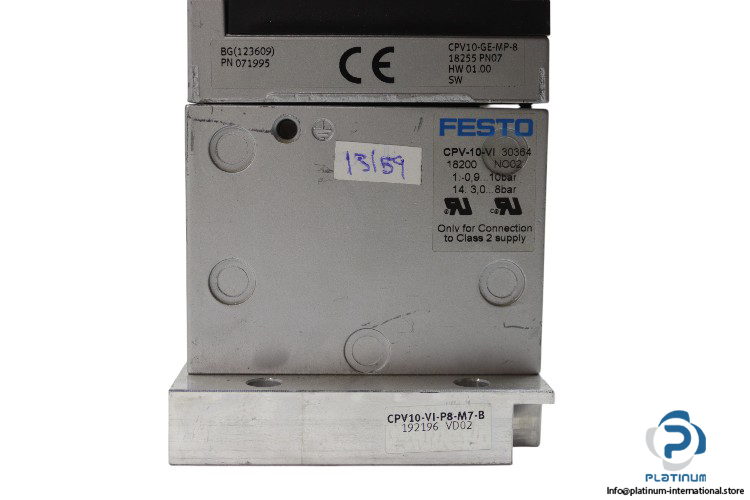

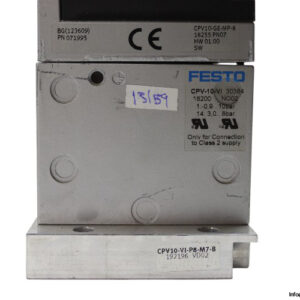

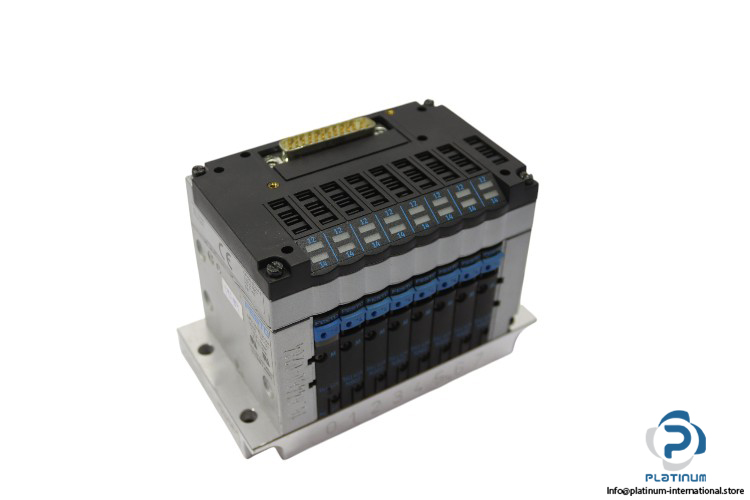

Festo CPV-10-VI Valve Terminals with 8 Valves

The Festo CPV-10-VI Valve Terminals are designed for efficient control of industrial pneumatic systems. With 8 air solenoid valves, this terminal offers versatile and reliable performance for a wide range of applications. Engineered for electromagnetically actuated piston spool valves, it features a compact design with a nominal flow rate of 400 l/m and multiple pneumatic connections for optimal flexibility.

Manufacturer: FESTO

Type: Valve Terminals with 8 Valves

Model: CPV-10-VI

Part No.: 18200

Technical Data:

• Design: Electromagnetically Actuated Piston Spool Valve

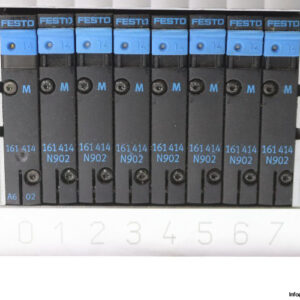

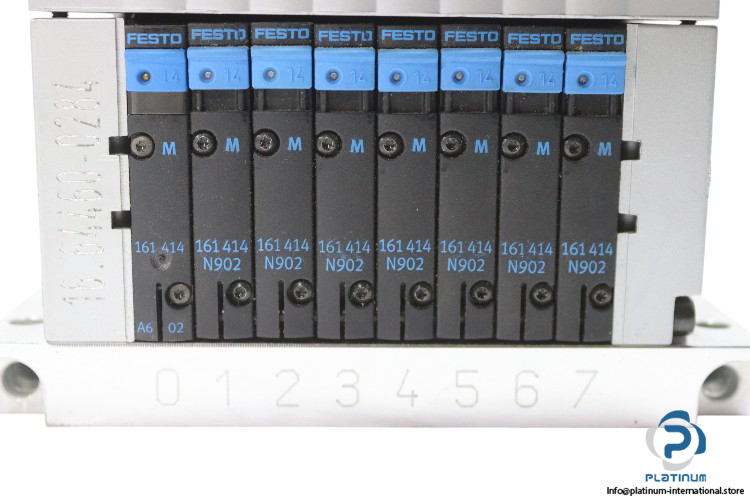

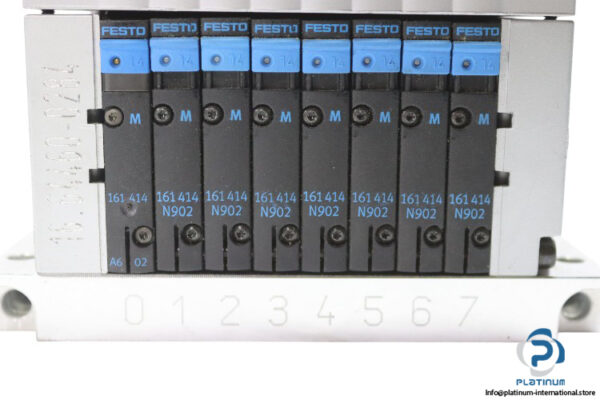

• Valve Functions: 8x Air solenoid valve (FESTO 161414)
• Width: 10 mm
• Nominal Flow Rate (without Fitting): 400 l/m
• Pneumatic Connections:
  • Supply ports (1/11): G1/8
  • Exhaust ports (3/5): G3/8
  • Working ports (2/4): M7
  • Pilot air supply ports (12/14): M5
  • Pilot Exhaust Air Ports (82/84): M5
• Operating Pressure:
  • Port (1): -0.9 / . 10 bar
  • Port (2): 3 / . 8 bar
• Ambient Temperature: -5 / . +50 °C
• Operating Voltage: 24 VDC
• Attached With: FESTO 192196 Multi-pin

Attached with: FESTO 192196 Multi-pin
