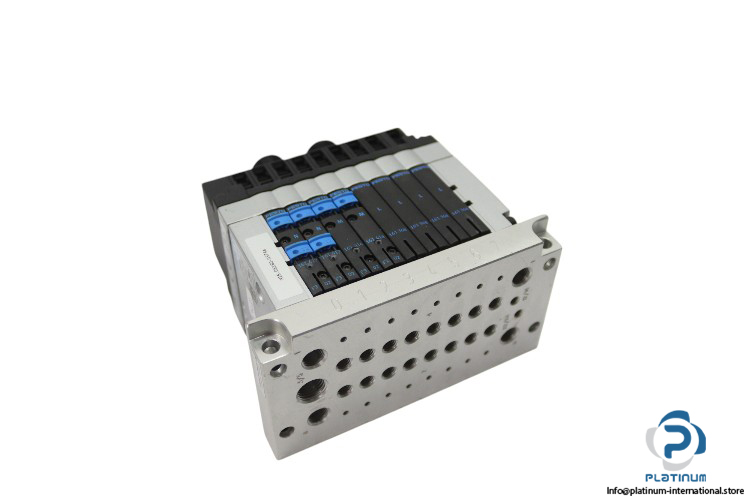

FESTO CPV-10-VI Valve Terminals with 8 Valves

The FESTO CPV-10-VI is a highly efficient valve terminal with 8 valves, designed for precision control in pneumatic systems. This system includes multiple air solenoid valves, including FESTO models 161417, 161414, and 161368, and offers easy integration with various pneumatic systems, offering flexibility and reliability in industrial applications.

Manufacturer: FESTO

Type: Valve Terminals with 8 Valves

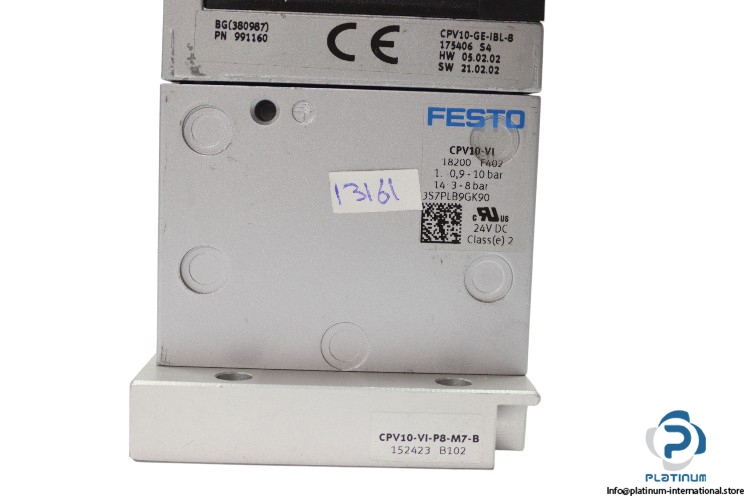

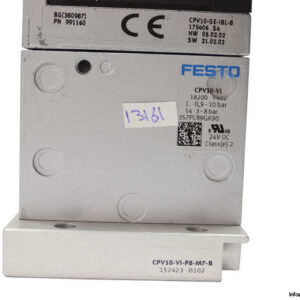

Model: CPV-10-VI

Part No.: 18200

Technical Data:

• Design: Electromagnetically Actuated Piston Spool Valve

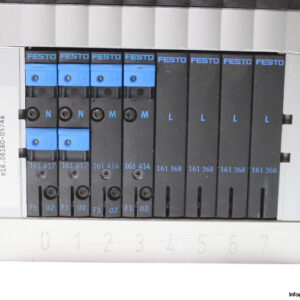

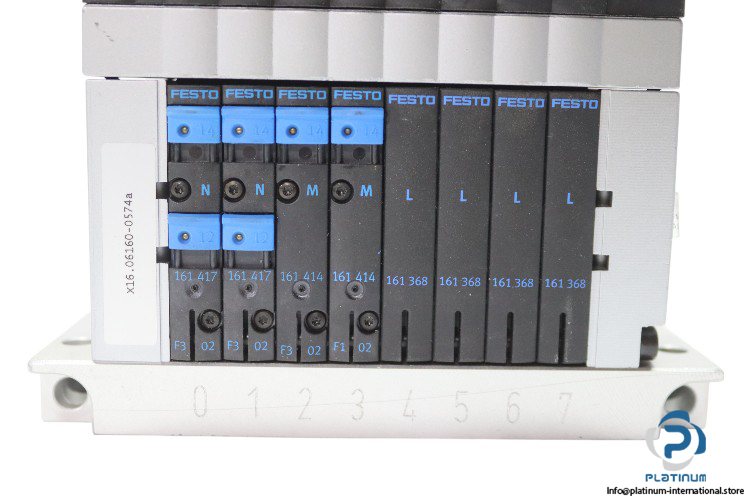

• Valve Functions:
  • 2x Air solenoid valve (FESTO 161417)
  • 2x Air solenoid valve (FESTO 161414)
  • 4x Air solenoid valve (FESTO 161368)
• Width: 10 mm
• Nominal Flow Rate without Fitting: 400 l/m
• Pneumatic Connections:
  • Supply ports (1/11): G1/8
  • Exhaust ports (3/5): G3/8
  • Working ports (2/4): M7
  • Pilot air supply ports (12/14): M5
  • Pilot exhaust air ports (82/84): M5
• Operating Pressure:
  • Port (1): -0.9 / . 10 bar
  • Port (2): 3 / . 8 bar
• Ambient Temperature: -5 / . +50 °C
• Operating Voltage: 24 VDC
• Attached with: FESTO 152423 Multi-Pin
