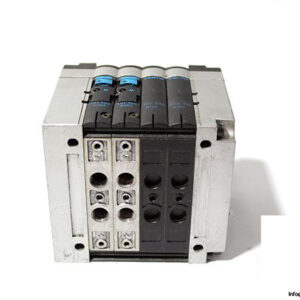

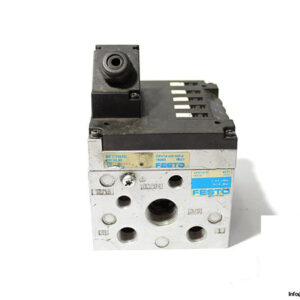

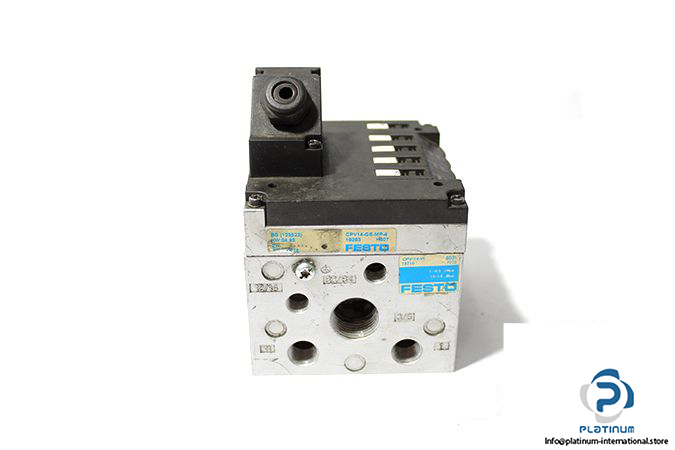

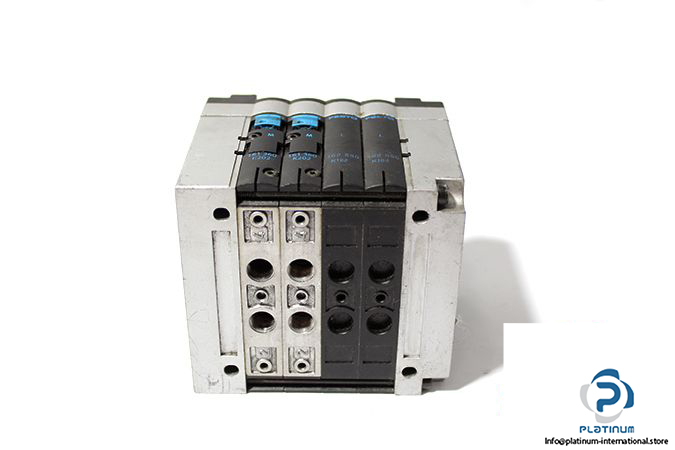

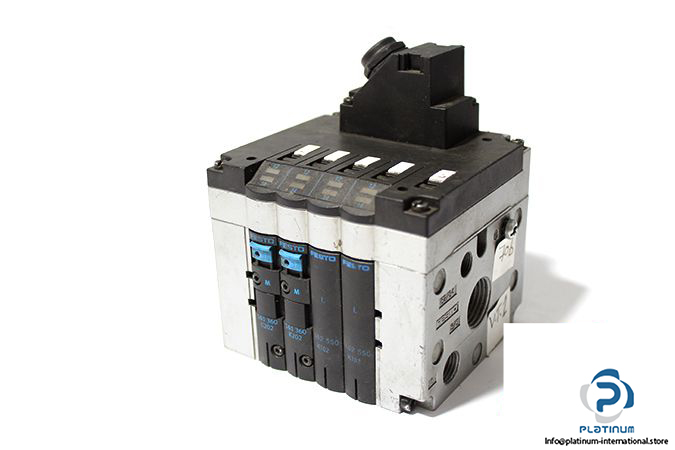

Manufacturer: FESTO

Type: Valve Terminals With 4 Valves

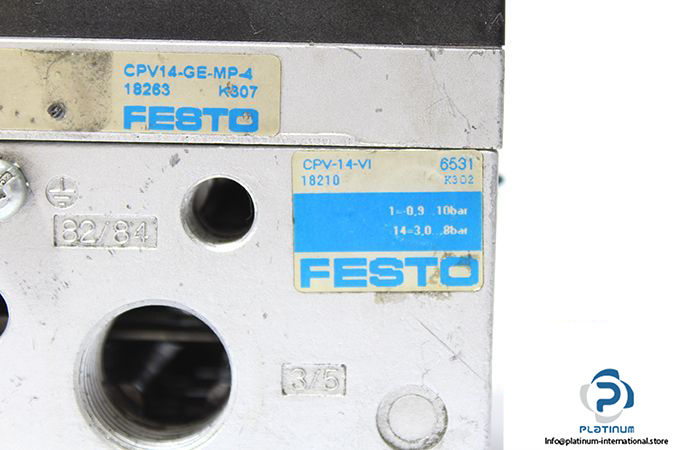

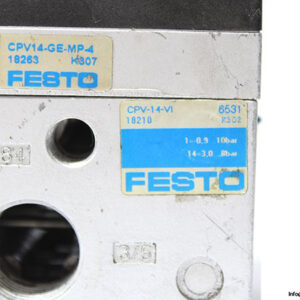

Model: CPV-14-VI

Part No.: 18210

Design: Electromagnetically Actuated Piston Spool Valve

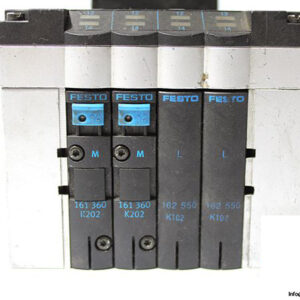

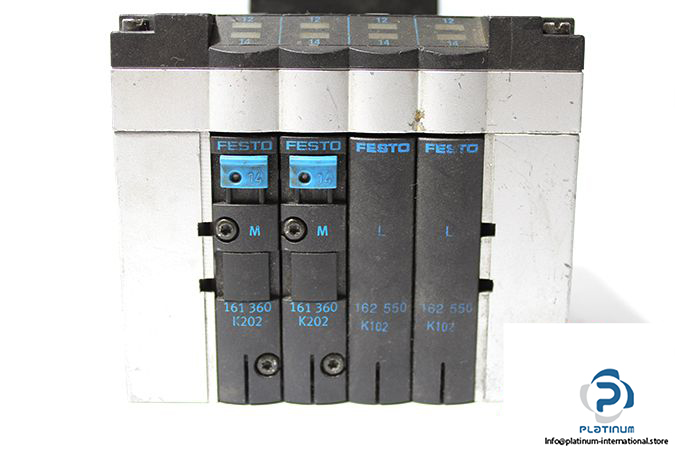

Valve functions:

2x 5/2 Air solenoid valve (FESTO 161360)

2x Separator plate (FESTO 162550)

Width: 14 mm

Nominal Flow Rate without Fitting: 800 l/m

Pneumatic Connections:

Supply ports (1/11): G1/4

Exhaust port (3/5): G1/2

Working ports (2/4): G1/8

Pilot air supply ports (12/14): 1/8

Pilot Exhaust Air Ports (82/84): 1/8

Operating pressure:

Port (1): -0.9 …. 10 bar

Port (14): 3 …. 8 bar

Electrical connection: 9 pin-plug

Ambient Temperature: -5 …. +50 °C

Operating voltage: 24 VDC

Weight: 0.87 kg
