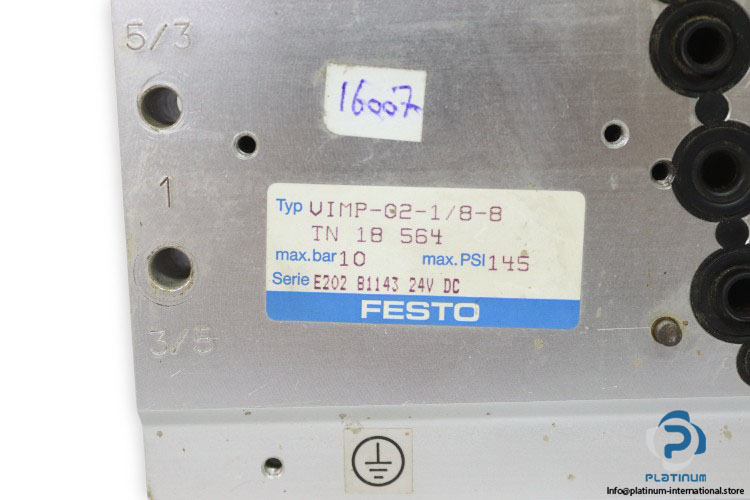

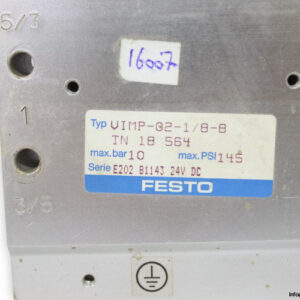

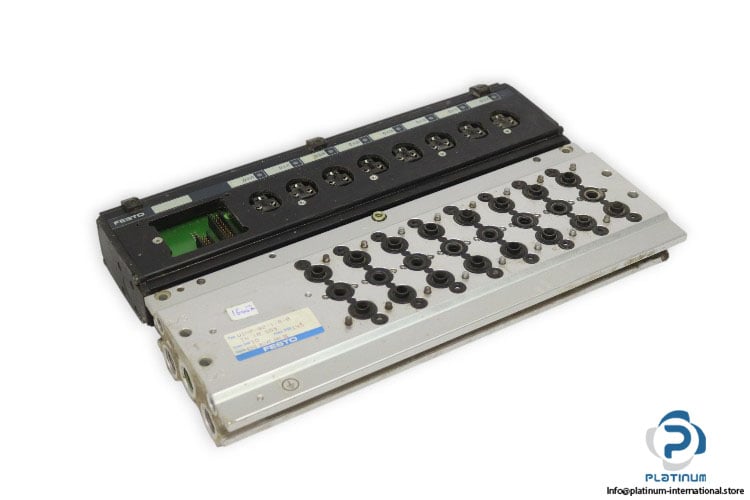

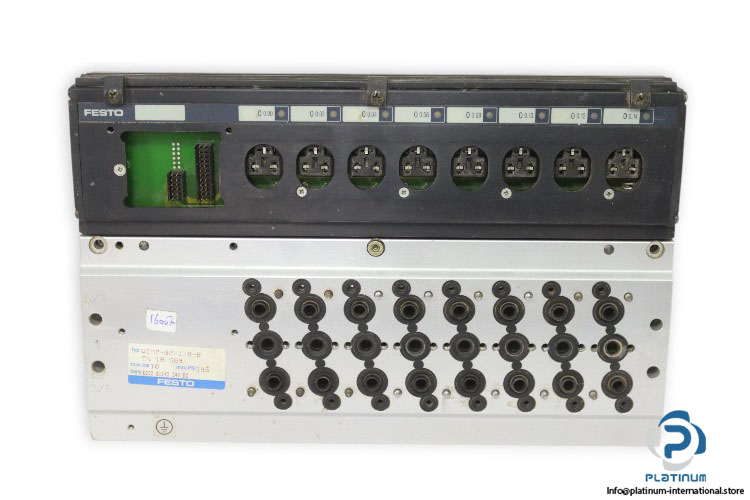

Festo VIMP-02-1/8-8 Valve Terminal

The Festo VIMP-02-1/8-8 is a reliable and efficient valve terminal designed for high-performance pneumatic applications. With electrical actuation and multipol connection, it delivers secure control and flexibility for automation systems. Built from the VIMP series, this terminal is engineered to handle demanding environments with robust flow rates and durable construction.

• Manufacturer: Festo
• Type: Valve Terminal
• Model: VIMP-02-1/8-8
• Part No.: 18 564
• Series: VIMP
• Serial No.: E202 81143 24V DC

Technical Information

• Actuation Type: Electrical
• Electrical Connection: Multipol
• Valve Terminal Type: 02
• Standard Nominal Flow Rate: 750 to 1,000 l/min
• Max. Number of Valve Positions: 8
• Operating Pressure: -0.9 to 10 bar
• Pilot Pressure: 1.5 to 10 bar
• Design Structure: Piston Slide
• Nominal Operating Voltage: 24 V DC
• Medium Temperature: -5 to 50 °C
• Ambient Temperature: -5 to 50 °C
• Port Size: G1/8, G3/8
