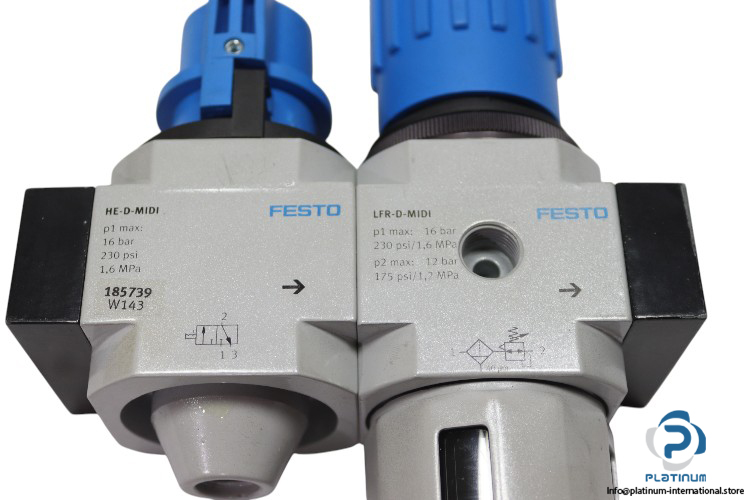

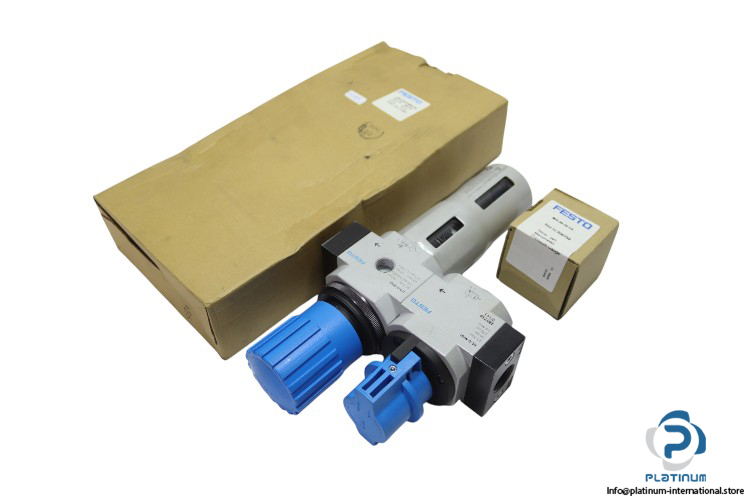

Festo LFR-3/8-D-MIDI-KC Air Preparation Unit
The Festo LFR-3/8-D-MIDI-KC air preparation unit ensures efficient pneumatic performance by offering precise pressure regulation and filtration. Designed with a rotary knob actuator lock and a standard nominal flow rate of 2700 l/min, this unit is ideal for industrial applications requiring reliable air treatment and pressure control.
Manufacturer: FESTO
Type: Air Preparation Unit
Model: LFR-3/8-D-MIDI-KC
Part No.: 185737
Technical Data:
- Size: Midi
- Series: D
- Actuator Lock: Rotary knob with detent
- Mounting Position: Vertical +/- 5°
- Operating Pressure: 1 bar … 16 bar
- Pneumatic Connection 1: G3/8
- Standard Nominal Flow Rate: 2700 l/min
- Pressure Regulation Range: 0.5 bar – 12 bar
- Grade of Filtration: 40 µm
- Housing Material: Die-cast zinc
