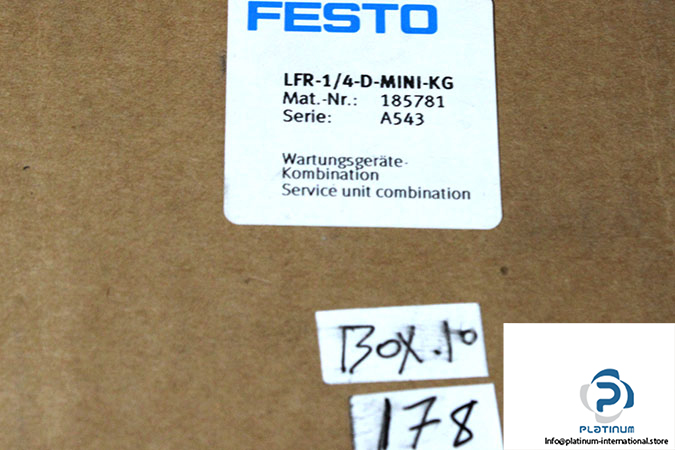

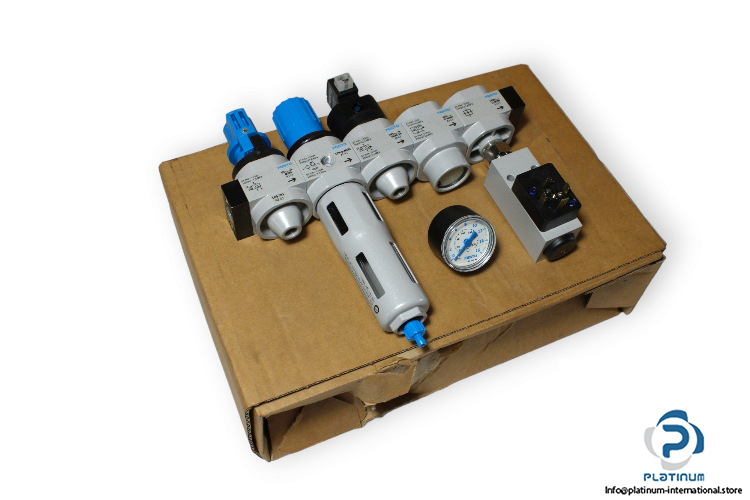

FESTO LFR-1/4-D-MINI-KG SERVICE UNIT COMBINATION

The FESTO LFR14DMINIKG is a compact service unit combination designed for efficient air preparation in pneumatic systems. It integrates multiple components including a filter regulator, pressure gauge, pressure switch, and on/off valves, offering robust performance and modular functionality for industrial applications.

Manufacturer: FESTO
Type: Service Unit Combination
Model: LFR-1/4-D-MINI-KG
Part No.: 185781

Technical Information

• Size: MINI
• Media: Compressed Air, Neutral Gases
• Pressure Regulation Range: 2.5 / 12 bar
• Operating Pressure: 3 / 16 bar / 43.5 / 232 PSI / 0.25 / 1.2 MPa
• Nominal Flow Rate: 715 l/min
• Filtration Grade: 40 micron
• Actuator Lock: Rotary Knob With Detent
• Temperature: -10 / 60 °C
• Pneumatic Connection: G1/4

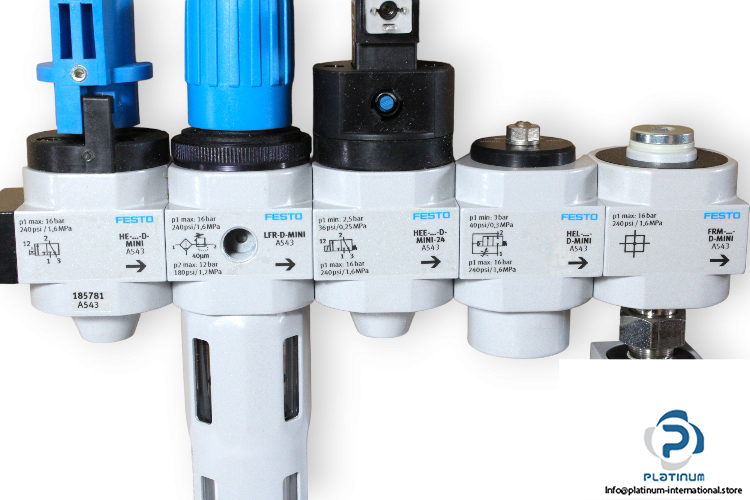

Attachments

1. FESTO LFR-D-MINI FILTER REGULATOR
Type: Filter Regulator
Model: LFR-D-MINI

2. FESTO FRM-D-MINI BRANCHING MODULE
Type: Branching Module
Model: FRM-D-MINI

3. FESTO ON/OFF VALVES

• Model: HEE-D-MINI-24
• Model: HEL-D-MINI
• Model: HE-D-MINI

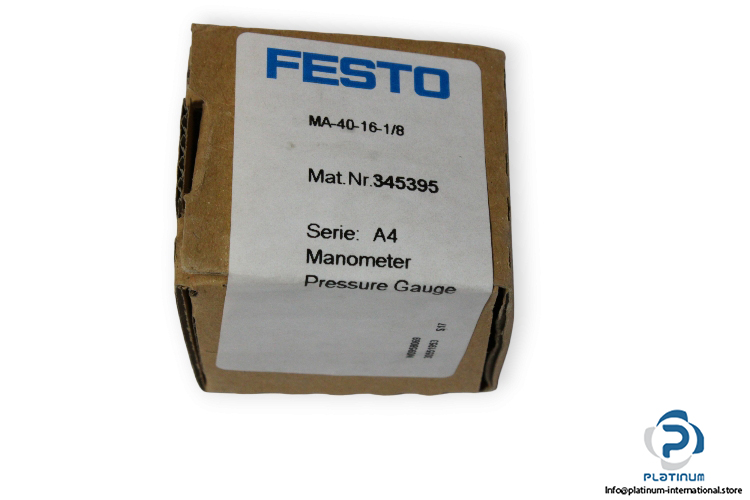

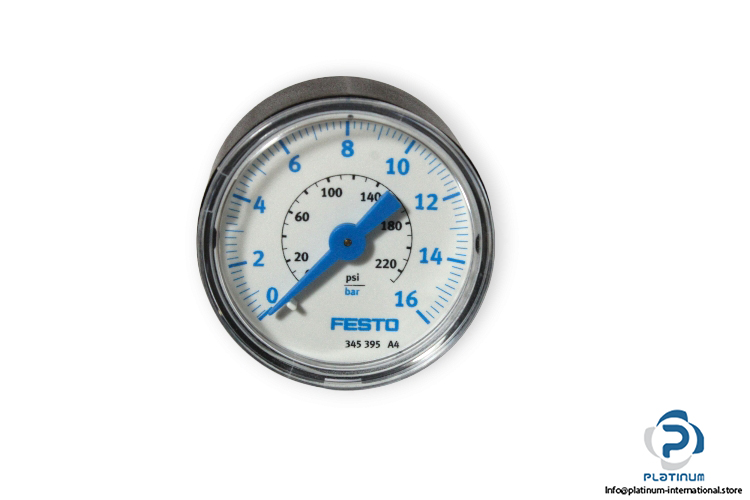

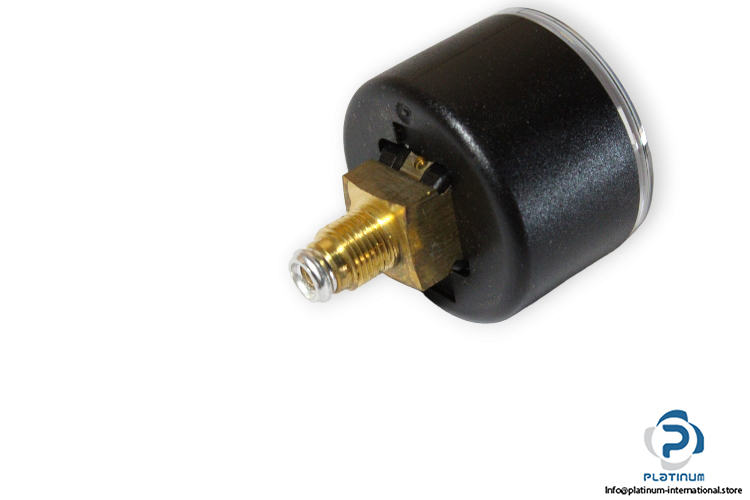

4. FESTO 345395 PRESSURE GAUGE
Type: Pressure Gauge
Model: MA-40-16-1/4
Part No.: 345395

• Operating Medium: Inert Gases, Neutral Fluids
• Operating Pressure Display Range: 0 / 16 bar (0 / 232 PSI)
• Scale: Double Scale / Bar (Outside Scale) / PSI (Inner Scale)
• Material: ABS
• Connection: G 1/4
• Medium Temperature: -20 / 60 °C

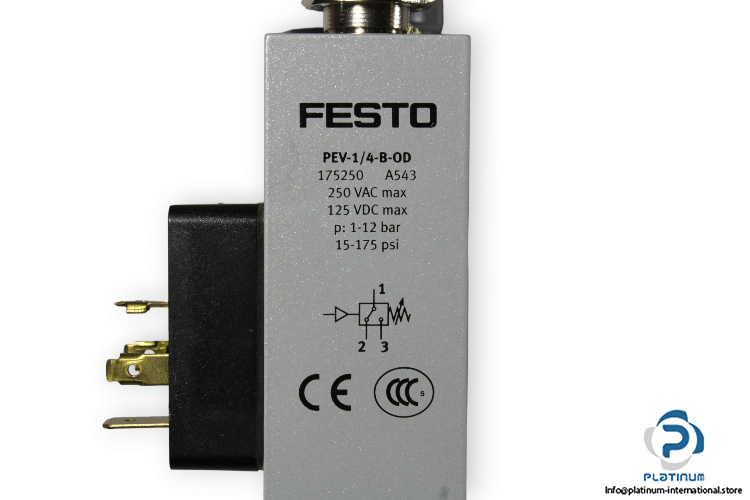

5. FESTO 175250 PRESSURE SWITCH
Type: Pressure Switch
Model: PEV-1/4-B-OD
Part No.: 175250

• Media: Compressed Air, Water
• Operating Pressure: 1 / 12 bar / 15 / 175 PSI
• Switching Element Function: Changeover (CO)
• Supply Voltage: 250 V AC / 125 V DC
• Output Current: 5000 mA
• Connection: G 1/4
• Temperature: -20 / 80 °C
