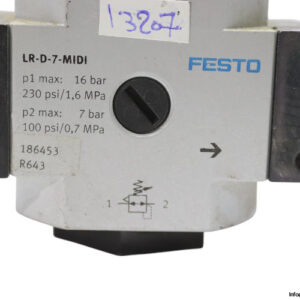

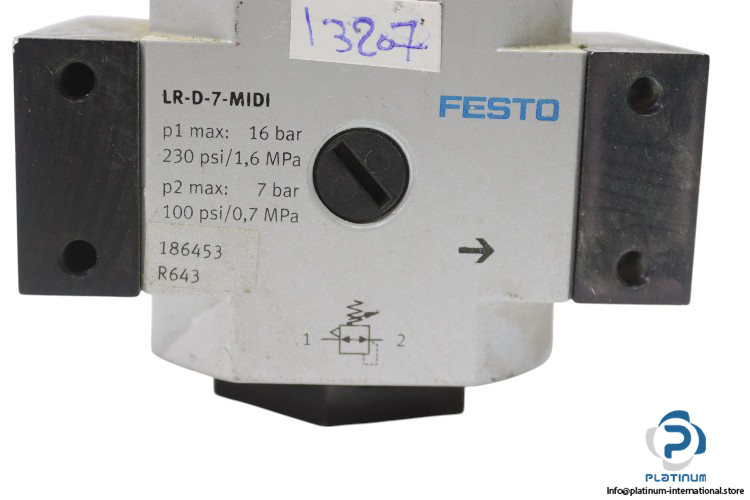

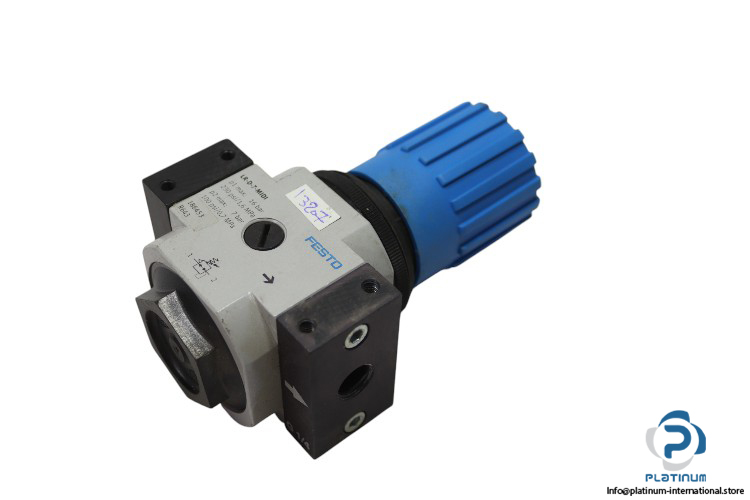

FESTO LR-D-7-MIDI PRESSURE REGULATOR

The FESTO LRD7MIDI Pressure Regulator is designed for precise and reliable control of compressed air or inert gases in industrial pneumatic systems. With a compact MIDI size and robust die-cast zinc construction, it offers consistent pressure regulation and high flow performance, making it suitable for a wide range of automation applications.

Manufacturer: FESTO

Type: Pressure Regulator

Model: LR-D-7-MIDI

Alternative Model: LR-1/4-D-7-MIDI

Part No.: 186453

Size: MIDI

Fluid: Compressed Air / Inert Gas

Pressure Regulation Range: 0.5 … 7 bar

Operating Pressure Max.: 16 bar

P1 Max.: 16 bar / 230 PSI / 1.6 MPa

P2 Max.: 7 bar / 100 PSI / 0.7 MPa

Nominal Flow Rate: 2200 l/min

Pneumatic Connection: G 1/4

Material: Die-Cast Zinc

Ambient Temperature: -10 … 60 °C
