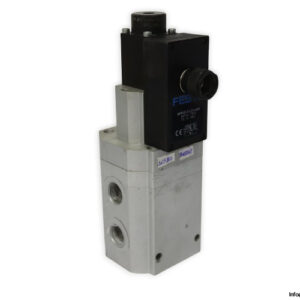

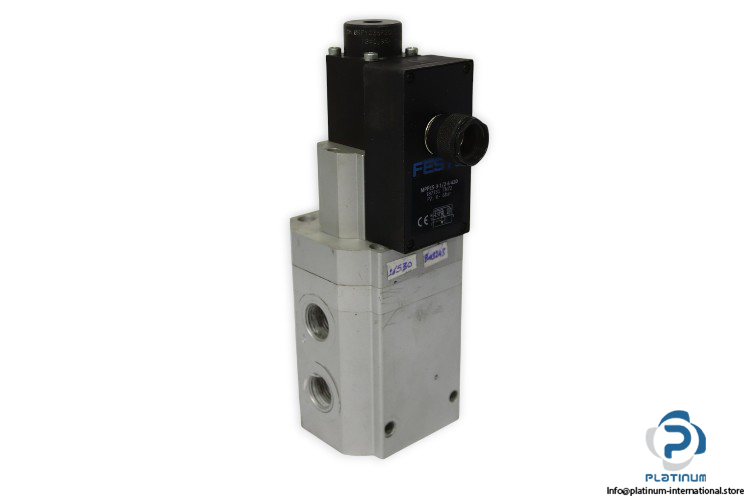

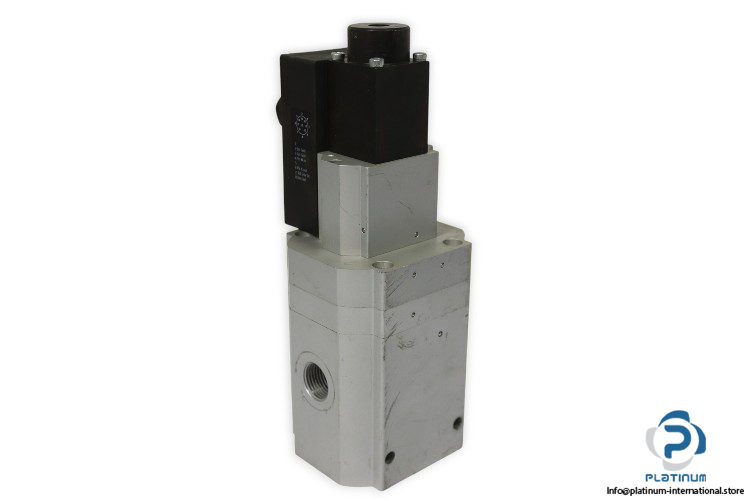

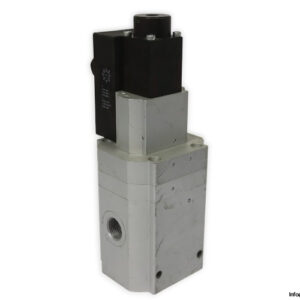

FESTO MPPES-3-1/2-6-420 Proportional Pressure Regulator
The FESTO MPPES-3-1/2-6-420 Proportional Pressure Regulator provides precise electronic control of air pressure for advanced pneumatic applications. With a fast switching response and accurate pressure regulation, this unit ensures stable system performance and efficient air management in automation processes.
Manufacturer: FESTO
Type: Proportional Pressure Regulator

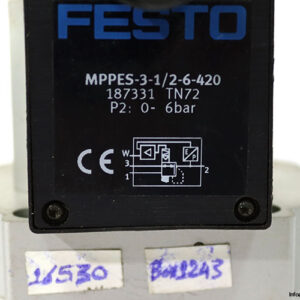

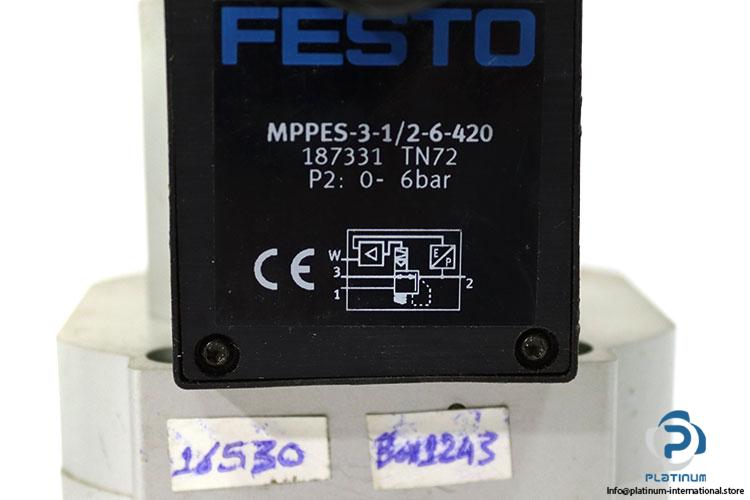

Model: MPPES-3-1/2-6-420
Part Number: 187331
Technical Information
- Nominal Size, Supply: 11 mm
- Nominal Size, Exhaust: 12 mm
- Type of Actuation: Electric
- Valve Function: 3 way proportional pressure regulator, closed
- Pneumatic Connection, Port 1: G1/2
- Pressure Regulation Range: 0 bar to 6 bar
- Inlet Pressure 1: 7 bar to 8 bar
- Maximum Pressure Hysteresis: 0.005 MPa
- Maximum Pressure Hysteresis: 0.05 bar
- Switching Time Off: 660 ms
- Switching Time On: 230 ms
- Operational Voltage Range DC: 18 V to 30 V
- Ambient Temperature: 0 degree Celsius to 50 degree Celsius
- Electrical Connection: 8 pin M16x0.75 plugs to DIN 45326 round design
- Material Housing: Wrought aluminium alloy
- Port Size: G1/2

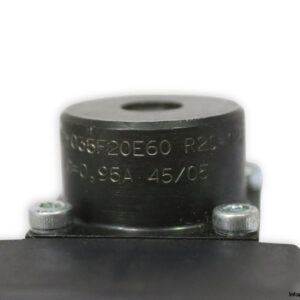

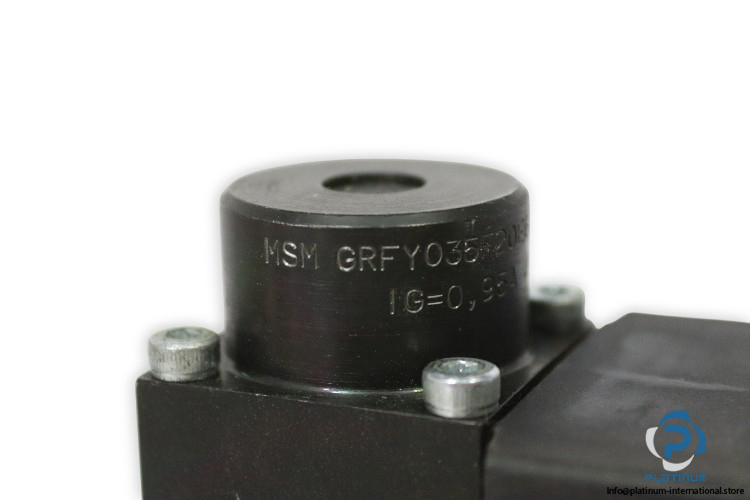

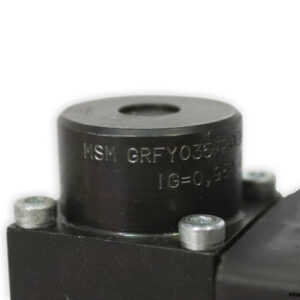

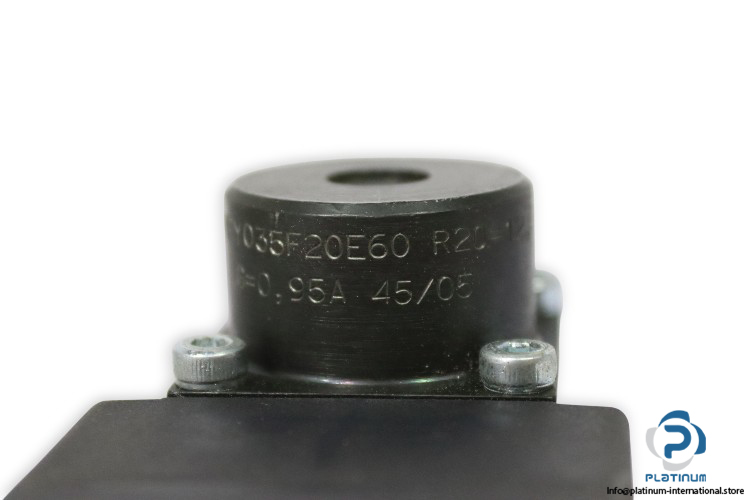

- Attached With: MSM GRFY035F20E60 solenoid coil
- Current: 0.95 A

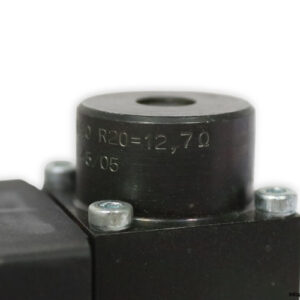

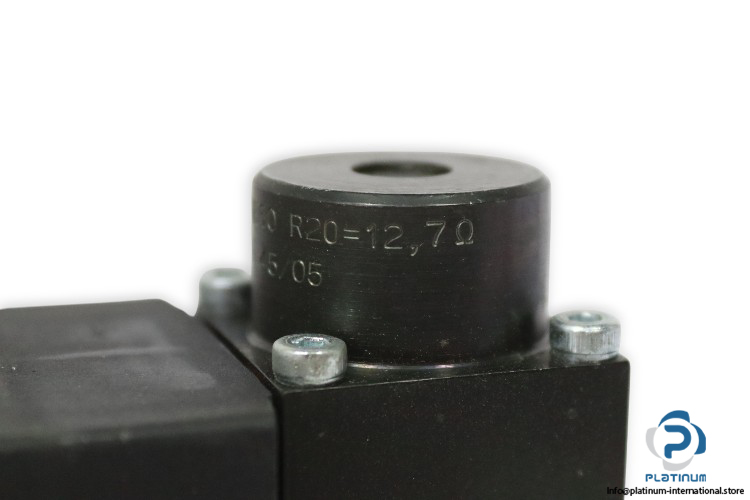

- Resistance (R20): 12.7 ohm
- Marking Code: 45/05
