FESTO MPPES-3-1/8-6-420 PROPORTIONAL-PRESSURE REGULATOR

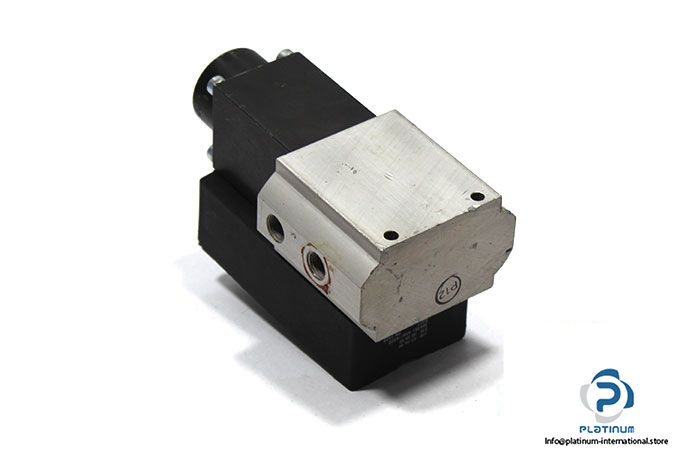

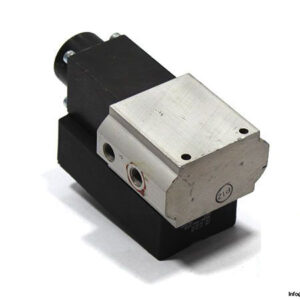

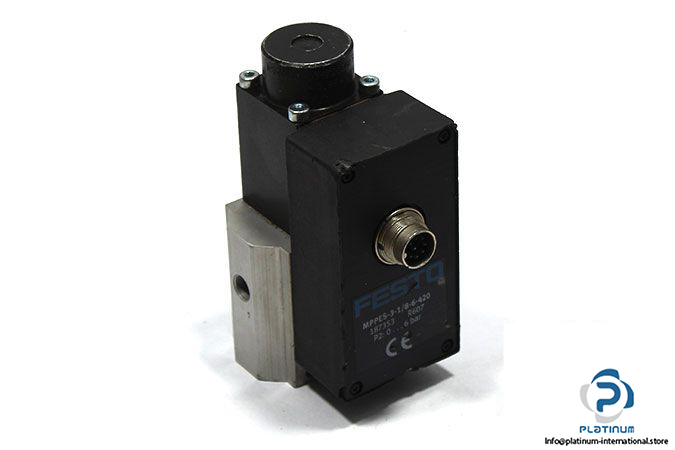

The Festo MPPES-3-1/8-6-420 is a high-precision proportional-pressure regulator engineered for dynamic control of pneumatic systems. With electrical actuation and compact aluminum body, it delivers accurate regulation over a wide voltage and pressure range.
Manufacturer: Festo
Type: Proportional-Pressure Regulator

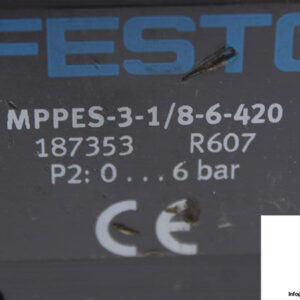

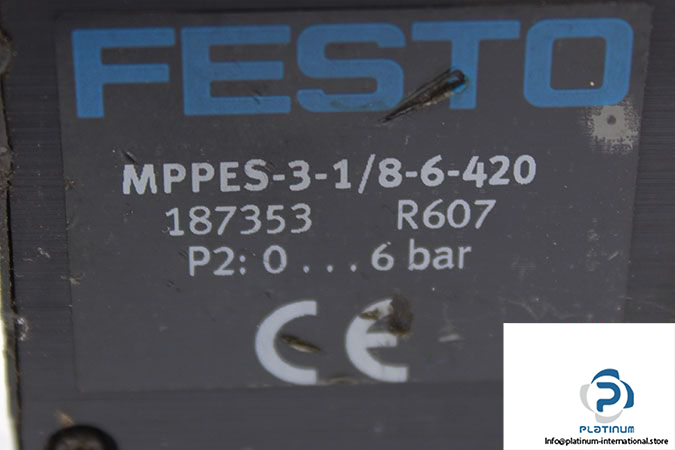

Model: MPPES-3-1/8-6-420
Part No.: 187353
Technical Information
- Fluid: Air
- Type of Actuation: Electrical
- Operating Pressure Max.: 8 bar
- Pressure Regulation Range: 0 / 6 bar
- Inlet Pressure 1: 7 / 8 bar
- Pressure Hysteresis Max.: 0.01 bar
- Operating Voltage Range: 18 / 30 V DC
- Material: Aluminum
- Electrical Connection: 8-Pin
- Port Size: G1/8
- Ambient Temperature: 0 / 50 °C
