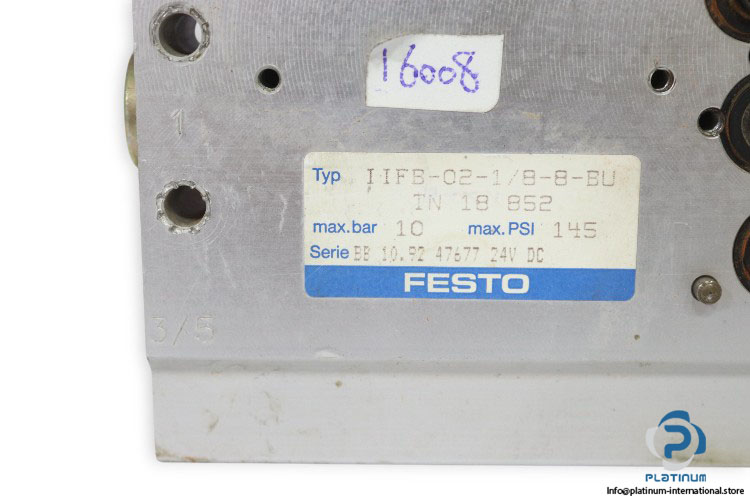

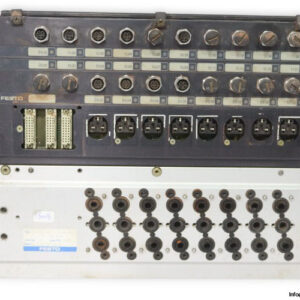

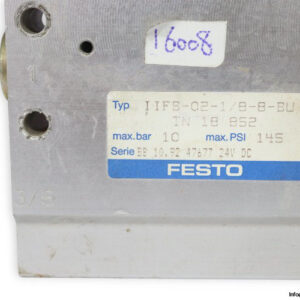

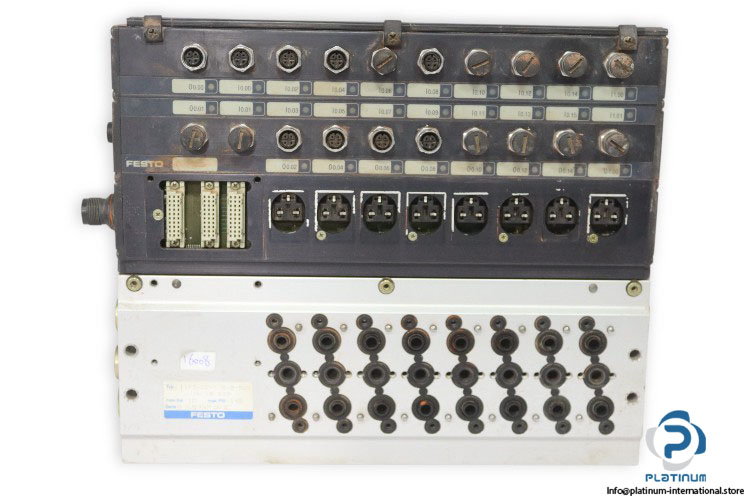

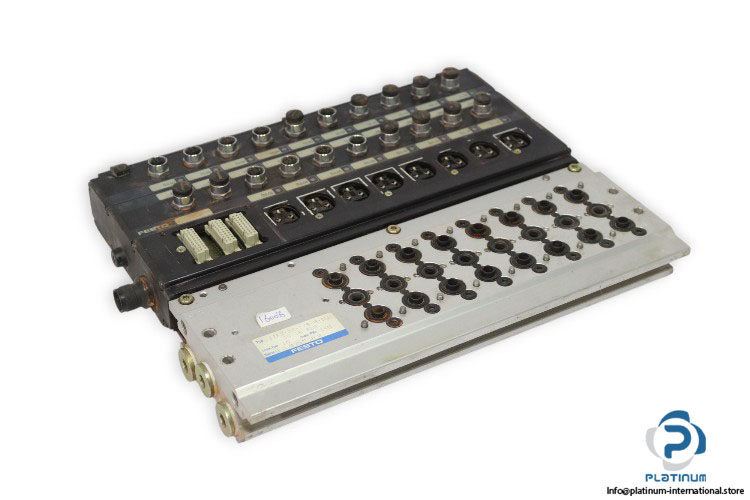

Festo IIFB-02-1/8-8-BU Valve Terminal

The Festo IIFB-02-1/8-8-BU is a high-performance valve terminal engineered for reliable and flexible control in pneumatic and automation applications. Designed with an integrated controller and fieldbus connection, it provides efficient operation, robust performance, and adaptability in demanding environments.

• Manufacturer: Festo
• Type: Valve Terminal
• Model: IIFB-02-1/8-8-BU
• Part No.: 18 852
• Series: IIFB
• Serial No.: BB 10.92 47677 24V DC

Technical Information

• Actuation Type: Electrical
• Electrical Connection: Fieldbus, Integrated Controller
• Valve Terminal Type: 02
• Standard Nominal Flow Rate: 750 to 1,000 l/min
• Max. Number of Valve Positions: 8
• Operating Pressure: -0.9 to 10 bar
• Pilot Pressure: 1.5 to 10 bar
• Design Structure: Piston Slide
• Nominal Operating Voltage: 24 V DC
• Medium Temperature: -5 to 50 °C
• Ambient Temperature: -5 to 50 °C
• Port Size: G1/8, G3/8
