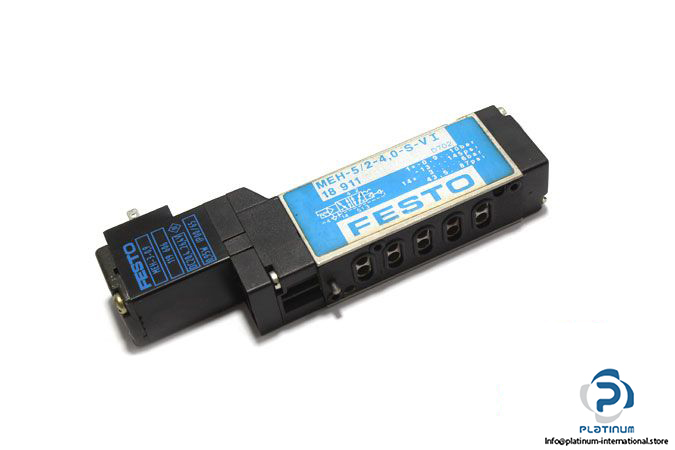

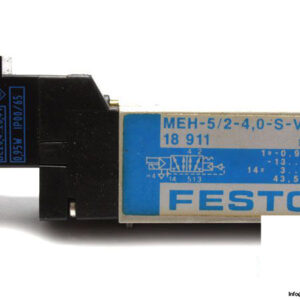

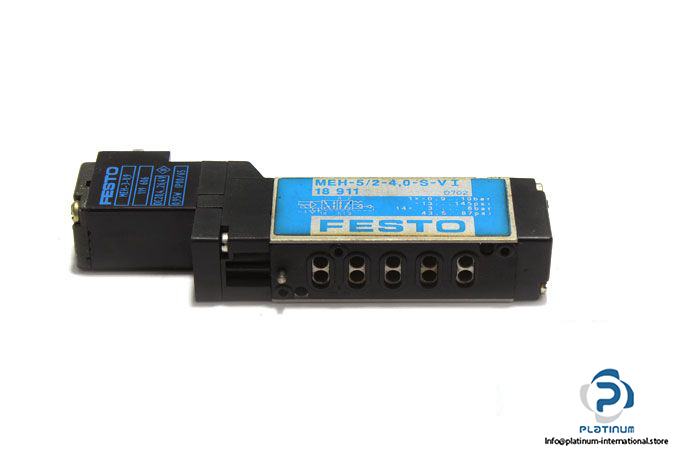

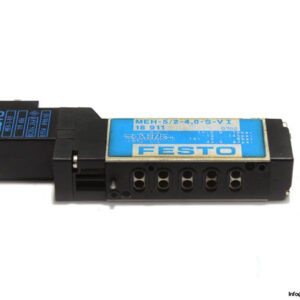

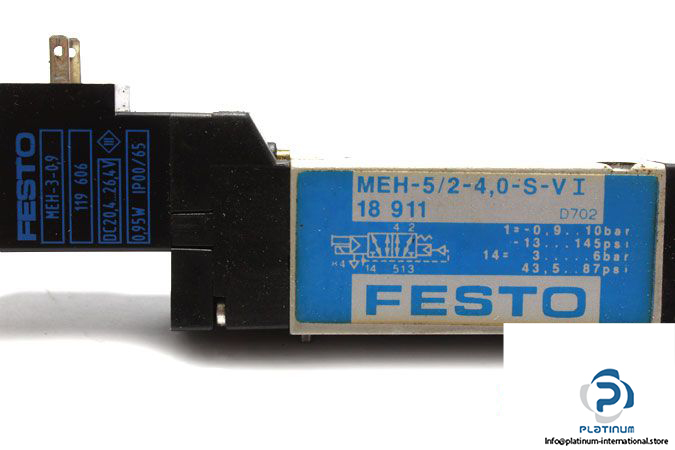

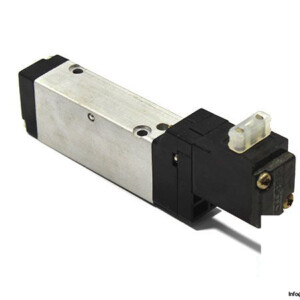

FESTO MEH-5/2-4,0-S-VI SINGLE SOLENOID VALVE WITH SOLENOID COIL

The FESTO MEH-5/2-4,0-S-VI is a high-performance single solenoid valve designed for precise and reliable control in pneumatic systems. This 5/3-way monostable valve features a piston slide design and operates with electrically actuated control. Built with durable aluminium housing, it offers excellent airflow capacity and environmental resistance.

Manufacturer: FESTO
Type: Single Solenoid Valve
Model: MEH-5/2-4,0-S-VI
Part No.: 18911

Technical Information

• Fluid: Air
• Design: Piston Slide
• Function: 5/3-way Monostable
• Type of Actuation: Electrically
• Operating Pressure: -0.9 to 10 bar
• Pilot Pressure: 3 to 6 bar
• Nominal Flow Rate: 500 l/min
• Pneumatic Connection: Sub-Base
• Material: Aluminium
• Ambient Temperature: -5 to 50 °C

Attachment: FESTO 119606 SOLENOID COIL

Manufacturer: FESTO
Type: Solenoid Coil
Model: MEH-3-0.9
Part No.: 119606

Solenoid Coil Specifications

• Supply Voltage: 20.4 to 26.4 V DC
• Power Consumption: 0.95 W
• Protection Class: IP65
