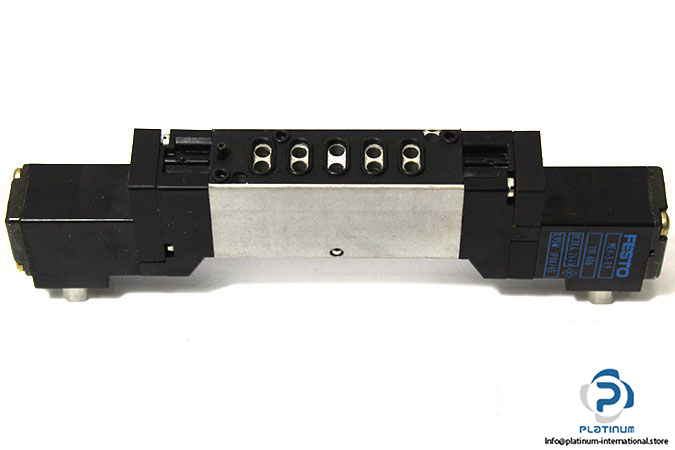

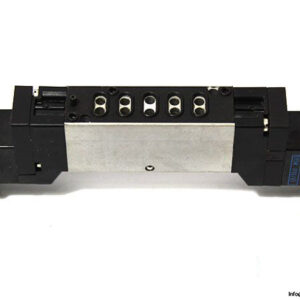

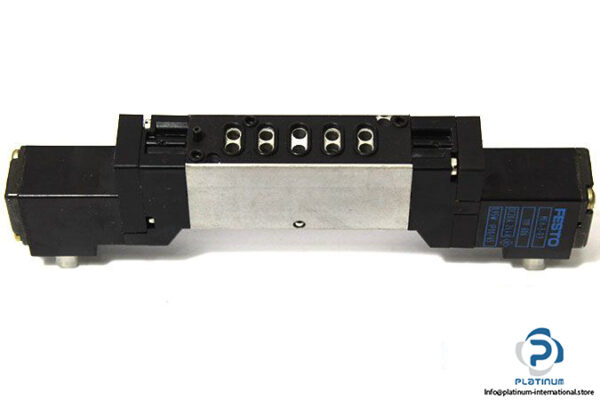

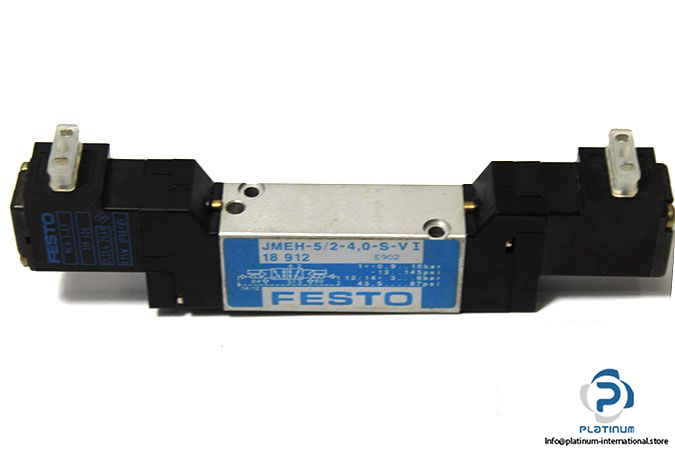

FESTO JMEH-5/2-4,0-S-VI DOUBLE SOLENOID VALVE WITH SOLENOID COIL

The FESTO JMEH-5/2-4,0-S-VI is a high-performance double solenoid valve engineered for precise control of pneumatic air systems. Featuring a 5/2-way function and piston slide design, it ensures fast switching and robust operation across a wide pressure range. This unit is equipped with the FESTO MEH-3-0.9 solenoid coil for dependable electrical actuation.

Manufacturer: FESTO
Type: Double Solenoid Valve

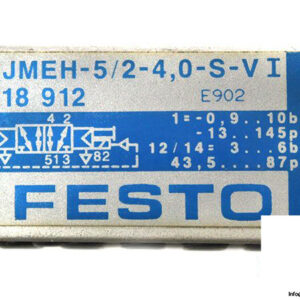

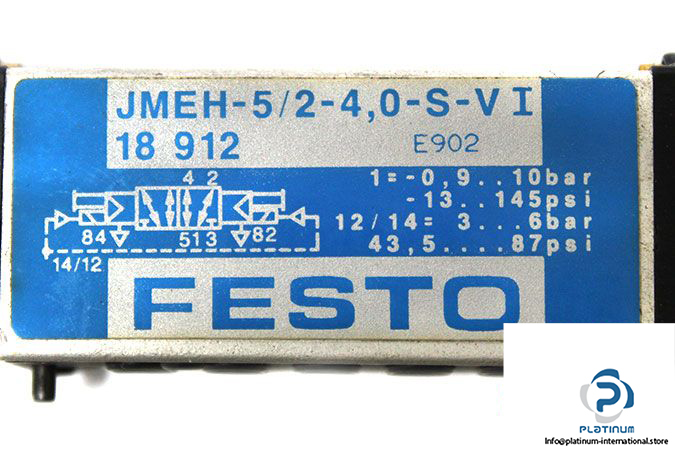

Model: JMEH-5/2-4,0-S-VI
Part No.: 18912

Valve Technical Information

• Fluid: Air
• Design: Piston slide
• Function: 5/2 way
• Type of Actuation: Electrically
• Operating Pressure: -0.9 to 10 bar
• Nominal Flow Rate: 500 l/min
• Pneumatic Connection: Sub-Base
• Material: Die-cast aluminium
• Ambient Temperature: -5 to 50 °C

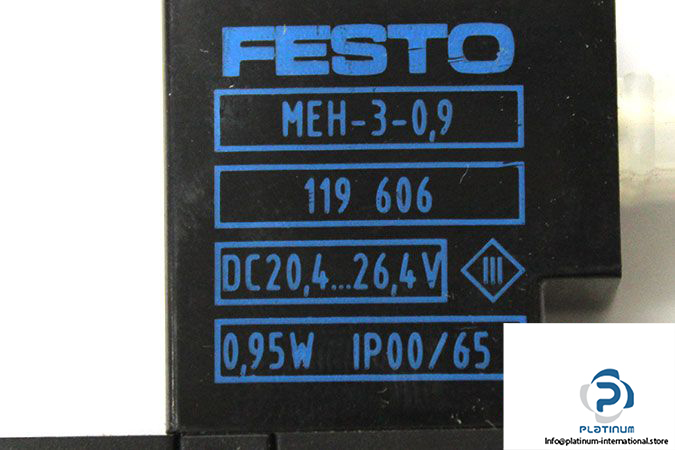

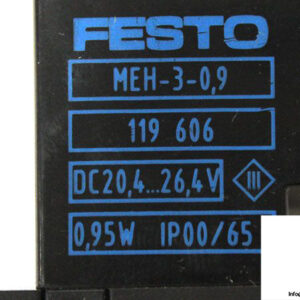

Solenoid Coil Attachment: FESTO MEH-3-0.9

Manufacturer: FESTO
Type: Solenoid Coil
Model: MEH-3-0.9
Part No.: 119606

Solenoid Coil Technical Information

• Supply Voltage: 20.4 to 26.4 V DC
• Power Consumption: 0.95 W
• Protection Class: IP00 / IP65
