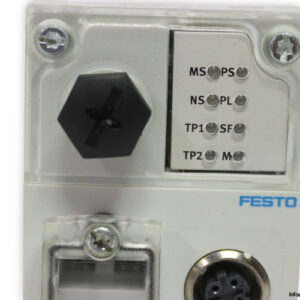

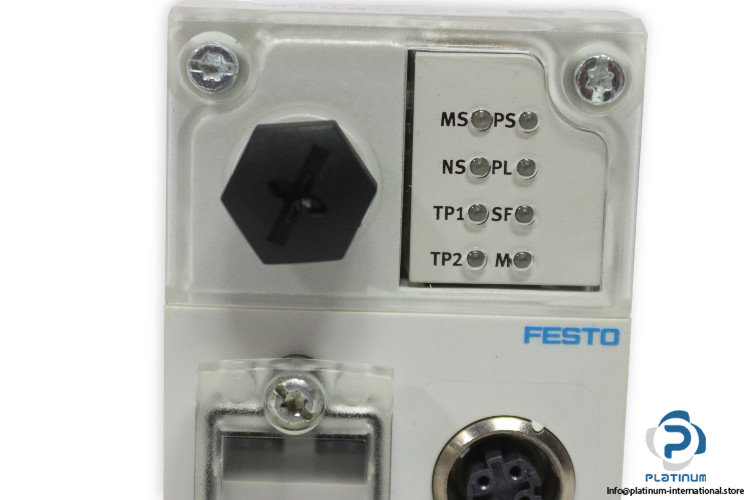

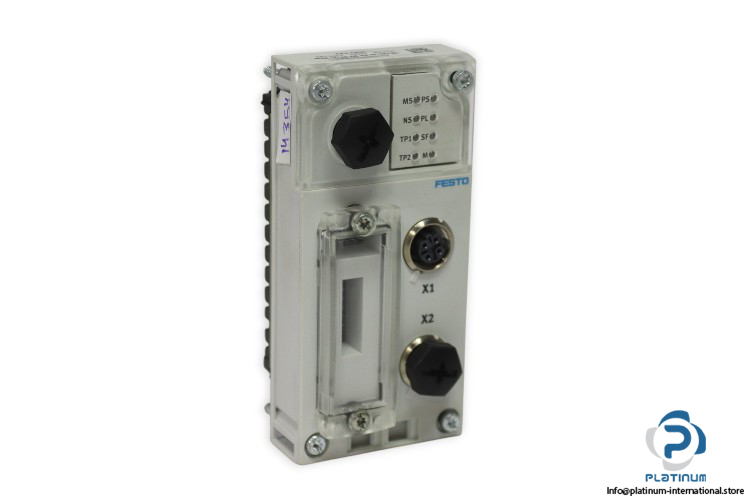

FESTO CPX-FB36 BUS NODE

The FESTO CPX-FB36 is a high-performance bus node designed for modular automation systems, offering reliable connectivity, robust housing, and seamless integration into fieldbus environments.

Manufacturer: FESTO
Type: Bus Node

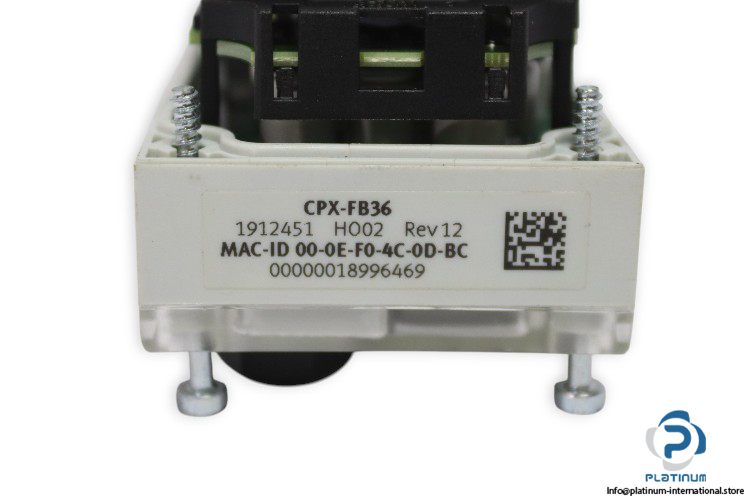

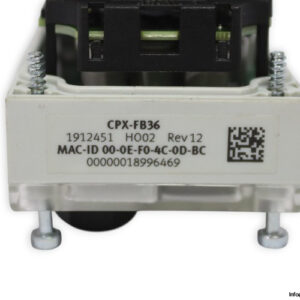

Model: CPX-FB36
Part No.: 1912451
Ref. Code: HO02
MAC ID Address: 00-0E-F0-4C-0D-BC
Ref. No.: 00000018996469
Revision: Rev.12

Technical Information

• Fieldbus Interface: 2x socket, M12x1, 4-pin, D-coded
• Max. Address Capacity Inputs: 64 bytes
• Max. Address Capacity Outputs: 64 bytes
• Operating Voltage Range: 18 V to 30 V DC
• Nominal Operating Voltage: 24 V DC
• Baud Rate: 10/100 Mbit/s
• Dimensions (W x L x H): 50 mm x 107 mm x 50 mm
• Ambient Temperature: -5 to 50 °C
• Degree of Protection: IP65, IP67
• Housing Material: PA-reinforced
