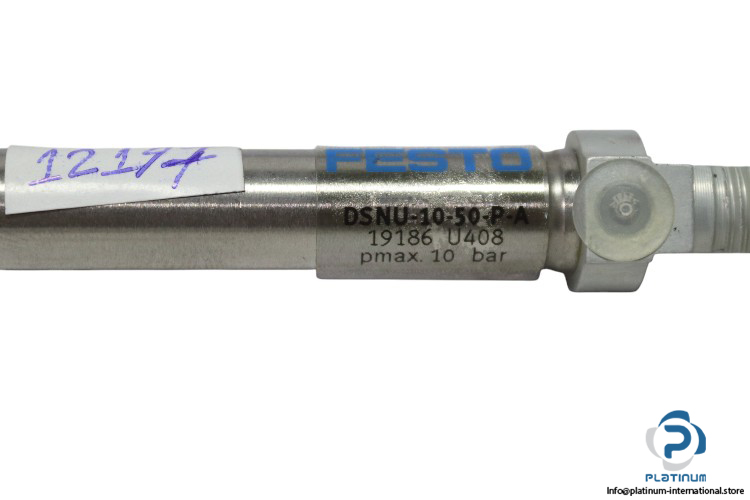

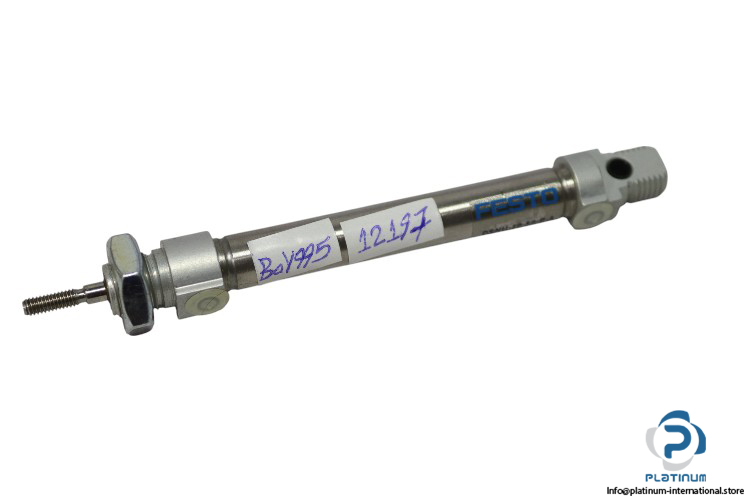

Festo DSNU-10-50-P-A ISO Cylinder

The Festo DSNU-10-50-P-A is a precision-engineered ISO pneumatic cylinder designed for high performance in automation and industrial applications. With its robust materials, compact size, and reliable double-acting operation, it delivers consistent actuation for demanding systems.

Manufacturer: Festo

Type: ISO Cylinder

Model: DSNU-10-50-P-A

Part No.: 19186

Technical Information:

• Piston Diameter: 10 mm
• Stroke: 50 mm
• Pneumatic Connection: 5 mm
• Operating Medium: Compressed Air
• Mode of Operation: Double Acting
• Maximum Pressure: 10 bar
• Piston-Rod End: Male Thread
• Shape: Circular
• Rod Direction: One Side
• Ambient Temperature: -20 to 80 °C
• Material – Cover: Wrought Aluminum Alloy
• Material – Seals: NBR
• Material – Piston Rod: High-Alloy Stainless Steel
