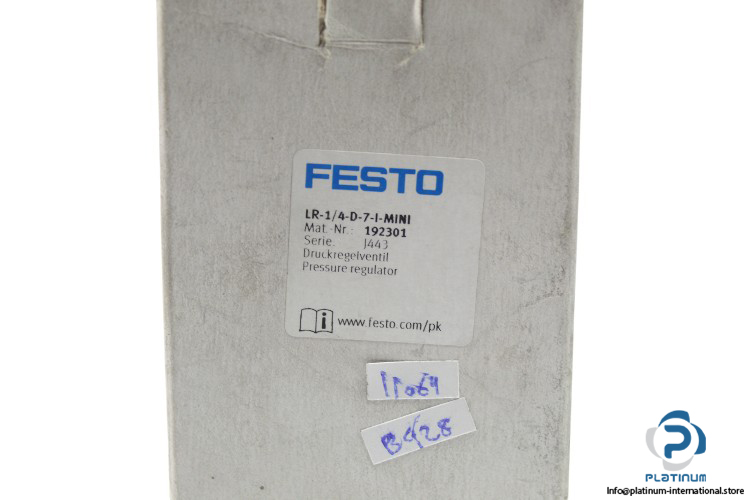

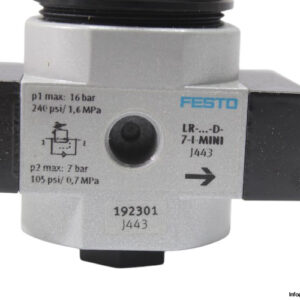

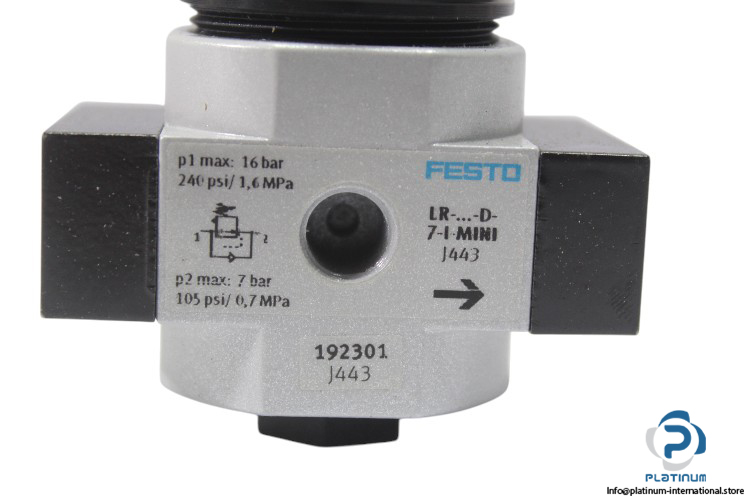

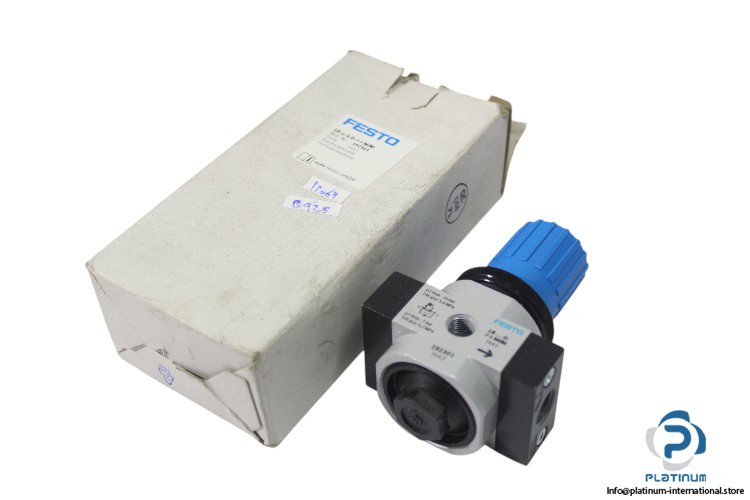

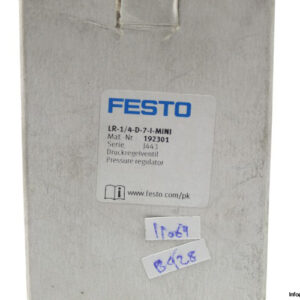

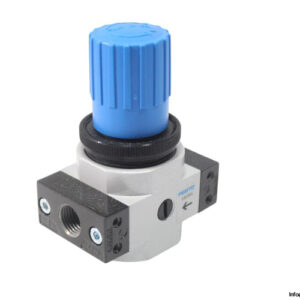

FESTO LR-1/4-D-7-I-MINI Pressure Regulator
The FESTO LR-1/4-D-7-I-MINI Pressure Regulator is designed for precise pressure control in pneumatic systems, ensuring stable operation and optimal air regulation. Engineered for high efficiency, this compact regulator is ideal for industrial applications using compressed air and inert gases.
- Manufacturer: FESTO
- Type: Pressure Regulator
- Model: LR-1/4-D-7-I-MINI
- Part No.: 192301
Technical Information
- Series: D
- Size: MINI
- Fluid: Compressed Air, Inert Gases
- Pressure Regulation Range: 0.5 … 7 bar
- Operating Pressure Range: 1 … 16 bar
- P1 Max.: 16 bar / 240 PSI / 1.6 MPa
- P2 Max.: 7 bar / 105 PSI / 0.7 MPa
- Nominal Flow Rate: 1600 l/min
- Actuator Lock: Rotary Knob with Detent
- Port Size: G 1/4 & G 1/8
- Medium/Ambient Temperature: -10 … 60 °C
