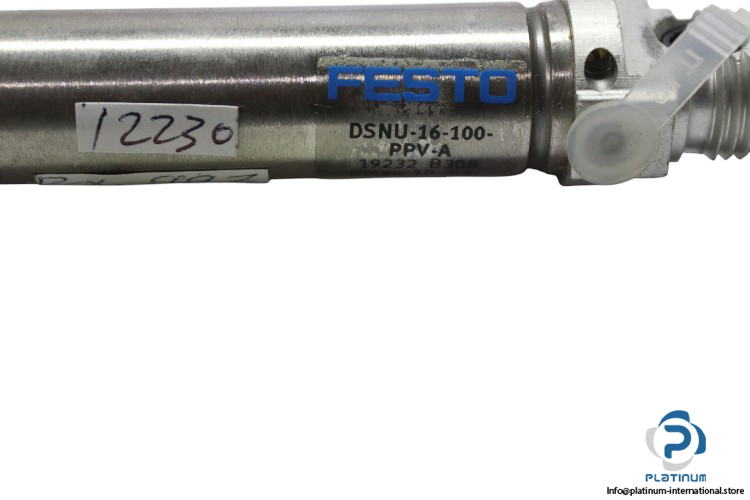

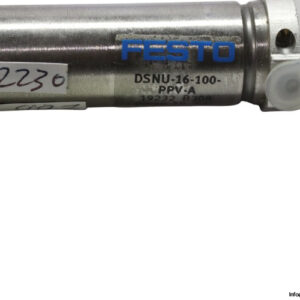

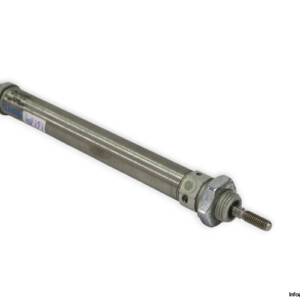

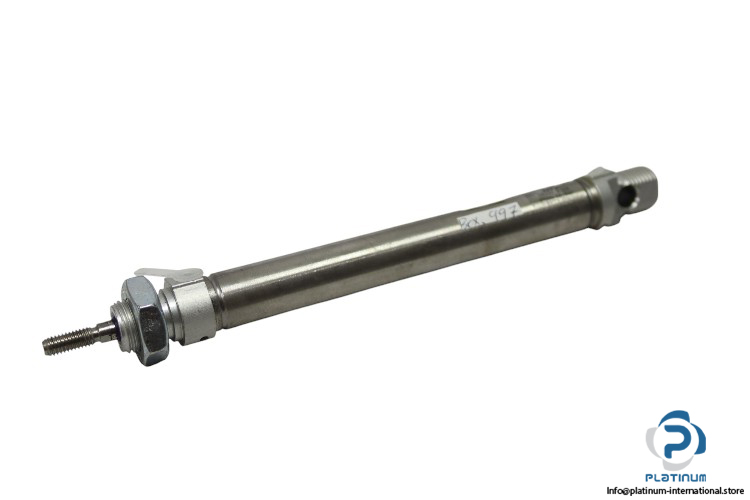

Festo DSNU-16-100-PPV-A ISO Cylinder

The Festo DSNU-16-100-PPV-A is a compact ISO-standard pneumatic cylinder engineered for precise linear motion in industrial automation systems. Designed for durability and performance, this double-acting cylinder features a corrosion-resistant body and is suitable for high-pressure operations using compressed air.

Manufacturer: Festo

Type: ISO Cylinder

Model: DSNU-16-100-PPV-A

Part No.: 19232

Technical Information:

• Piston Diameter: 16 mm
• Stroke: 100 mm
• Port Size: 5 mm
• Mode of Operation: Double Acting
• Operating Medium: Compressed Air
• Maximum Operating Pressure: 10 bar
• Shape: Circular
• Ambient Temperature: -20 to 80 °C
• Piston Rod Thread: Male
• Rod Direction: One Side
• Material for Cover: Wrought Aluminum Alloy
• Material for Seals: NBR
• Material for Piston Rod: High Alloy Steel, Non-Corrosive
• Material for Cylinder Barrel: High Alloy Steel, Non-Corrosive
