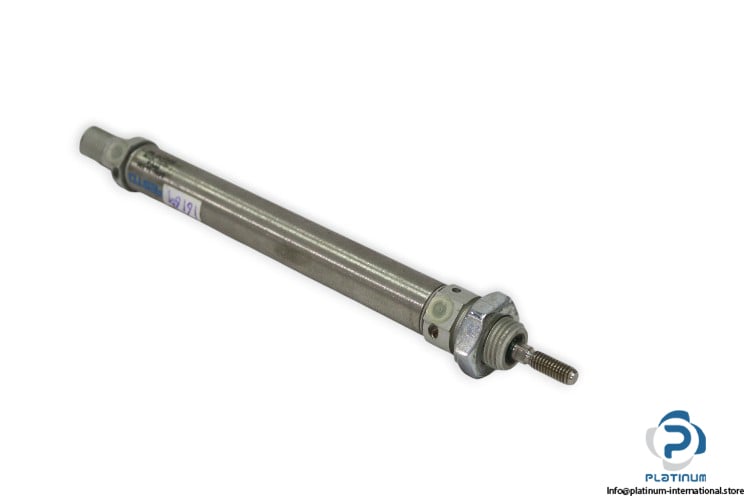

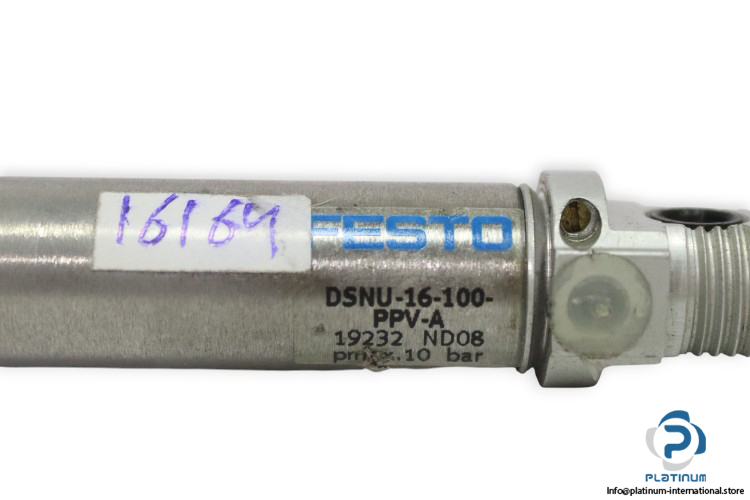

Festo DSNU-16-100-PPV-A ISO Cylinder

The Festo DSNU-16-100-PPV-A is a high-quality ISO pneumatic cylinder designed for precise and efficient motion control. With durable construction and double-acting operation, it ensures smooth performance and long service life in industrial automation applications.

Manufacturer: Festo
Type: ISO Cylinder
Model: DSNU-16-100-PPV-A
Part No.: 19232

Technical Information

Piston Diameter: 16 mm
Stroke: 100 mm
Port Size: 5 mm
Mode of Operation: Double Acting
Operating Medium: Compressed Air
Maximum Operating Pressure: 10 bar
Shape: Circular
Ambient Temperature: -20 to 80 °C
Piston Rod Thread: Male
Rod Direction: One Side
Material for Cover: Wrought Aluminum Alloy
Material for Seals: NBR
Material for Piston Rod: High Alloy Steel, Non-Corrosive
Material for Cylinder Barrel: High Alloy Steel, Non-Corrosive
