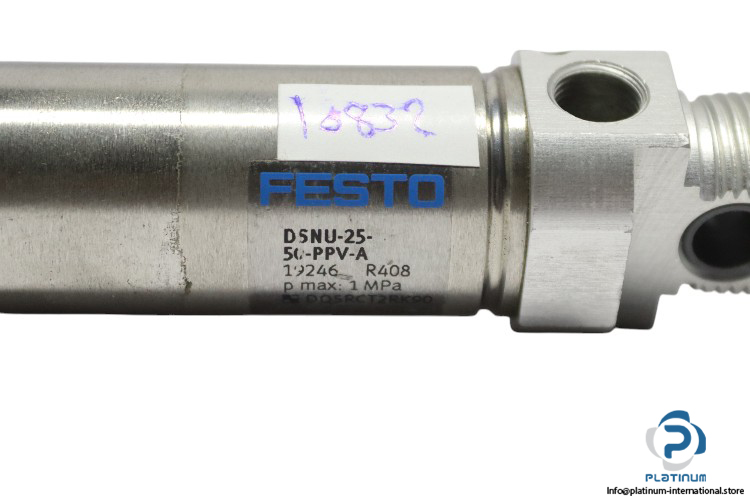

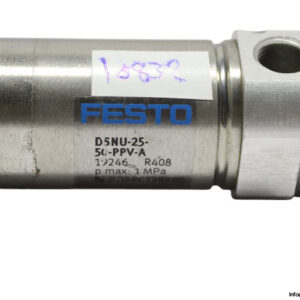

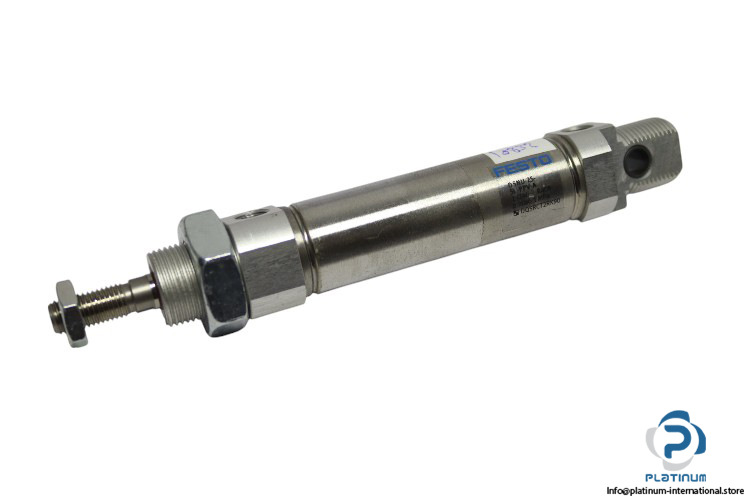

FESTO DSNU-25-50-PPV-A Round Cylinder
The FESTO DSNU-25-50-PPV-A Round Cylinder is a high-performance pneumatic actuator designed for precise and efficient motion control in industrial applications. Built for durability and reliability, this double-acting cylinder operates with compressed air, ensuring smooth and consistent performance under varying pressure conditions.
- Manufacturer: FESTO
- Type: Round Cylinder
- Model: DSNU-25-50-PPV-A
- Part No.: 19246
Technical Information
- Fluid: Compressed Air
- Piston Diameter: 25 mm
- Stroke Length: 50 mm
- Operating Pressure: 1 / 10 bar
- Piston-Rod End: Male Thread
- Operation Mode: Double Acting
- Port Size: G 1/8
- Ambient Temperature: -20 / 80 °C
