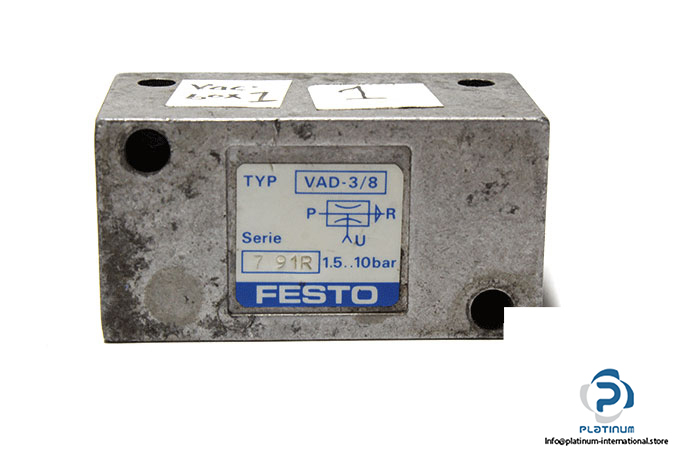

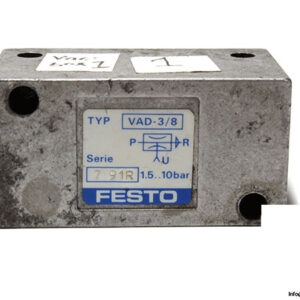

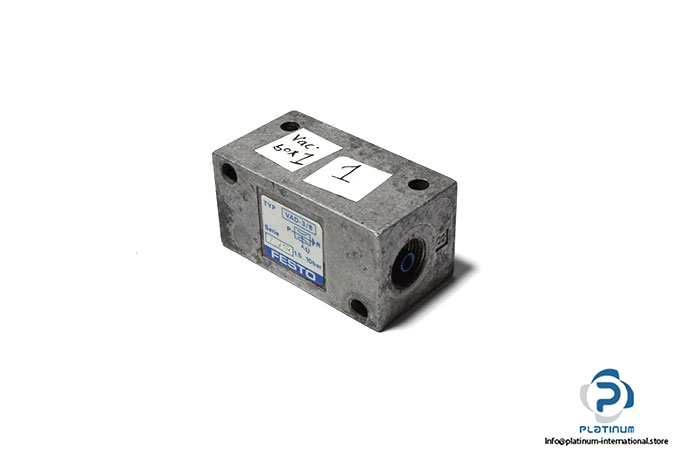

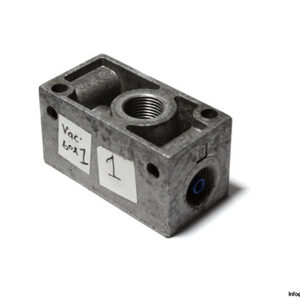

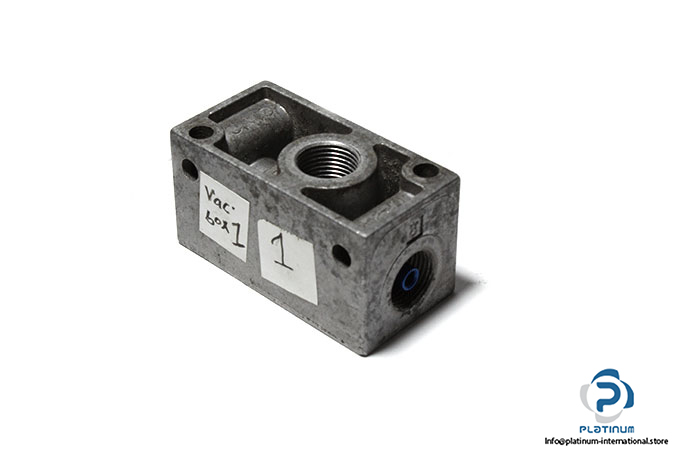

FESTO VAD-3/8 VACUUM GENERATOR
The FESTO VAD38 is a high-performance vacuum generator engineered for efficient pneumatic systems. Designed in a T-shape housing and equipped with a Laval nozzle, it delivers high vacuum capabilities under a wide pressure range and extreme temperatures.
Manufacturer: FESTO
Type: Vacuum Generator
Model: VAD-3/8
Part No.: 19294
Technical Information
- Design: T-Shape
- Nominal Width of Laval Nozzle: 1.5 mm
- Ejector Characteristics: High Vacuum
- Operating Pressure: 1.5 / 10 bar
- Vacuum Max.: 80%
- Vacuum / Pneumatic Connection 1,3: G3/8
- Housing Material: Die-Cast Aluminum
- Medium Temperature: -20 / 80 °C
