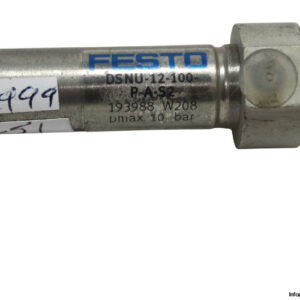

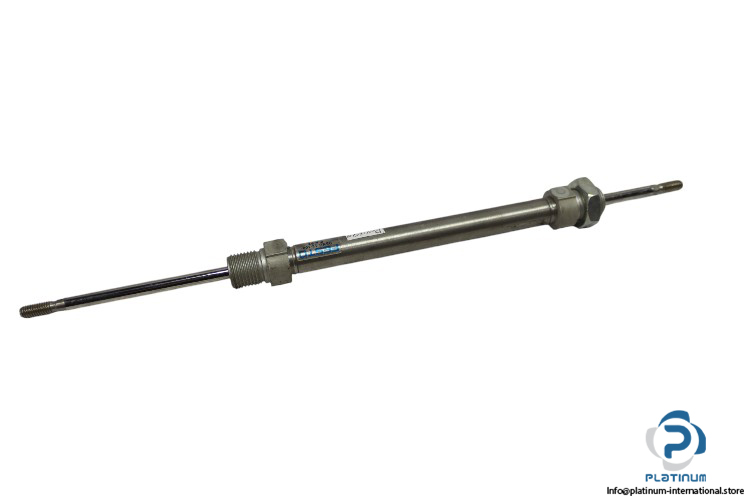

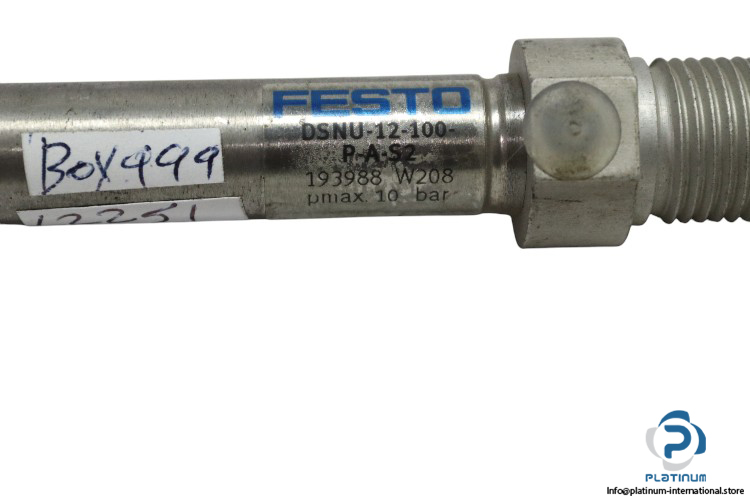

Festo DSNU-12-100-P-A-S2 ISO Cylinder “ Part No. 193988

The Festo DSNU-12-100-P-A-S2 is a compact ISO pneumatic cylinder built for reliable motion control in industrial applications. Designed with high-performance materials and dual cushioning systems, it ensures precise, smooth, and durable operation under high pressure and temperature ranges.

Manufacturer: Festo

Type: ISO Cylinder

Model: DSNU-12-100-P-A-S2

Part No.: 193988

Technical Information:

• Stroke: 100 mm
• Piston Diameter: 12 mm
• Cushioning: Elastic cushioning rings/pads at both ends, Pneumatic cushioning adjustable at both ends
• Port Size: 5 mm
• Mode of Operation: Double-Acting
• Operating Medium: Compressed Air
• Maximum Operating Pressure: 10 bar
• Ambient Temperature: -20 to 120 °C
• Cover Material: Wrought Aluminum Alloy
• Material Seals: NBR
• Material “ Piston Rod: High-Alloy Stainless Steel
• Material “ Cylinder Barrel: High-Alloy Stainless Steel
