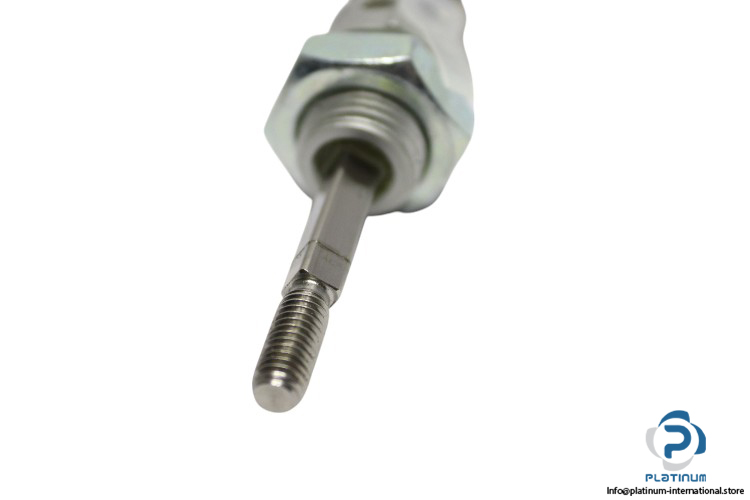

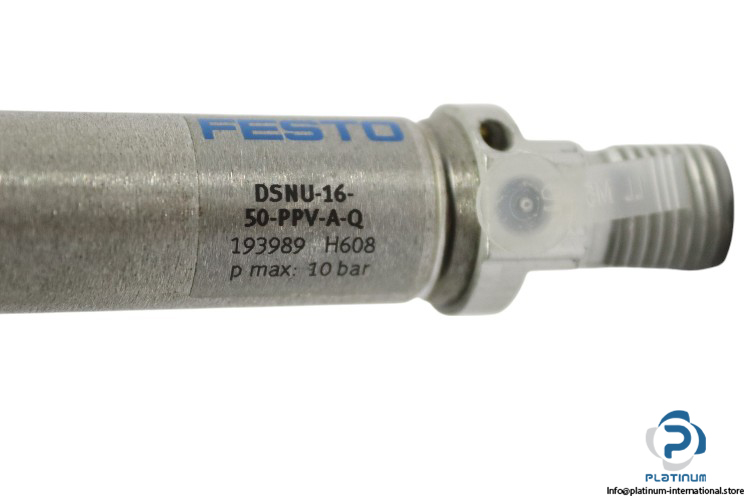

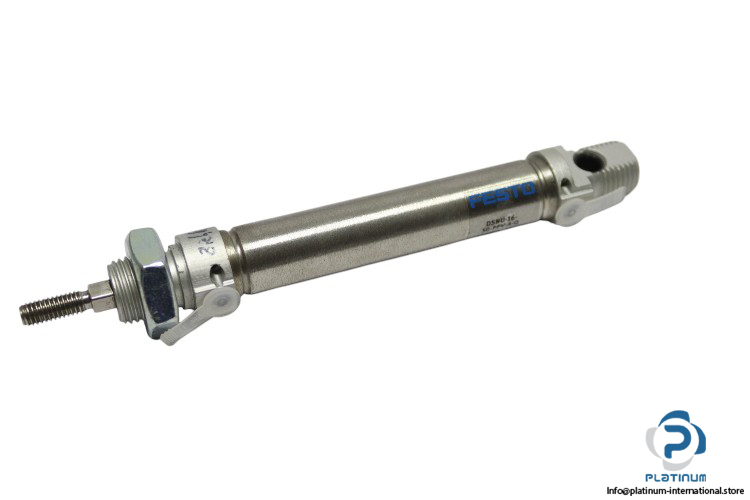

FESTO DSNU-16-50-PPV-A-Q ISO Cylinder
The FESTO DSNU-16-50-PPV-A-Q ISO Cylinder is a high-performance pneumatic actuator designed for precision motion control. With a robust stainless steel construction and double-acting operation, it ensures durability, reliability, and efficient performance in demanding industrial applications. Equipped with elastic cushioning at both ends, this cylinder provides smooth operation and reduced wear.
- Manufacturer: FESTO
- Type: ISO Cylinder
- Model: DSNU-16-50-PPV-A-Q
- Part No.: 193989
Technical Specifications
- Piston Diameter: 16 mm
- Stroke: 50 mm
- Cushioning: Elastic cushioning rings/pads at both ends
- Position Sensing: For proximity sensor
- Operating Pressure: 1 bar … 10 bar
- Ambient Temperature: -20 °C … 120 °C
- Mode of Operation: Double acting
- Material of Cylinder Barrel: High-alloy stainless steel
- Port Size: 5 mm
