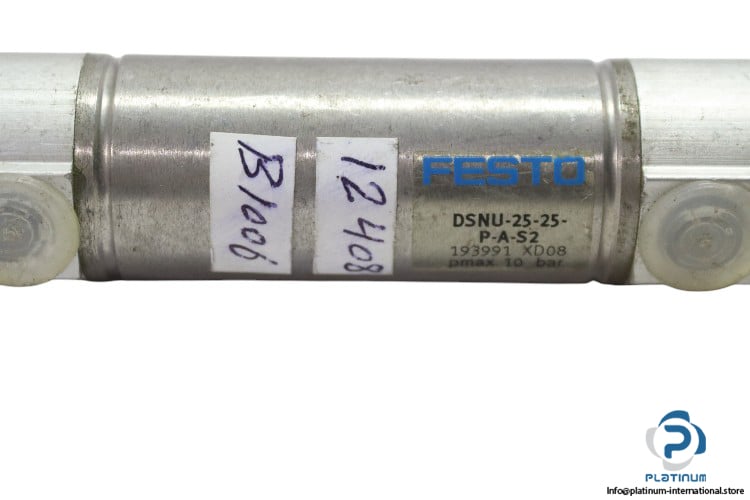

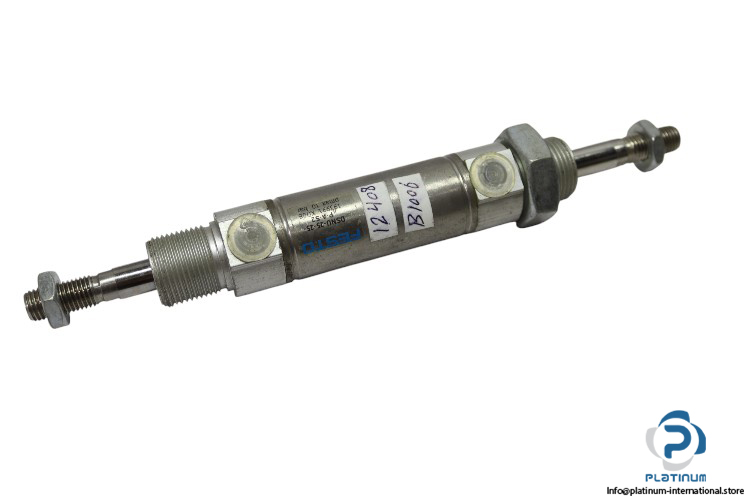

Festo DSNU-25-25-P-A-S2 Round Cylinder “ Part No. 193991
The Festo DSNU-25-25-P-A-S2 is a compact and durable round cylinder engineered for accurate linear motion in pneumatic automation systems. It features a 25 mm piston diameter, a 25 mm stroke, and dual male piston rod threads for flexible mounting options. Designed to handle harsh industrial conditions, this double-acting cylinder includes elastic cushioning at both ends for smooth performance.
Manufacturer: Festo
Type: Round Cylinder
Model: DSNU-25-25-P-A-S2
Part No.: 193991
Technical Information:
- Media: Compressed Air
- Cushioning: Elastic cushioning rings/plates at both ends
- Piston Diameter: 25 mm
- Stroke: 25 mm
- Pneumatic Connection: G1/8
- Operation Mode: Double Acting
- Piston Rod Thread: 2 Male (both sides)
- Shape: Circular
- Operation Pressure: Max. 10 bar
- Ambient Temperature: -20 to 120 °C
- Material “ Cover: Wrought Aluminum Alloy
- Material “ Piston Rod: High-Alloy Stainless Steel
