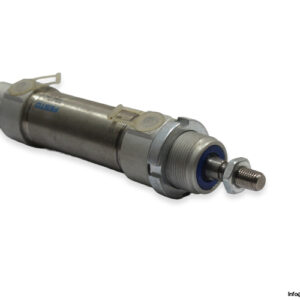

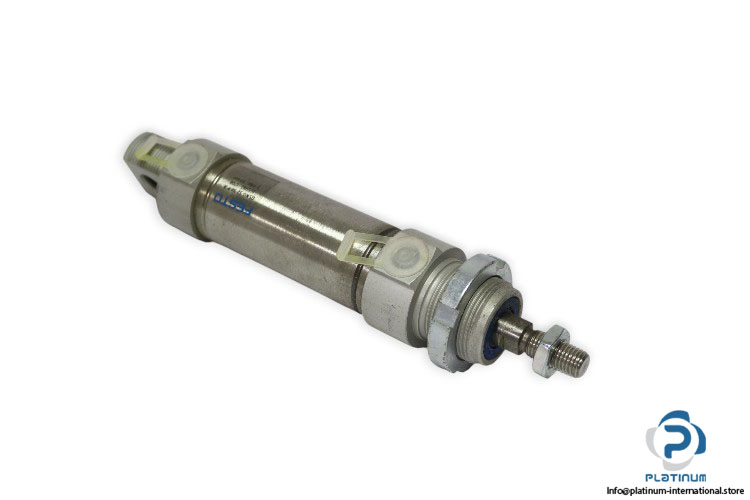

Festo DSNU-32-50-P-A Round Cylinder
The Festo DSNU-32-50-P-A is a high-performance pneumatic round cylinder designed for reliable operation in automation and industrial applications. With a 50 mm stroke length and 32 mm piston diameter, this double-acting cylinder ensures precise motion control, durability, and long service life under demanding conditions.
Manufacturer: Festo
Type: Round Cylinder / Piston Rod Cylinder

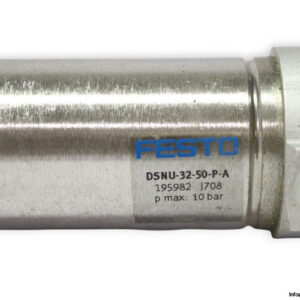

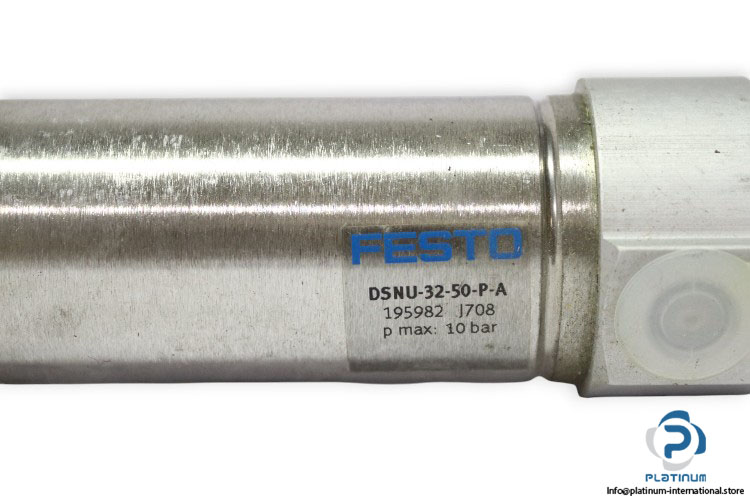

Model: DSNU-32-50-P-A
Part No.: 195982
Ref. Code: J708
Series: DSNU
Technical Information
- Stroke Length: 50 mm
- Piston Diameter: 32 mm
- Piston Rod Thread: M10x1.25
- Pneumatic Connection: G1/8
- Cushioning: Elastic cushioning rings/plates at both ends
- Operating Medium: Compressed Air
- Max. Operating Pressure: 10 bar
- Shape: Circular
- Piston Action: Double-acting
- Material Cover: Wrought aluminum alloy
- Material Seals: NBR, TPE-U(PU)
- Material Piston Rod: High-alloy steel
- Ambient Temperature: -20 to 80 °C
