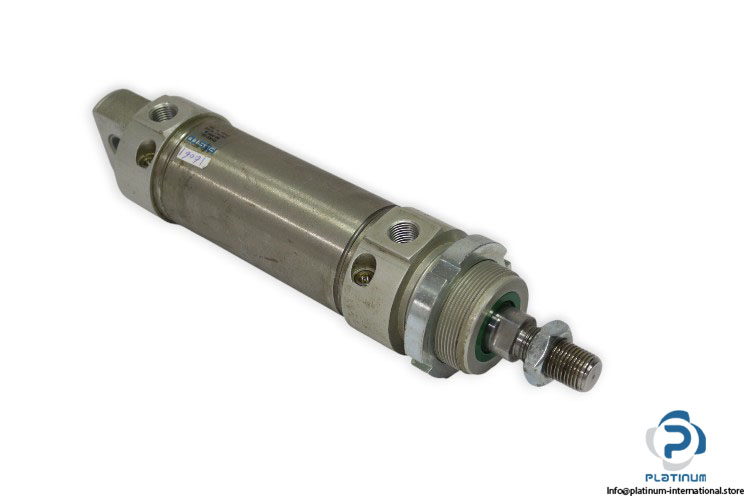

Festo DSNU-50-80-PPV-A Round Cylinder
The Festo DSNU-50-80-PPV-A is a high-performance pneumatic round cylinder designed for reliable and efficient operation in industrial automation. With a 50 mm bore size, 80 mm stroke length, and robust materials, it delivers precision and durability even in demanding environments. Its adjustable pneumatic cushioning at both ends ensures smooth motion and extended service life.
- Manufacturer: Festo
- Type: Round Cylinder

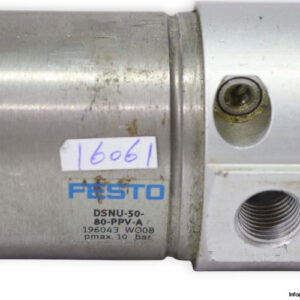

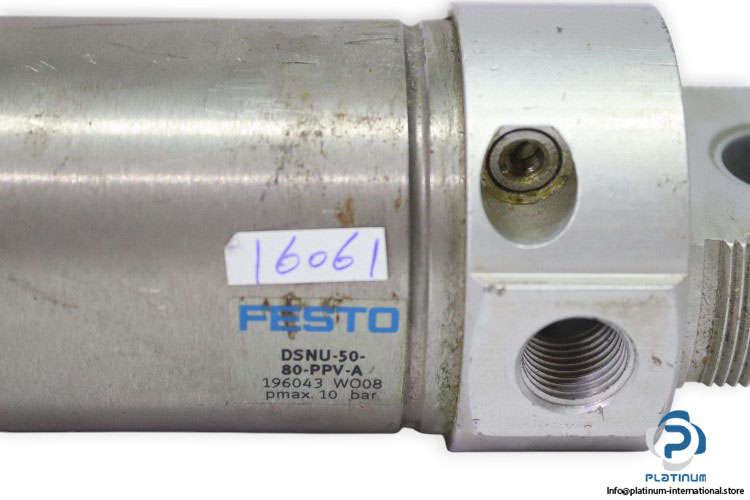

- Model: DSNU-50-80-PPV-A
- Part No.: 196043
- Code: WO08
- Series: DSNU
Technical Information
- Media: Compressed Air
- Pressure Rating: Max. 10 bar
- Bore Size: 50 mm
- Stroke Length: 80 mm
- Bore x Stroke: 50×80 mm
- Cushioning: Pneumatic cushioning, adjustable at both ends
- Mode of Operation: Double
- Shape: Circular
- Ambient Temperature: -20 °C to 80 °C
- Material Cover: Wrought aluminum alloy
- Material Seals: NBR, TPE-U(PU)
- Material Piston Rod: High-alloy steel
- Material Cylinder Barrel: High-alloy stainless steel
- Connection: G1/4
