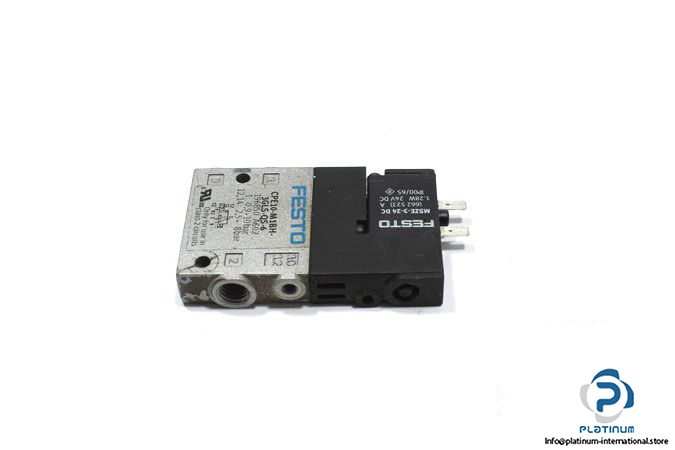

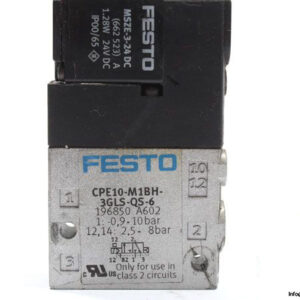

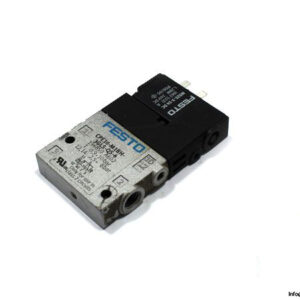

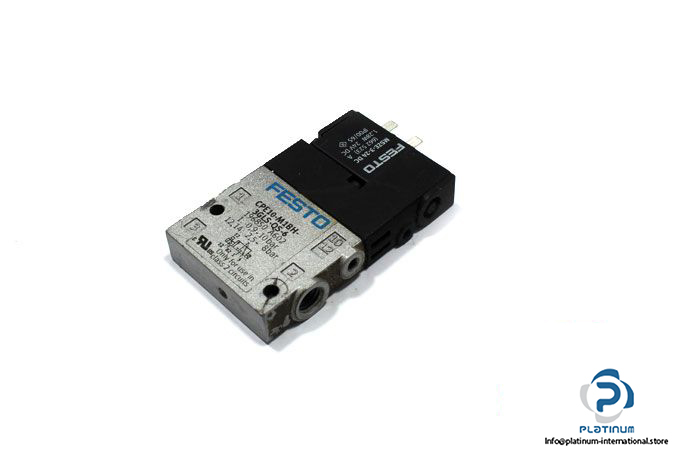

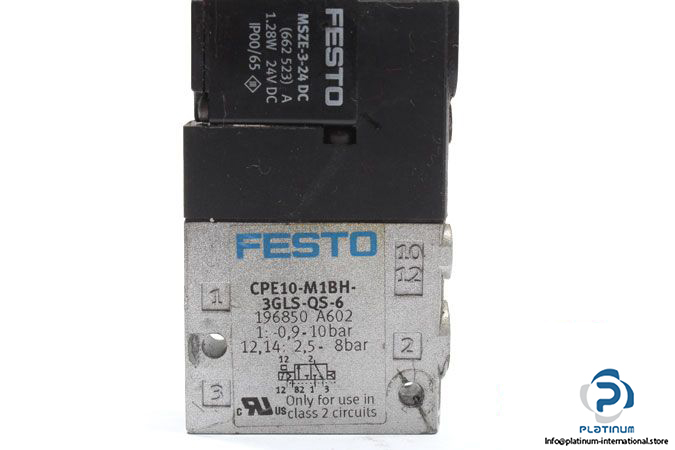

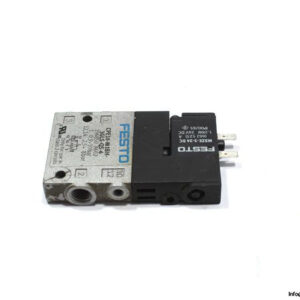

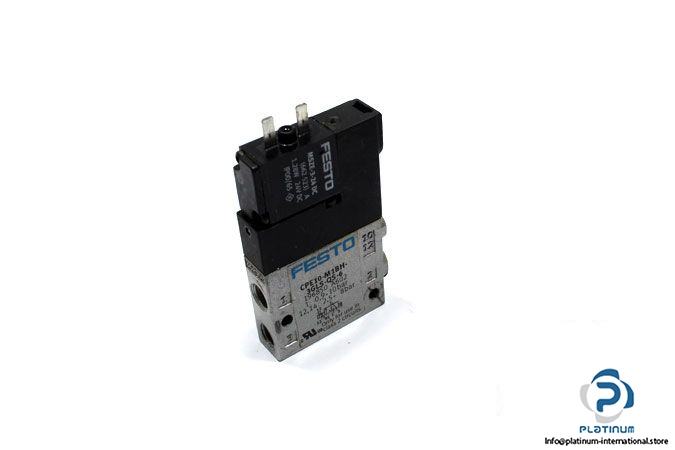

FESTO CPE10-M1BH-3GLS-QS-6 SINGLE SOLENOID VALVE WITH COIL

The FESTO CPE10-M1BH-3GLS-QS-6 is a high-performance single solenoid valve designed for precise air control in automated systems. This monostable 3/2-way valve features a compact piston gate design and is paired with the MSZE-3-24 D solenoid coil for efficient electrical actuation.

Manufacturer: FESTO
Type: Single Solenoid Valve
Model: CPE10-M1BH-3GLS-QS-6
Part No.: 196850

Technical Information

• Fluid: Air
• Design: Piston gate valve
• Function: 3/2-way, closed, monostable
• Type of Actuation: Electrically
• Operating Pressure: -0.9 to 10 bar
• Pilot Pressure: 2.5 to 8 bar
• Nominal Flow Rate: 300 l/min
• Pneumatic Connection: QS-6
• Material: Die-cast aluminum
• Ambient Temperature: -5 to 50 °C

Solenoid Coil Attachment

Manufacturer: FESTO
Type: Solenoid Coil
Model: MSZE-3-24 D
Part No.: 662523

Coil Technical Information

• Supply Voltage: 24 V DC
• Power Consumption: 1.28 W
• Protection Class: IP00 / IP65
