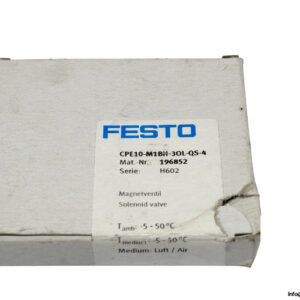

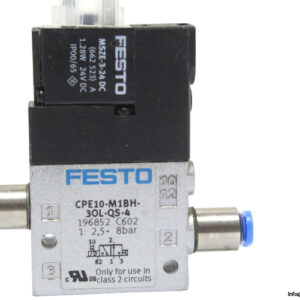

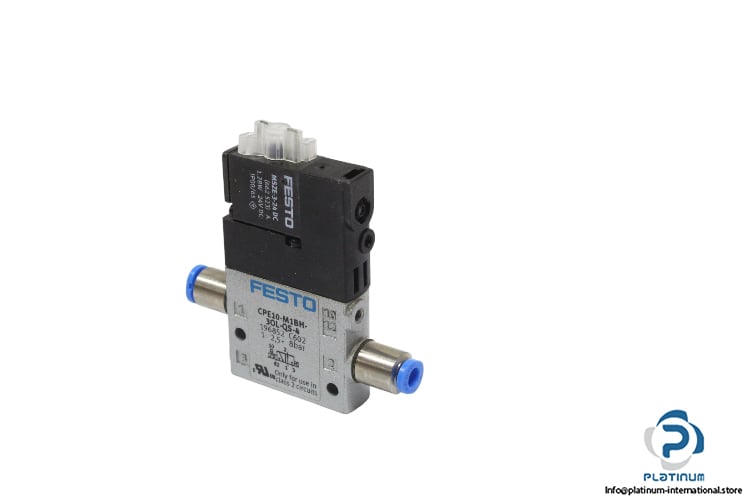

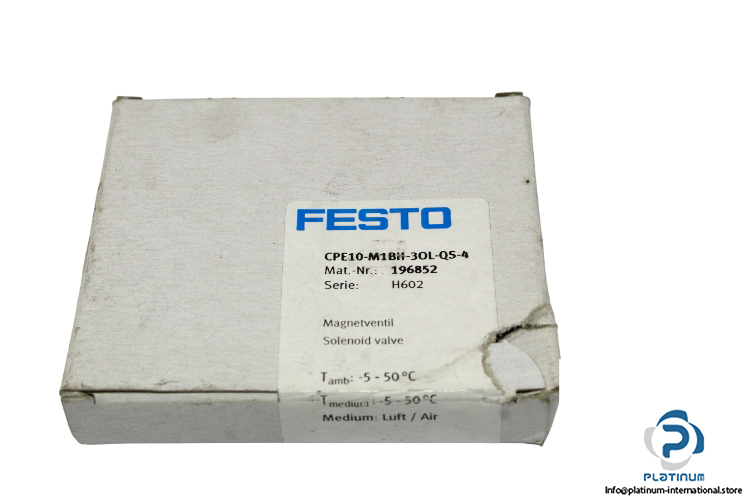

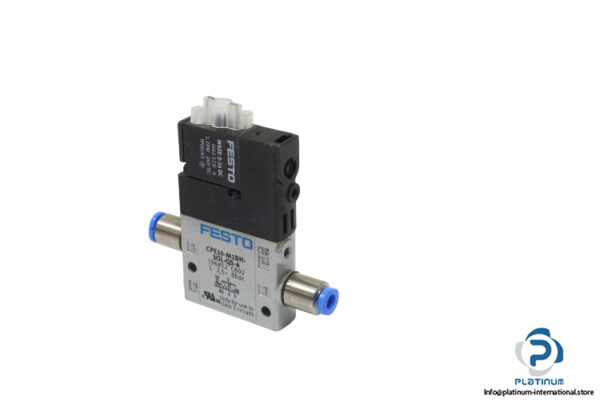

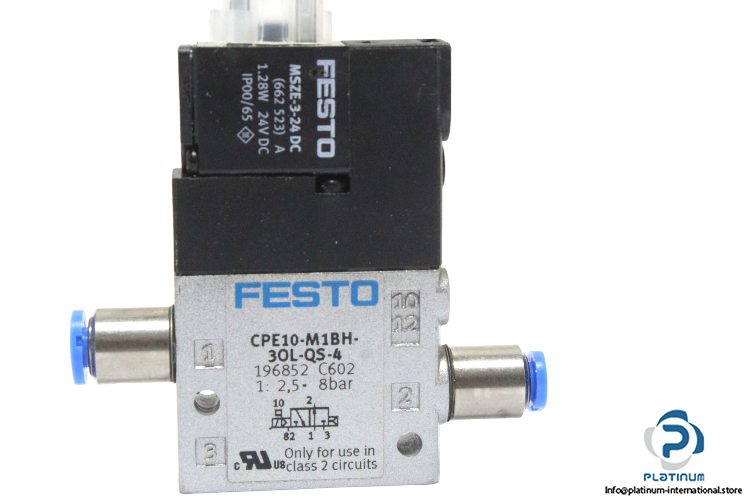

FESTO CPE10-M1BH-3OL-QS-4 SINGLE SOLENOID VALVE WITH COIL

The FESTO CPE10-M1BH-3OL-QS-4 is a high-performance single solenoid valve designed for precise pneumatic control. It features a 3/2 open configuration with electric actuation, delivering efficient operation and a compact form factor. Comes with the FESTO MSZE-3-24DC solenoid coil for dependable switching and durability in demanding applications.

Manufacturer: FESTO
Type: Single Solenoid Valve
Model: CPE10-M1BH-3OL-QS-4
Part No.: 196852

Technical Information

• Fluid: Air
• Valve Function: 3/2 open, single solenoid
• Type of Actuation: Electrically
• Working Pressure: 2.5 / 8 bar
• Flow Rate: 190 l/min
• Pneumatic Connection: QS-4
• Ambient Temperature: -5 / 50 °C

Solenoid Coil Attachment: FESTO MSZE-3-24DC

Manufacturer: FESTO
Type: Solenoid Coil
Model: MSZE-3-24DC
Part No.: 662523

Coil Technical Information

• Supply Voltage: 24 V DC
• Power Consumption: 1.28 W
• Protection Class: IP00 / IP65
