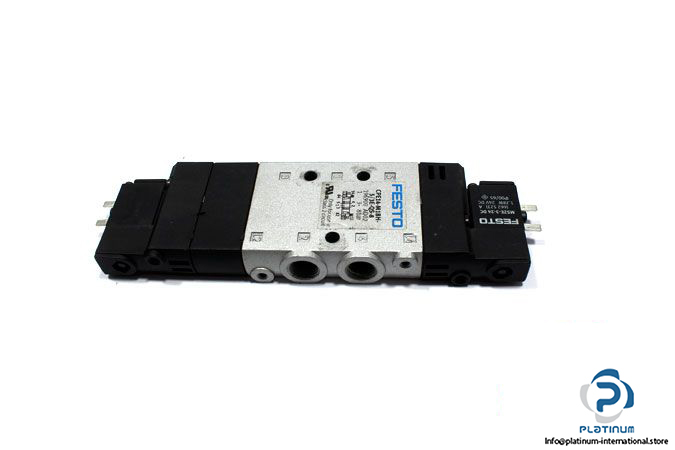

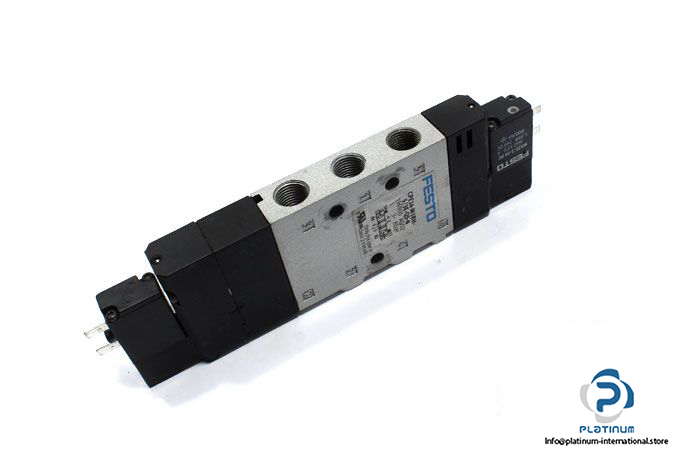

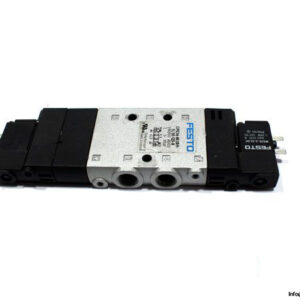

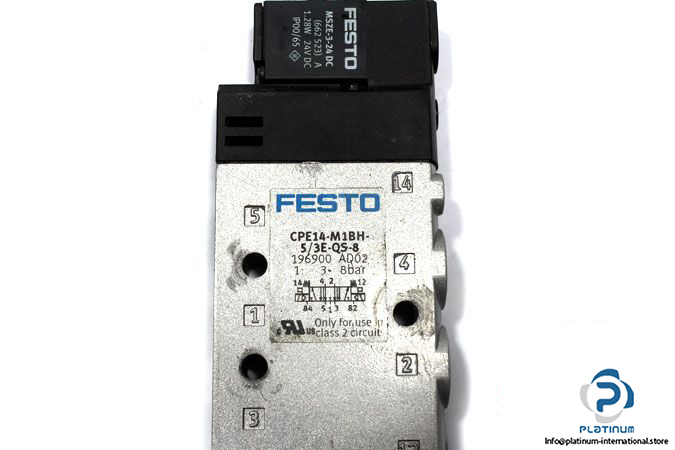

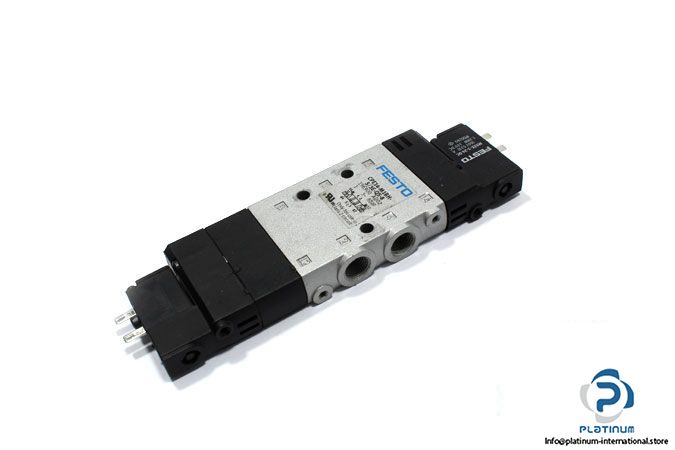

FESTO CPE14-M1BH-5/3E-QS-8 DOUBLE SOLENOID VALVE WITH COIL

The FESTO CPE14-M1BH-5/3E-QS-8 is a high-performance double solenoid valve designed for precise pneumatic control in industrial automation. Featuring a 5/3 exhausted function and robust piston gate design, this valve offers consistent reliability with a compact footprint.

Manufacturer: FESTO
Type: Double Solenoid Valve
Model: CPE14-M1BH-5/3E-QS-8
Part No.: 196900

Technical Information

• Fluid: Air
• Design: Piston gate valve
• Function: 5/3 exhausted
• Type of Actuation: Electrically
• Operating Pressure: 3 … 8 bar
• Nominal Flow Rate: 570 l/min
• Pneumatic Connection: QS-8
• Material: Die-cast aluminum
• Ambient Temperature: -5 / 50 °C

Attachment: FESTO MSZE-3-24 D SOLENOID COIL

Manufacturer: FESTO
Type: Solenoid Coil
Model: MSZE-3-24 D
Part No.: 662523

Coil Technical Information

• Supply Voltage: 24 V DC
• Power Consumption: 1.28 W
• Protection Class: IP00 / IP65
