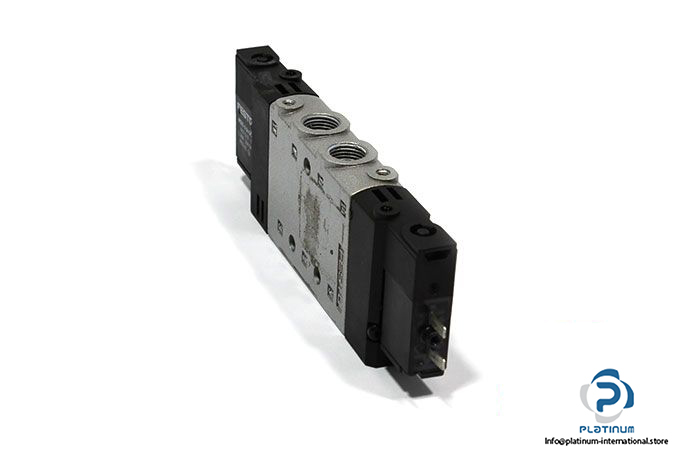

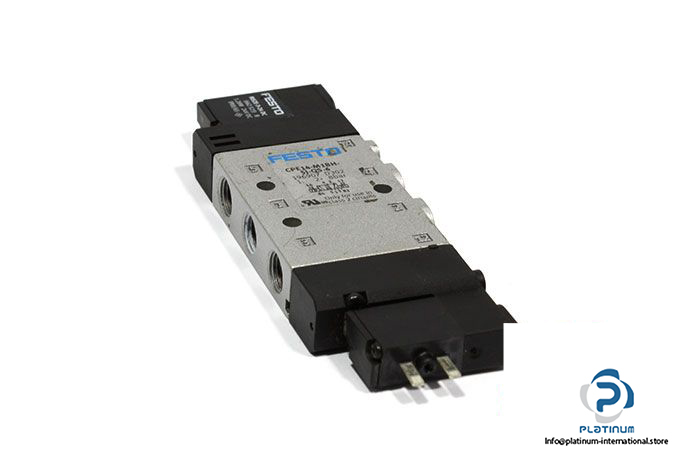

FESTO CPE14-M1BH-5J-QS-6 DOUBLE SOLENOID VALVE WITH MSZE-3-24DC COIL
The FESTO CPE14-M1BH-5J-QS-6 is a high-performance 5/2 double solenoid valve engineered for precision air flow control in industrial automation. Designed with a piston gate mechanism, it ensures durability and efficiency. Supplied with the FESTO MSZE-3-24DC solenoid coil, this setup guarantees reliable operation in demanding environments.
Manufacturer: FESTO
Type: Double Solenoid Valve

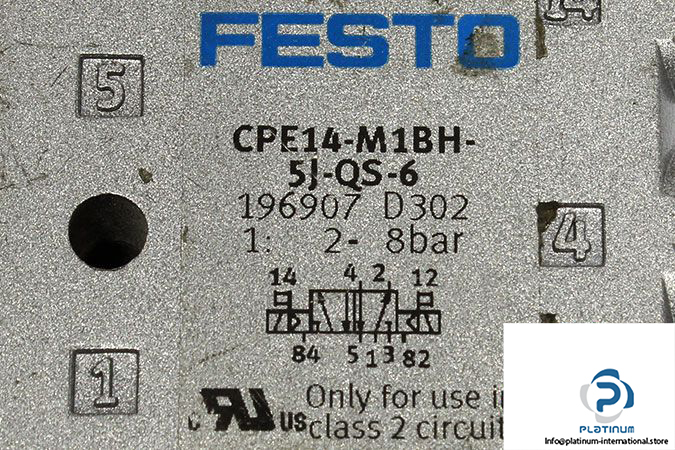

Model: CPE14-M1BH-5J-QS-6
Part No.: 196907
Technical Information
- Fluid: Air
- Design: Piston Gate Valve
- Valve Function: 5/2 Double Solenoid
- Type of Actuation: Electrically
- Working Pressure: 2 / 8 bar
- Flow Rate: 400 l/min
- Material: Die-cast Aluminium
- Pneumatic Connection: QS-6
- Ambient Temperature: -5 / 50 °C

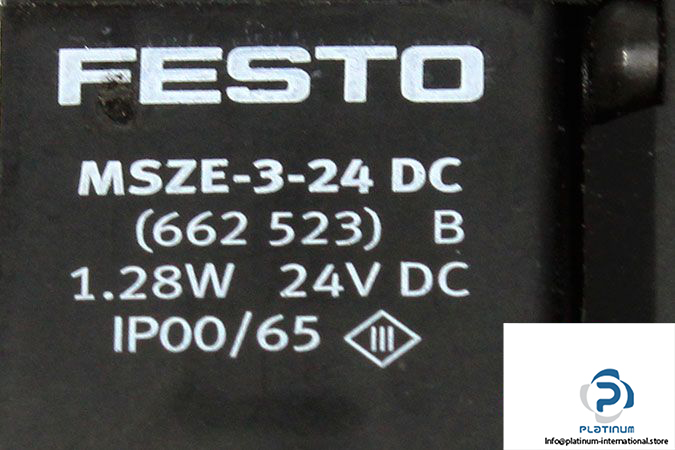

Attachment: FESTO MSZE-3-24DC SOLENOID COIL
Manufacturer: FESTO
Type: Solenoid Coil
Model: MSZE-3-24DC
Part No.: 662523
Coil Technical Information
- Supply Voltage: 24 V DC
- Power Consumption: 1.28 W
- Protection Class: IP00 / IP65
