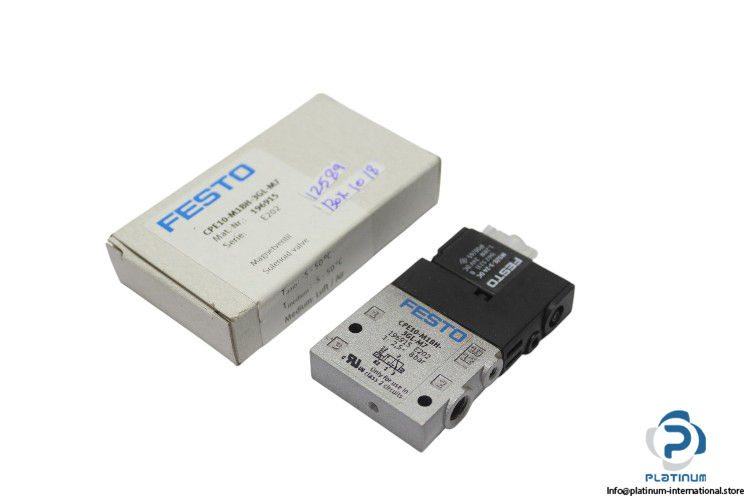

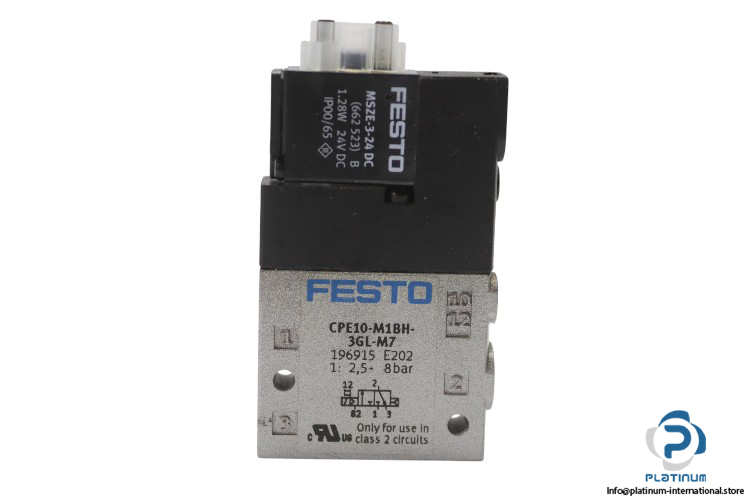

Festo CPE10-M1BH-3GL-M7 “ Solenoid Valve
The Festo CPE10-M1BH-3GL-M7 solenoid valve is a high-performance valve designed for precise control in pneumatic systems. With a 3/2 way valve function and electrical actuation, it offers reliable operation for compressed air systems in various industrial applications.
- Manufacturer: Festo
- Type: Solenoid Valve
- Model: CPE10-M1BH-3GL-M7
- Part No: 196915
Technical Information:
- Fluid: Compressed air
- Valve Function: 3/2 way, Closed
- Type of Actuation: Electrical
- Flow Rate: 400 l/m
- Operating Voltage: 24 V DC
- Operating Pressure: 2.5 to 8 bar
- Pneumatic Connection: M7
- Electrical Connection: 2-pin
- Ambient Temperature: -5 to 50°C
- Degree of Protection: IP65
- Material Seals: NBR
- Material Housing: Die-cast aluminum
