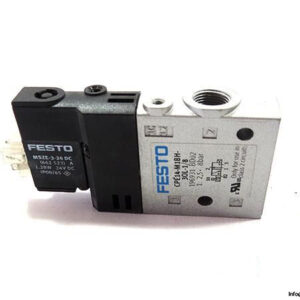

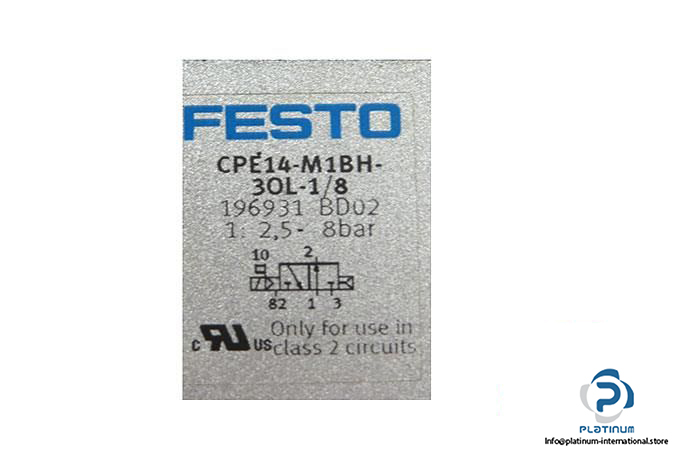

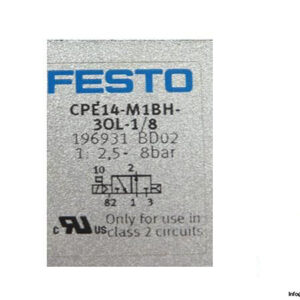

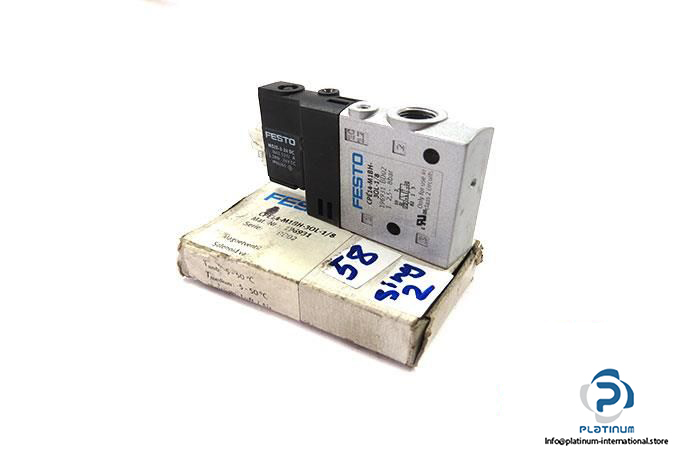

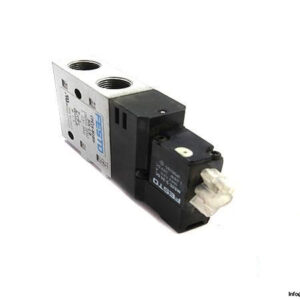

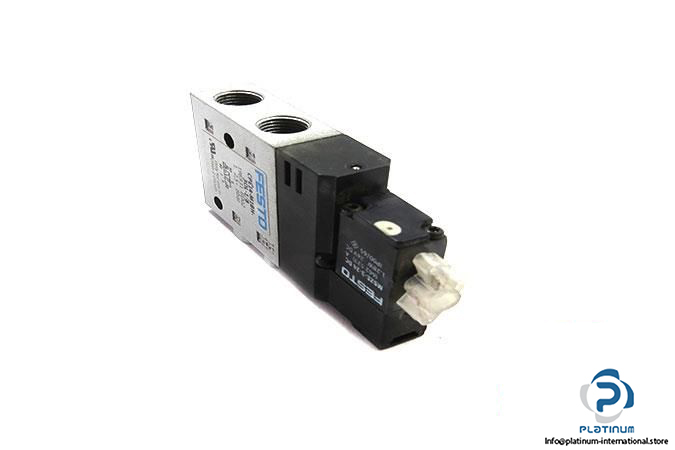

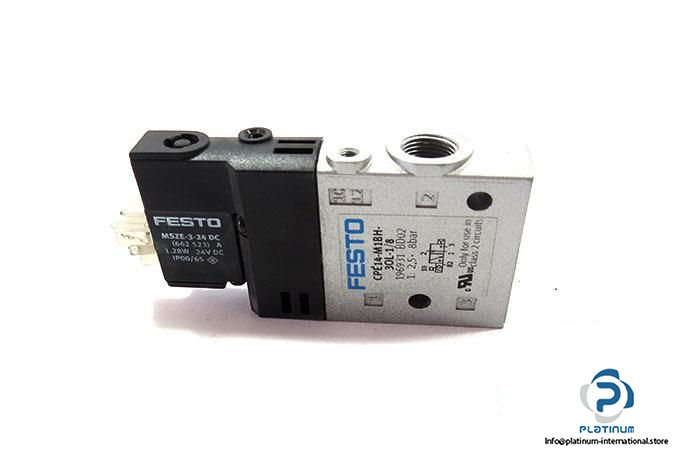

FESTO CPE14-M1BH-3OL-1/8 AIR SOLENOID VALVE WITH COIL

The FESTO CPE14-M1BH-3OL-1/8 is a high-performance air solenoid valve designed for efficient and reliable pneumatic control. Featuring a piston seat design and monostable 3/2 valve function, this unit ensures fast and accurate flow switching. Paired with the FESTO MSZE-3-24 DC coil, it delivers precise electrical actuation for industrial automation applications.

Manufacturer: FESTO
Type: Air Solenoid Valve
Model: CPE14-M1BH-3OL-1/8
Part No.: 196931

Technical Information

• Fluid: Air
• Design: Piston seat
• Valve Function: 3/2 open, monostable
• Type of Actuation: Electrically
• Medium Pressure: 2.5 … 8 bar
• Nominal Flow Rate: 900 l/min
• Pneumatic Connection: G1/8
• Material: Die-cast aluminum
• Ambient Temperature: -10 / 60 °C

Attachment: FESTO MSZE-3-24 DC SOLENOID COIL

Manufacturer: FESTO
Type: Solenoid Coil
Model: MSZE-3-24 DC
Part No.: 662523

Coil Technical Information

• Supply Voltage: 24 V DC
• Power Consumption: 1.28 W
• Protection Class: IP00 / IP65
