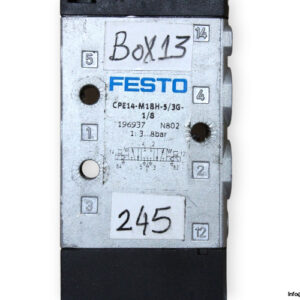

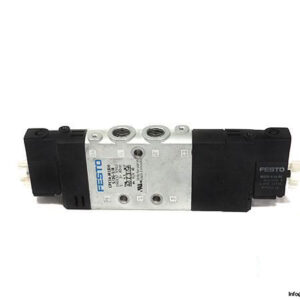

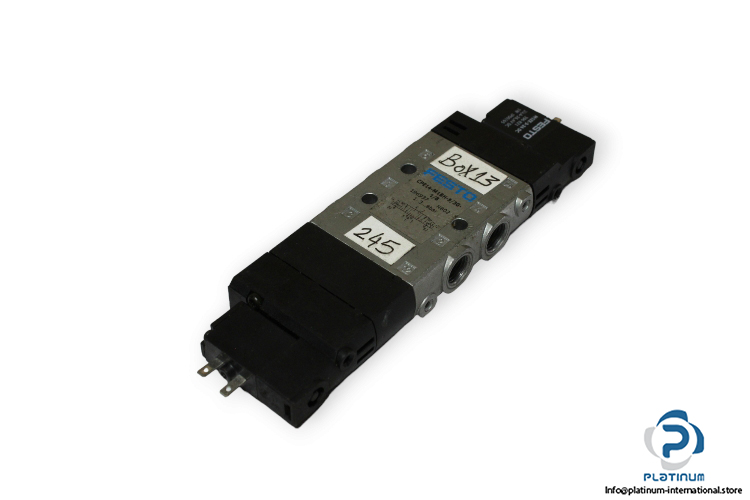

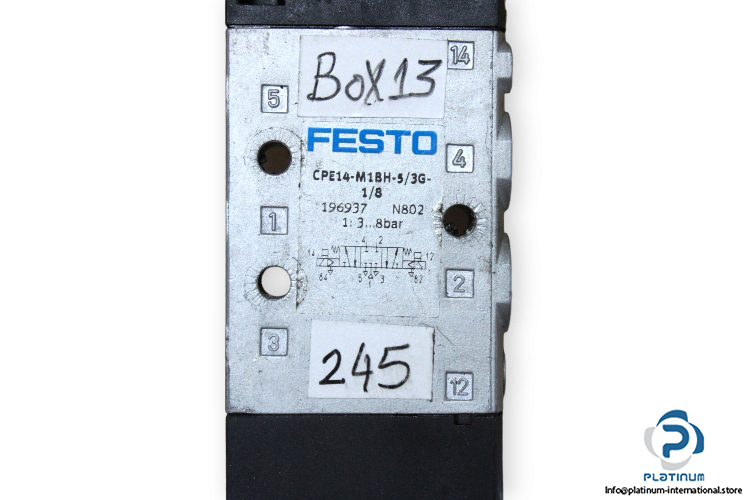

FESTO CPE14-M1BH-5/3G-1/8 DOUBLE SOLENOID VALVE WITH MSZE-3-24DC COIL

The FESTO CPE14-M1BH-5/3G-1/8 is a high-performance double solenoid valve engineered for precision pneumatic control. With 5/3 way function and robust die-cast aluminum body, this unit is suitable for demanding industrial air systems. It includes the FESTO MSZE-3-24DC solenoid coil for dependable electrical actuation.

Manufacturer: FESTO
Type: Double Solenoid Valve
Model: CPE14-M1BH-5/3G-1/8
Part No.: 196937

Technical Information

• Fluid: Air
• Valve Function: 5/3 Way Valve
• Type of Actuation: Electrical
• Working Pressure: 3 / 8 bar
• Flow Rate: 750 l/min
• Pneumatic Connection: G 1/8, Threaded
• Material: Die-cast Aluminium
• Seals: NBR
• Fluid Temperature Range: “5 / 50°C

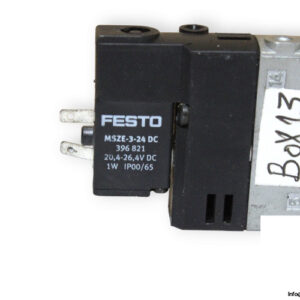

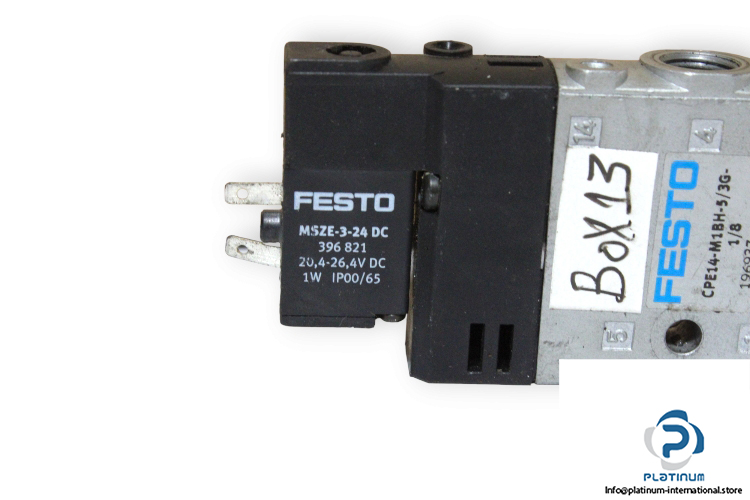

Attachment: FESTO MSZE-3-24DC Solenoid Coil

Manufacturer: FESTO
Type: Solenoid Coil
Model: MSZE-3-24DC
Part No.: 396821

Coil Technical Information

• Supply Voltage: 20.4 … 26.4 V DC
• Power: 1 W
• Protection Class: IP00 / IP65
