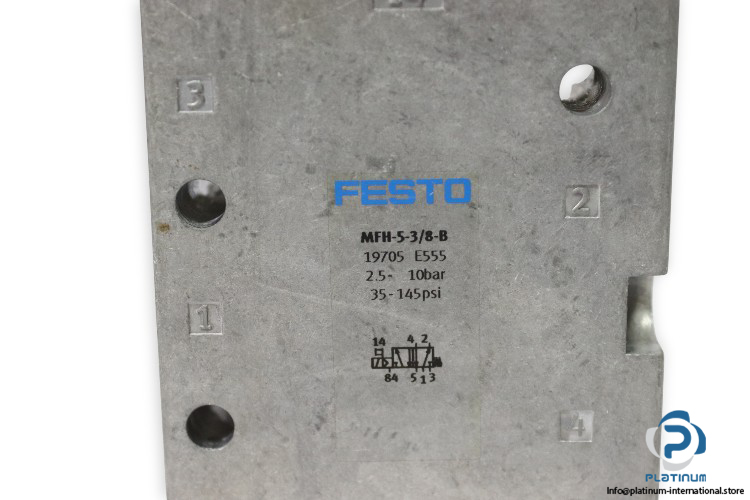

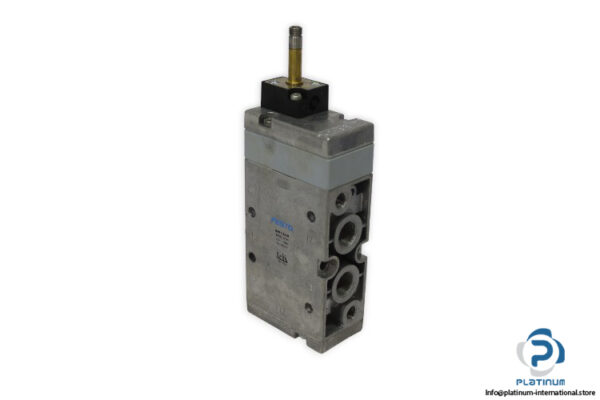

FESTO MFH-5-3/8-B Solenoid Valve
The FESTO MFH-5-3/8-B Solenoid Valve is a high-quality pneumatic valve designed for reliable and efficient air control in automation systems. With a robust die-cast aluminium body, mechanical spring reset, and high flow rate, it provides consistent performance in industrial environments.
Manufacturer: FESTO
Type: Solenoid Valve
Model: MFH-5-3/8-B
Part Number: 19705
Series: E555
Technical Information
- Valve Function: 5 by 2 way, monostable
- Standard Nominal Flow Rate: 2000 liters per minute (DIN 1343)
- Pneumatic Connection, Port 1: G3 by 8
- Type of Actuation: Electric
- Construction Width: 40 millimeters
- Operating Pressure: 2.5 bar to 10 bar
- Design: Piston gate valve
- Type of Reset: Mechanical spring
- Nominal Size: 12 millimeters
- Grid Dimension: 41 millimeters
- Exhaust Air Function: With flow control option
- Material Seals: NBR
- Material Housing: Die cast aluminium
- Ambient Temperature: minus 5 to 40 degree Celsius
- Port Size: G3 by 8
