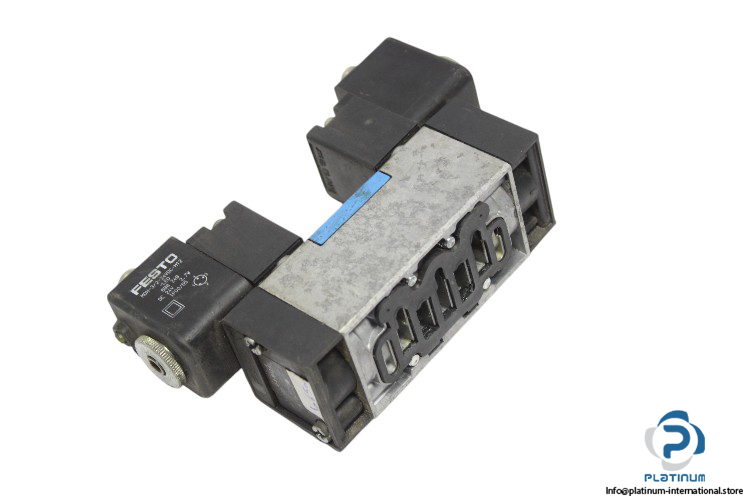

FESTO AIR SOLENOID VALVE

The FESTO Air Solenoid Valve (Model: MDH-5/3E-D-1-M12-C, Part No. 197126) is designed for efficient control of air flow in industrial applications. With an electrical actuation mechanism, this valve provides reliable performance with a standard nominal flow rate of 1200 l/min and an operating pressure range of 3 to 10 bar. It is ideal for use in pneumatic systems requiring precise control of air pressure and flow.

Manufacturer: FESTO

Type: Air Solenoid Valve

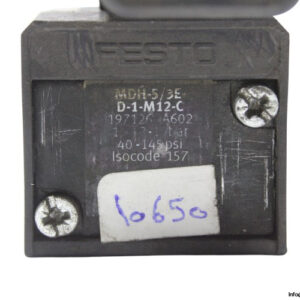

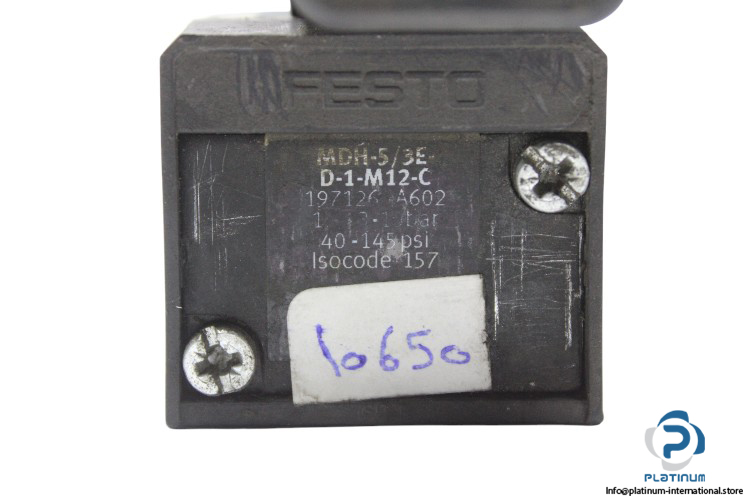

Model: MDH-5/3E-D-1-M12-C

Part No.: 197126

Technical Specifications

• Type of Actuation: Electrical
• Width: 42 mm
• Standard Nominal Flow Rate: 1200 l/min
• Operating Pressure: 3 … 10 bar
• Fluid: Air
• Ambient Temperature: -10 °C to 50 °C
• Port Size: Sub-based
• Attached with: FESTO 688249 Air Solenoid Valve

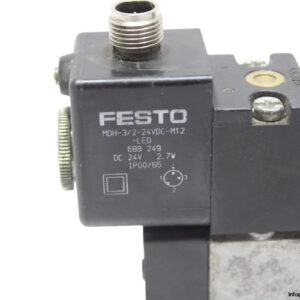

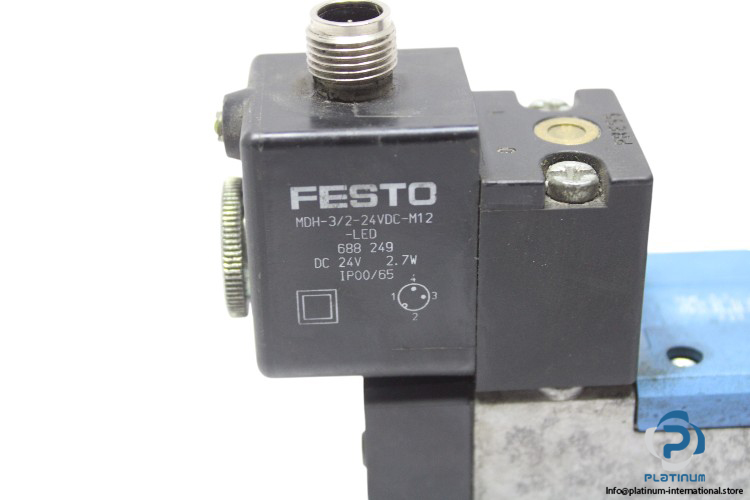

FESTO 688249 Air Solenoid Valve

• Model: MDH-3/2-24VDC-M12
• Part No.: 688249
• Voltage: 24 VDC
• Power: 2.7 W
