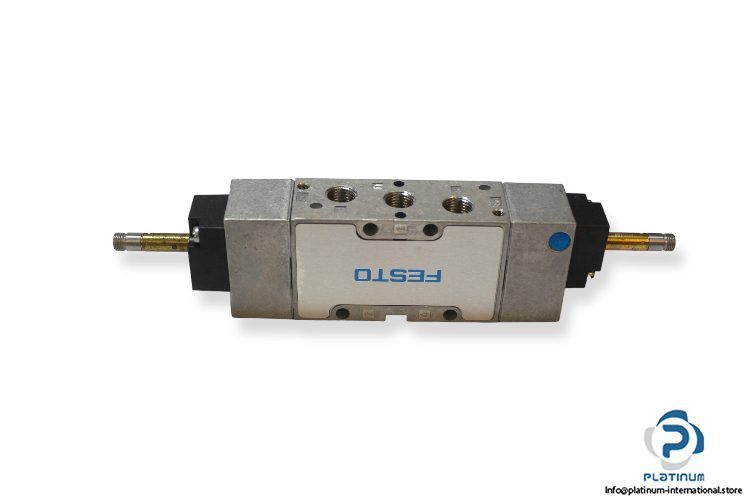

FESTO MFH-5/3G-1/4-B DOUBLE SOLENOID VALVE
The FESTO MFH-5/3G-1/4-B is a robust and high-performance double solenoid valve engineered for reliable pneumatic control. Designed with a piston gate mechanism, it features a 5/3 closed-center function and supports a wide operating pressure range, making it ideal for various industrial automation applications.
Manufacturer: FESTO
Type: Double Solenoid Valve

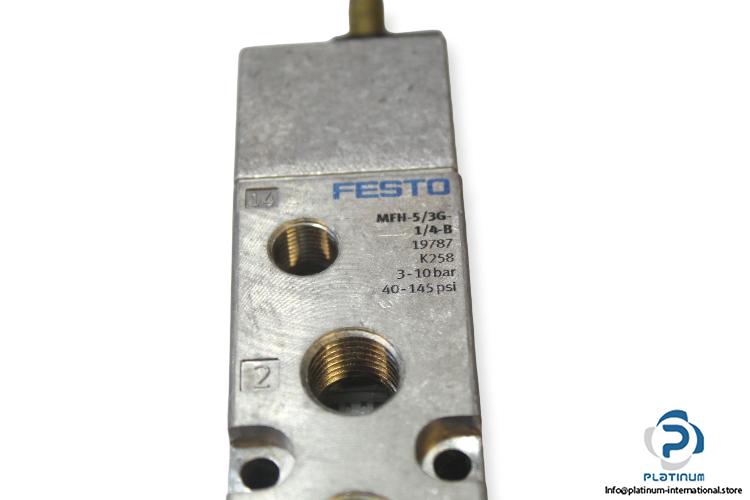

Model: MFH-5/3G-1/4-B
Part No.: 19787
Technical Information
- Fluid: Air
- Design: Piston gate valve

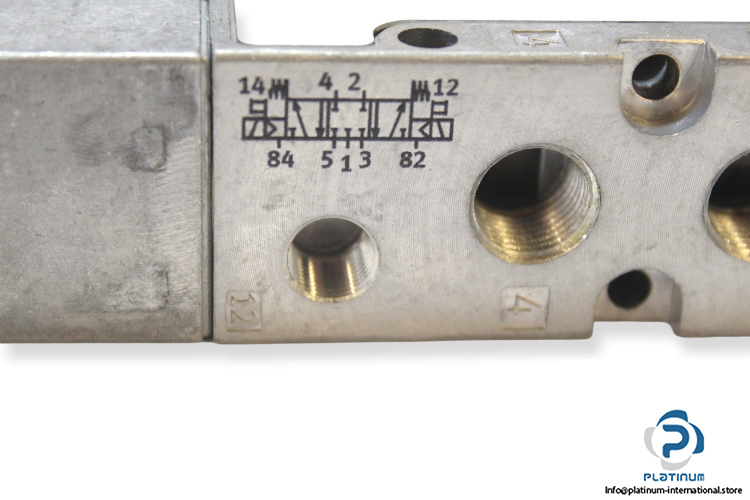

- Function: 5/3 closed
- Type of Actuation: Electrically
- Operating Pressure: 0 … 10 bar
- Nominal Flow Rate: 1600 l/min
- Pneumatic Connection: G1/4
- Material: Die-cast aluminum
- Ambient Temperature: 5 / 40 °C
