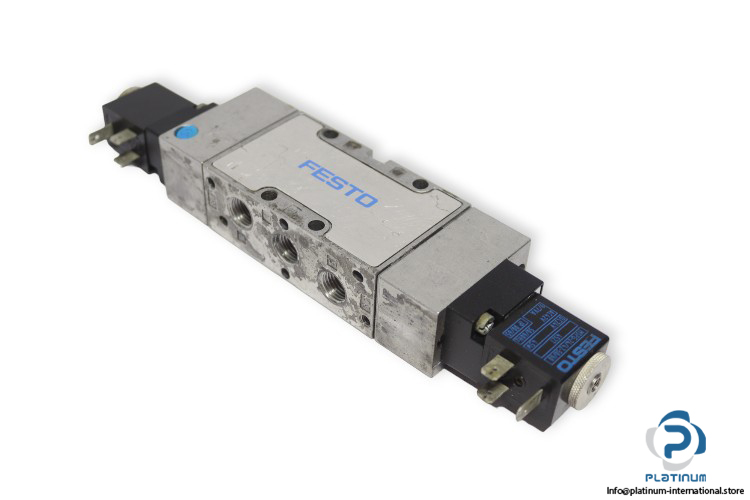

FESTO MFH-5/3G-1/4-B DOUBLE SOLENOID VALVE WITH MSFG COIL
The FESTO MFH-5/3G-1/4-B is a high-performance double solenoid valve engineered for reliable and precise air flow control in industrial automation systems. Its robust piston gate design, 5/3 closed function, and compact build make it suitable for dynamic environments. Comes complete with the FESTO MSFG-24/42-50/60 solenoid coil for efficient electrical actuation.
Manufacturer: FESTO
Type: Double Solenoid Valve

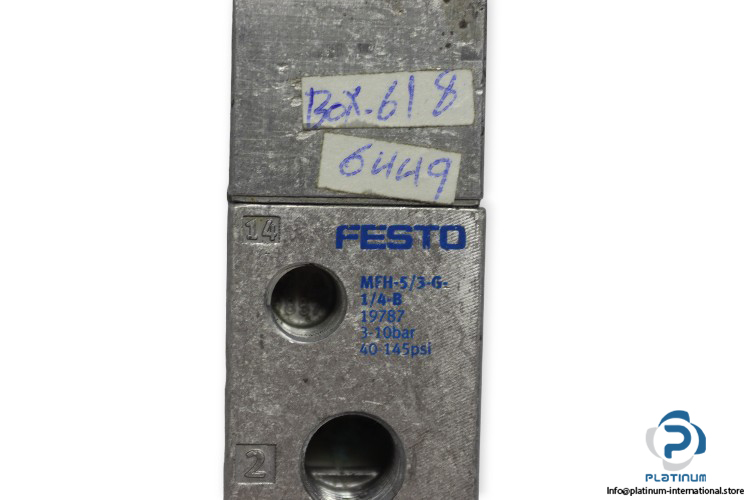

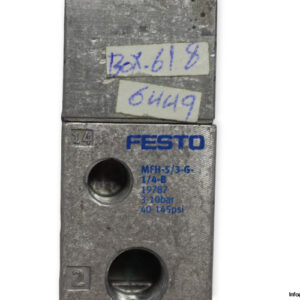

Model: MFH-5/3G-1/4-B
Part No.: 19787
Technical Information
- Fluid: Air
- Design: Piston gate valve

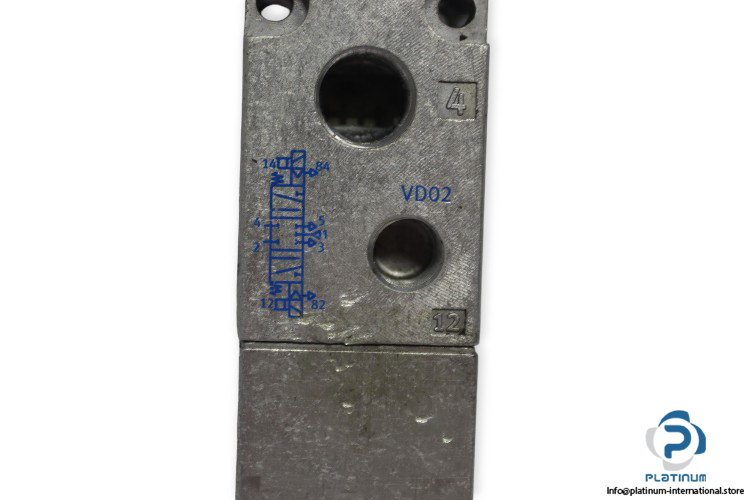

- Function: 5/3 closed
- Type of Actuation: Electrically
- Operating Pressure: 0 … 10 bar
- Nominal Flow Rate: 1600 l/min
- Pneumatic Connection: G1/4
- Material: Die-cast aluminum
- Ambient Temperature: 5 / 40 °C

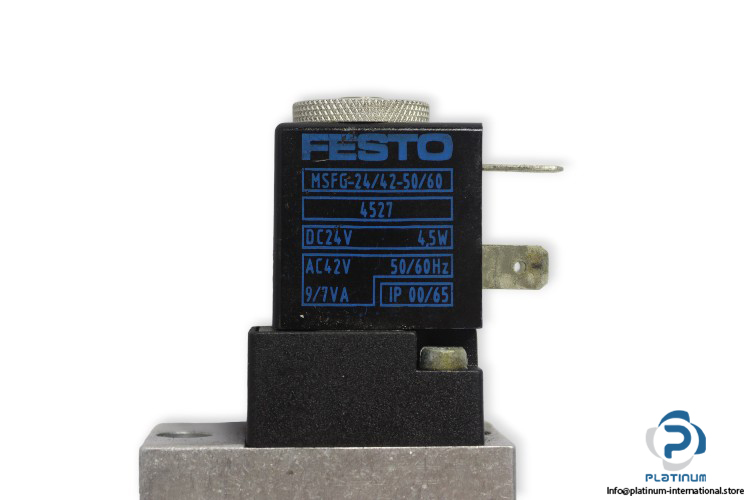

Attachment: FESTO MSFG-24/42-50/60 SOLENOID COIL
Manufacturer: FESTO
Type: Solenoid Coil
Model: MSFG-24/42-50/60
Part No.: 4527
Coil Technical Information
- Supply Voltage: 24 V DC, 42 V AC
- Frequency: 50 … 60 Hz
- Power Consumption: 4.5 W / 9 VA / 7 VA
- Protection Class: IP00 / IP65
